1620nm 3dB ST UPC Multimode Fiber Optic Attenuator with 250mW Power for Equipment

Brand Name:	New Light
Model Number:	LC002
MOQ:	10
Price:	1~30
Packaging Details:	10pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Green / Red

Connector:

SC LC

Polish:

UPC / APC

Mode:

Single Mode

Attenuator:

Material:

Plastic

Supply Ability:

10000/month

Highlight:

ST UPC Multimode Fiber Attenuator

1620nm Multimode Fiber Attenuator

250mW Variable Fiber Attenuator

Product Description

1620nm 3dB ST UPC Multimode Fiber Attenuator 250mW

3dB ST Fixed Fiber Optic Attenuator Male to Female for equipment applications requiring precise optical power management.

Product Overview

As optical passive devices, fiber optic attenuators are primarily used for debugging optical power performance, calibrating optical instruments, and attenuating fiber signals to maintain stable and desired power levels in transmission links without altering the original waveform.

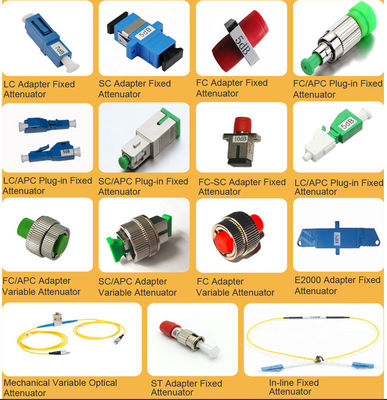

Fixed optical attenuators reduce optical power to specific levels in fiber optic links. The female-to-male plug type attenuator features ceramic ferrules and is available in various connector types. Fixed value attenuators provide consistent power reduction, while variable attenuators offer adjustable ranges. Attenuation fiber patch cables serve similar inline functions.

Contact via WhatsApp: 008613534063703

Key Features

Low insertion loss and back reflection loss
High precision mechanical dimensions
Compliant with Telcordia GR-326-Core, IEC, TIA standards
RoHS compliant

Technical Specifications

Standard Configuration

Parameter	Specification
Attenuation Value	PC 0dB to 20dB (1dB step), APC 25dB
Operating Wavelength	1260nm~1620nm
Return Loss	SPC≥40dB, UPC≥50dB, APC≥60dB
Attenuation Tolerance	0dB~10dB ±1.0dB, 11dB~25dB ±1.5dB
Maximum Power Capability	250mW
Operating Temperature	-40℃~+75℃

Extended Specifications

Parameter	Specification
Attenuation Value	0dB to 30dB
Operating Wavelength	SM:1260nm~1620nm, MM:850/1300nm (Customer ordered)
Return Loss	UPC≥50dB, APC≥60dB
Polarization Loss	≤0.2dB
Attenuation Tolerance	0dB~9dB:0.5dB, 10~30dB:10% of attenuation value
Maximum Power Capability	250mW
Operating Temperature	-40°C~+85°C
Storage Temperature	-40°C~+85°C

Note: Custom configurations available upon request

Applications

Power management in optical networks
Wavelength division multiplexing (WDM) system channel balancing
Erbium Doped Fiber Amplifiers (EDFA)
Optical add-drop multiplexers (OADM)
Receiver protection
Test equipment
Compensation of different connector attenuation

Frequently Asked Questions

Are you the real factory?

Yes, we are the actual manufacturer with 16 years of industry experience.

What is your fiber brand?

Fiber brands include YOFC and FiberHome.

What are your main products?

Fiber optic patch panels, fiber MPO & MTP cassettes, MPO & MTP cables, outdoor fiber optic cables, indoor fiber optic cables, FTTH drop cables, ADSS cables, indoor armored patch cords, and optical patch cords (SC, LC, FC, ST, MTP, MPO).

What is your product quality guarantee period?

20-year guarantee for fiber optic cables.

Do you have certificates for raw materials?

We maintain long-term relationships with ISO9001 and RoHS certified raw material suppliers.

What is your delivery time?

Within 48 hours for standard fiber optic products.

What is your minimum order quantity (MOQ)?

MOQ for Fiber Optic Cable Patch Panel: 10 sets. No MOQ required for fiber optic patch cords as we maintain stock for standard types.

Do you have distributors in other countries?

Currently, we sell directly to customers and offer factory pricing.

What payment methods do you accept?

For large orders: T/T. For small orders: T/T and PayPal are acceptable.

What are your shipping and delivery options?

For large orders: by sea (LCL or FCL). For small orders: by sea (LCL), air, or courier services - all options available.
