MPO Cassette Module

24F Elite MPO Cassette Module LGX Type B Multimode Fiber Optic Cassette

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

24F Elite MPO Cassette Module LGX Type B Multimode Fiber Optic Cassette

Brand Name:	New light
Model Number:	24 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Connector:

MPO/MTP

Connector Type:

MPO SC

Operating Temperature:

-40℃ ~ +80℃,40~+85

Insertion Loss:

Standard Loss And Elite

Type:

Multimode

Warranty:

1 Years

Material:

Plastics And Aluminum Alloy

Wavelength:

850nm/1310nm/1550nm

Capacity:

SC Max 12core/LC Max 24core

Supply Ability:

10000 per day

Highlight:

MPO SC Fiber Optic Cassette

24F Elite Fiber Optic Cassette

PBT LGX MTP MPO Cassettes

Product Description

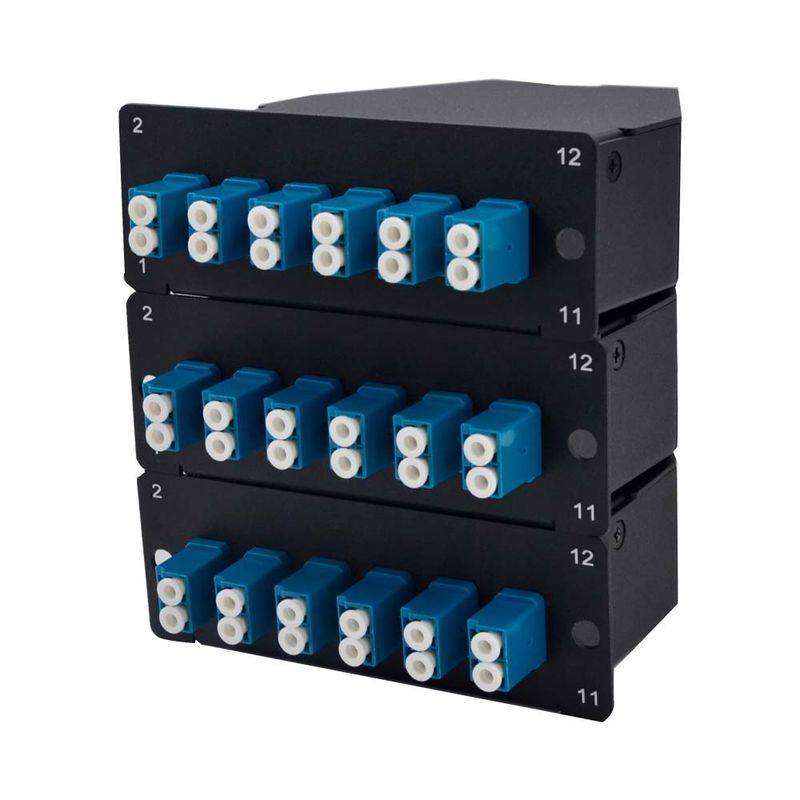

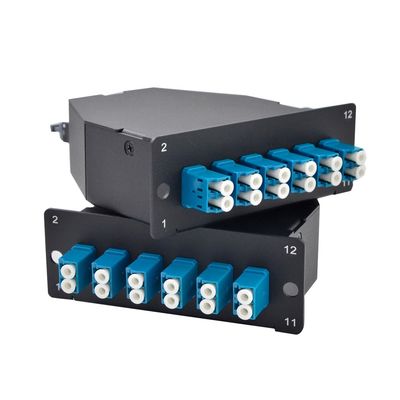

MPO SC 24F Elite Fiber Optic Cassette PBT LGX Type B Multimode

Rack mounted LGX type B 24-fiber Elite MTP/MPO Fiber Cassettes designed for high-density fiber optic network installations.

Product Overview

NEW LIGHT offers a comprehensive range of single mode and multimode MPO/MTP cassettes in 12 and 24 port configurations. These cassettes feature high-quality Corning fiber optic cable and are available in various fiber modes including Single Mode (9/125μm), Multimode OM1 (62.5/125μm), and Multimode OM3 (50/125μm). Multiple connector options include LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors.

Key Features

Rapid network deployment with pre-assembled components for quick installation

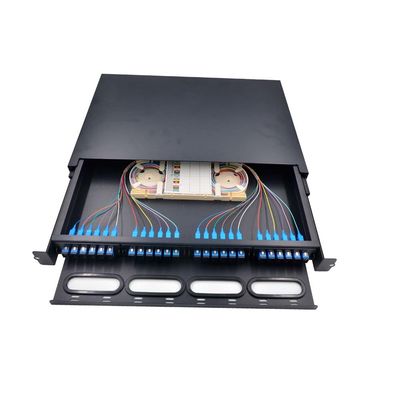

19-inch standard rack structure with sliding tray design
Available in all fiber types and connector configurations
Factory-controlled and tested MTP/MPO-LC fan-outs for optimal performance
Low loss MTP/MPO Elite and LC/SC Premium versions for high-speed networks
High-density modular design supporting up to 96 fibers in 1U space
Plug-and-play modules for fast installation of multiple fiber links
Compliant with Telcordia, EIA/TIA, and IEC standards

MPO Male Adapter Specifications

Material: Polybutylene Terephthalate (PBT)
Color: Black
Mating Cycles: 1000 cycles
Dust Cap: TPR, Black
Insertion Loss: <0.5dB

Cassette Housing Construction

Material: Aluminum Alloy
Surface Finishing: Black Powder Coat

WhatsApp: 008613534063703

Technical Specifications

Fiber Count	12 / 24	Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex	Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down	Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB	Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C	Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38"x4.29"x4.64" (35x109x118 mm)	Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Management

Ensuring proper transmitter-to-receiver matching is critical in any fiber optic installation. Our MTP/MPO cassette modules provide intelligent solutions for managing and optimizing network connectivity and polarity.
