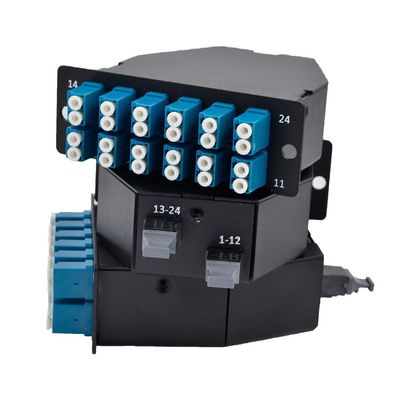

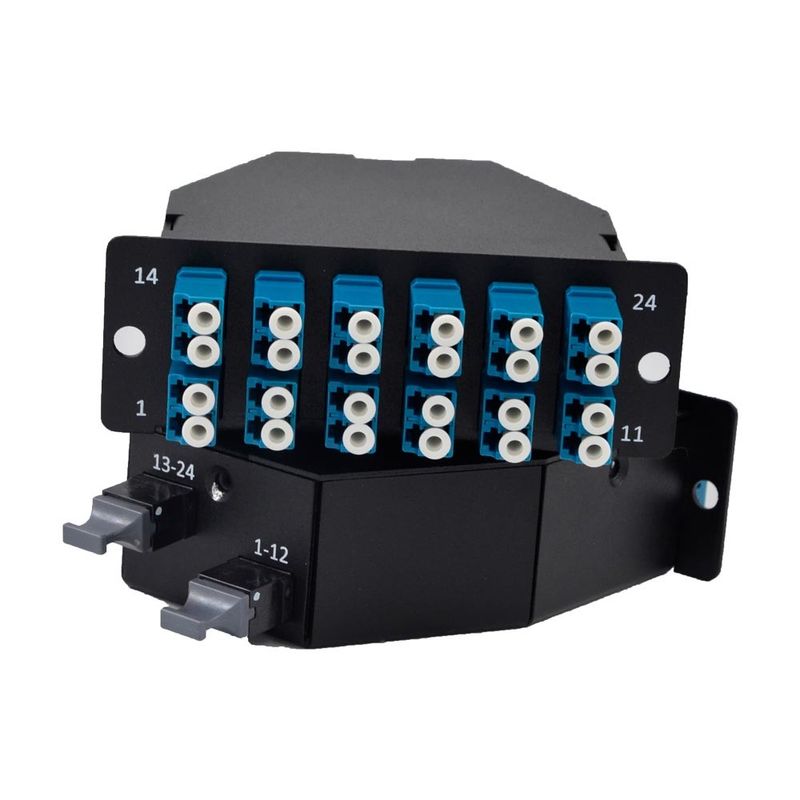

Low Loss 24 Fiber Array Elite MTP Cassette Module for High-Density Fiber Management

Brand Name: New light
Model Number: 24 port MPO
MOQ: 1~10000
Price: 5~100
Packaging Details: opp bag+Carton box
Payment Terms: T/T,Western Union,MoneyGram,Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS ;ISO9001
Connector:
MPO/MTP
Connector Type:
MPO/SC
Operating Temperature:
-40℃ ~ +80℃,40~+85
Insertion Loss:
Standard Loss And Elite
Type:
Multi-mode
Warranty:
1 Years
Material:
Plastics And Aluminum Alloy
Wavelength:
850nm/1310nm/1550nm
Capacity:
SC Max 12core/LC Max 24core
Supply Ability:
10000 per day
Highlight:

24f Array MPO Cassette Module

,

SM MM MPO Cassette Module

,

MPO MTP Fanout Cassette Module

Product Description
Low Loss SM MM 24f Array MPO Cassette Module Elite MTP
Product Overview
The Low Loss Single-mode/Multimode 24-fiber array Elite MPO/MTP Fanout Cassette Module provides secure transition between MPO/MTP and LC or SC discrete connectors. This high-performance solution enables efficient deployment of up to 24 LC or 12 SC fiber ports in a single module, designed for mounting in 1U or 4U 19" multislot chassis.
Key Features
  • High-density, compact design for space optimization
  • Quick and easy installation process
  • Available in 12, 24, and 48 fiber configurations
  • Field connections with guaranteed quality assurance
  • Simplified fiber routing and management
  • Modular system for easy reconfiguration and upgrades
  • Customizable fiber polarity options
Applications
  • Data Center Infrastructure
  • High Density Fiber Management Systems
  • Telecommunications Networks
  • Broadband and CATV Networks
  • LAN/WAN Premises Infrastructure
MPO Male Adapter Specifications
Material Polybutylene Terephthalate (PBT)
Color Black
Mating Cycles 1000 Mating Cycles
Dust Cap Material TPR
Dust Cap Color Black
Insertion Loss <0.5dB
Cassette Housing Specifications
Material Aluminum Alloy
Surface Finishing Black Powder Coat
Low Loss 24 Fiber Array Elite MTP Cassette Module for High-Density Fiber Management 0 Low Loss 24 Fiber Array Elite MTP Cassette Module for High-Density Fiber Management 1 Low Loss 24 Fiber Array Elite MTP Cassette Module for High-Density Fiber Management 2
Technical Specifications
Fiber Count 12 / 24
Fiber Mode OM3 50/125 μm
Front Connector Type 12 LC UPC Duplex
Rear Connector Type 1x MPO UPC Male (pinned)
MPO Adapter Key up to Key down
Glass Fiber Corning ClearCurve®
Insertion Loss MPO≤0.35 dB, LC≤0.2 dB
Return Loss MPO≥20 dB, LC≥30 dB
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 75°C
Dimensions (HxWxD) 1.38"x4.29"x4.64" (35x109x118 mm)
Application Matching for Type AF Cassette
Contact Us: WhatsApp 008613534063703
Performance Properties
Parameter Multimode Single mode
Front Connector LC/SC duplex LC/SC duplex
Sleeve Material Zirconia Ceramic Zirconia Ceramic
Insertion Loss UPC ≤0.2dB APC ≤0.3dB, UPC ≤0.2dB
Return Loss UPC ≥30dB APC ≥60dB, UPC ≥50dB
Polarity & MTP/MPO Compatibility
The MTP® connector, as defined by US Conec, represents a high-performance MPO connector with enhanced optical and mechanical performance compared to generic MPO connectors. MTP® and MPO connectors maintain full compatibility while offering superior engineering.
MTP is a registered brand of US Conec. MTP® connectors are fully compliant with IEC Standard 61754-7 and TIA 604-5 - Type MPO specifications.
Low Loss 24 Fiber Array Elite MTP Cassette Module for High-Density Fiber Management 3
