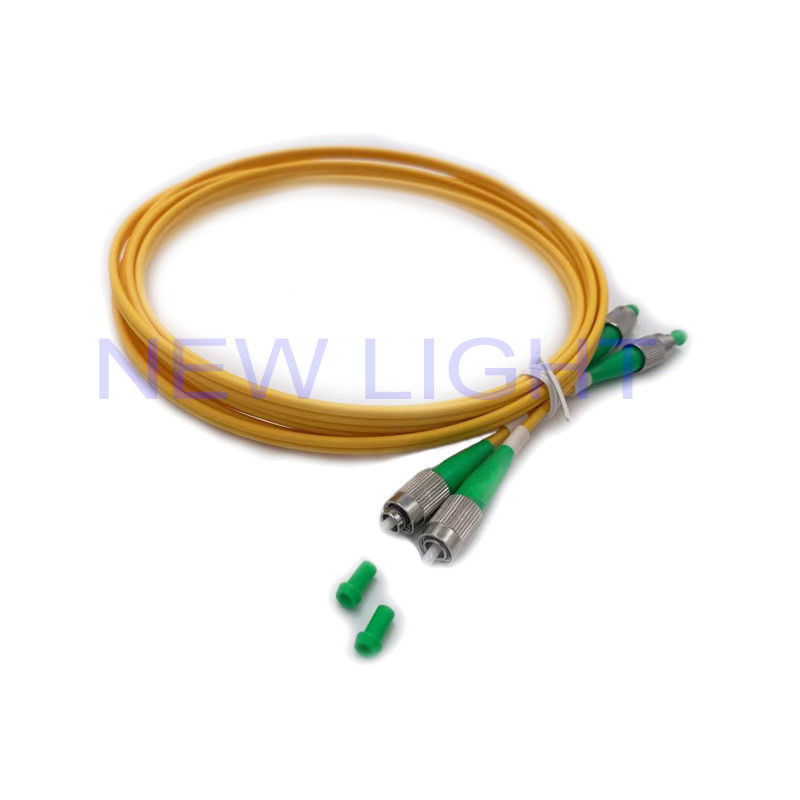

LSZH 2.0mm Duplex G657A1 Optical Fiber Patch Cord with SC/E2000/FC/ST Connectors

Brand Name:	New Light
Model Number:	SC / E2000 / FC / ST
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

SC / E2000 / FC / ST

Mode Type:

SM / MM

Cable Color:

Usual 12 Colors

Cable Diameter:

0.6mm Or 0.9mm

Cable Length:

Can Be Customized

Insertion Loss:

≤0.25dB

Return Loss:

APC≥65dB; PC≥55

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

LSZH 2.0 Mm Optical Fiber Cable G657A1

CE LSZH Duplex Optical Fiber Cable

SC E2000 Optical Fiber Cable

Product Description

LSZH 2.0 Mm Duplex Optical Fiber Cable G657A1 SC / E2000 / FC / ST

This high-performance LSZH 2.0 mm duplex G657A1 optical fiber cable features multiple connector options including SC, E2000, FC, and ST configurations. Designed for superior optical performance in demanding industrial and telecommunications applications.

Product Overview

Fiber optic patch cables, also known as fiber jumpers or optical cables, are essential components in high-performance fiber optic networks. These cables utilize APC (Angled Physical Contact) polish, providing higher return loss than standard UPC connectors, making them ideal for carrier equipment, telecommunications, patch fields, and CATV applications.

Key Features

Low insertion loss for optimal signal transmission
High back reflection loss performance
Stable capability and high reliability
PVC or LSZH jacket options available
Ideal solution for high-speed data transmission
APC polish ensures superior return loss
100% inspected for optical characteristics before shipment

Technical Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type 1	LC	Connector Type 2	Unterminated
Fiber Mode	SM	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

Geometric Specifications

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

Applications

Ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers for 10G/40G/100G Ethernet connections. This fiber specification is preferred for 40G/100G applications in telecommunications, data centers, and industrial networking environments.

Company Introduction

New Light Optics Technology Limited is a high-tech company specializing in optical communication products R&D, manufacturing, sales, and service. Established in 2011, our factory has over 6 years of OEM and manufacturing experience serving customers worldwide.

Our product line includes: Patch Cords/Pigtails, Patch Cord Cables, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Our products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and related applications.

Payment Terms & Delivery

Payment Methods: T/T, PayPal, Western Union, MoneyGram
Payment Terms: 30% deposit in advance, 70% balance paid before delivery
Packaging: International standard package (OPP bag + Carton Box)
Delivery Time: 2-7 working days (depending on quantity) after payment received
Warranty: 1 year after delivery
Shipping Methods: By air (DHL, TNT, UPS, FedEx) or by sea (upon request)

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing.

Q: What's the price?

A: Pricing depends on quantity. Contact us with your requirements for competitive pricing.

Q: How is your quality?

A: We produce according to IEC and European standards in near dust-free workshops with imported production equipment. All products are 100% tested before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are available from stock.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.
