Fiber Optic Pigtail

LSZH Jacket 12 Color 1M Fiber Optic Pigtail with SC E2000 FC ST Connectors for High Return Loss Applications

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

LSZH Jacket 12 Color 1M Fiber Optic Pigtail with SC E2000 FC ST Connectors for High Return Loss Applications

Brand Name:	New Light
Model Number:	SC / E2000 / FC / ST
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Connector Type:

SC / E2000 / FC / ST

Mode Type:

SM / MM

Cable Color:

Usual 12 Colors

Cable Diameter:

0.6mm Or 0.9mm

Cable Length:

Can Be Customized

Insertion Loss:

≤0.25dB

Return Loss:

APC≥65dB; PC≥55

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

12 Color 1M Fiber Optic Pigtail SC

Low insertion loss Fiber Optic Pigtail

FC ST Fiber Optic Tail

Product Description

LSZH 12 Color 1M Fiber Optic Pigtail

Available with SC, E2000, FC, and ST connectors, this 12-color fiber optic pigtail is designed for professional splice applications in outside plant cable termination.

Product Overview

Fiber optic pigtails are essential components for splice applications when terminating outside plant cable. Each unit consists of 12 individual simplex pigtails in distinct colors, meeting Telcordia GR-326 Core and ROHS requirements.

The 12F Ribbon Fan-out Fiber Optic Pigtail utilizes ribbon cable technology, fanning out via a 1x12 fanout kit. Available with 900μm or 2.0mm fanout cables, these pigtails come in both single-mode and multimode versions with APC or UPC polish types.

All OMC pigtails undergo factory inspection and testing, with interferometer data available upon request.

Contact for Custom Orders

WhatsApp: 008613534063703

Key Features

Compatible with 0.9mm fiber installation
Available with yellow PVC or LSZH jacket options
FC connectors available in UPC or APC polish types
Designed for installation in fiber distribution boxes, patch panels, and fiber cabinets
Ideal for fiber-to-the-home projects through fiber adapters

Applications

Long haul transmissions saving costs for signal amplification
Low loss budget transmissions
Transmissions requiring uniform channel losses
Replacement of splices while maintaining loss levels

Technical Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type	LC	Alternative Connector	Unterminated
Fiber Mode	Single Mode	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40°C to 75°C	Storage Temperature	-45°C to 85°C

Geometric Specifications

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10-25	(-50, +50)	None
2.5mm APC	≤50	5-12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7-25	(-50, +50)	None
1.25mm APC	≤50	5-12	(-50, +50)	8±0.2

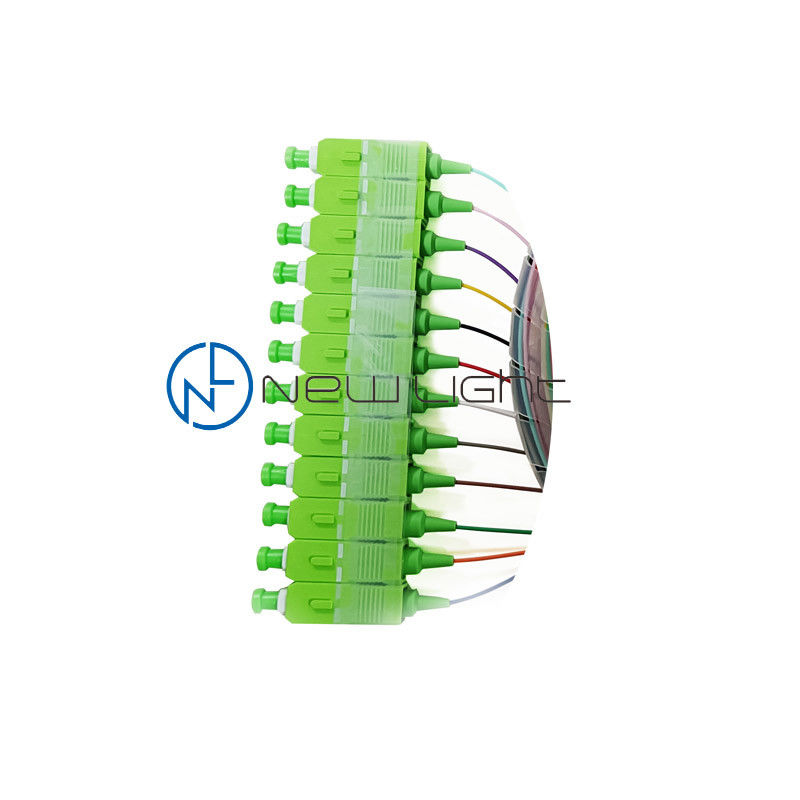

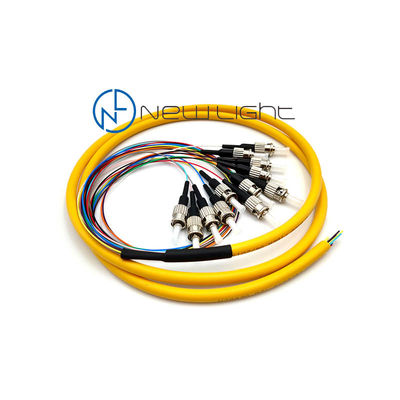

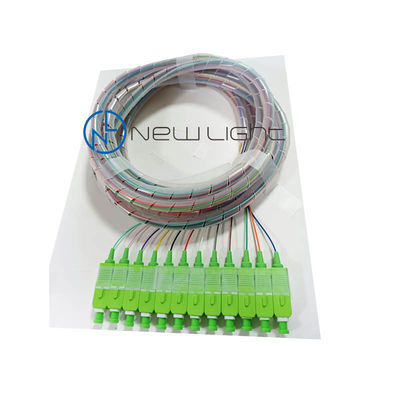

Product Images

Manufacturer Information

New Light Optics Technology Limited is a high-tech company specializing in optical communication products R&D, manufacturing, sales, and service. Established in 2011, our factory brings over 6 years of OEM and manufacturing experience serving customers worldwide.

Our comprehensive product line includes: Patch Cords/Pigtails, Patch Cord Cables, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Our products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and related applications.

With advanced technology, professional R&D teams, sophisticated production equipment, and rigorous quality control systems, our products have earned high reputation across more than 60 countries including USA, Europe, Brazil, Middle East, and Asia.

Ordering & Support

Payment & Delivery Terms

Payment Methods: T/T, PayPal, Western Union, MoneyGram
Payment Terms: 30% deposit in advance, 70% balance before delivery
Packaging: International standard (OPP bag + Carton Box)
Delivery Time: 2-7 working days (depending on quantity)
Warranty: 1 year from delivery date
Shipping Methods: Air (DHL, TNT, UPS, FedEx) or Sea (upon request)

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

How is your product quality?

Our production follows IEC and European standards in near dust-free workshops using imported equipment. All products undergo 100% testing before delivery.

What is your lead time?

We maintain three factories in China with lead times of 2-3 working days for 5,000 pieces. Regular products are typically in stock.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.
