1M LSZH 0.9mm FC UPC/APC 12 Strand Single Mode Fiber Optic Pigtail Cable

Brand Name:	New Light
Model Number:	SC / E2000 / FC / ST
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Connector Type:

SC / E2000 / FC / ST

Mode Type:

SM / MM

Cable Color:

Usual 12 Colors

Cable Diameter:

0.6mm Or 0.9mm

Cable Length:

Can Be Customized

Insertion Loss:

≤0.25dB

Return Loss:

APC≥65dB; PC≥55

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

0.9mm Fiber Optic Cable 12 Strand

1M LSZH Fiber Optic Cable Single Mode

Product Description

1M LSZH 0.9mm FC UPC/APC 12 Strand Single Mode Fiber Optic Cable

High-performance 1-meter fiber optic cable featuring LSZH (Low Smoke Zero Halogen) 0.9mm jacket with FC UPC/APC connectors and 12-strand single-mode G.652D fiber configuration.

Key Features

Insert-pull, key-oriented coupling mechanism for high repeatability and low-loss connections
Available in simplex, duplex, and multi-core configurations with standard or customized structures
PC/UPC/APC polish options available
Compliant with Telcordia GR-326-CORE specifications
UL94V-0 compliant plastic plugs meeting RoHS standards
Stable and reliable manufacturing process
Low insertion loss and high return loss performance
Excellent random mating performance

Applications

Optical communication networks
Telecom networks
Ethernet networks
CATV networks
Fiber distribution boxes and patch panels
Fiber-to-the-home (FTTH) projects

Product Specifications

Fiber Count	12	Fiber Mode	9/125μm SM
Connector Type 1	FC	Connector Type 2	Unterminated
Cable Length	1.5m	Wavelength	1310/1550nm
Jacket Material	PVC/LSZH	Interchangeability	≤0.2dB
Insertion Loss	≤ 0.25dB	Vibration	≤0.2dB
Return Loss	≥ 50dB	Operating Temperature	-40°C to 75°C
Storage Temperature	-45°C to 85°C

Geometric Specifications

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10-25	(-50, +50)	None
2.5mm APC	≤50	5-12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7-25	(-50, +50)	None
1.25mm APC	≤50	5-12	(-50, +50)	8±0.2

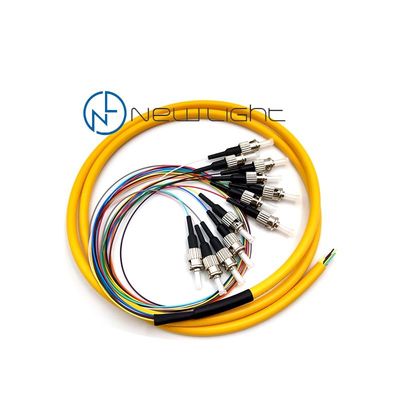

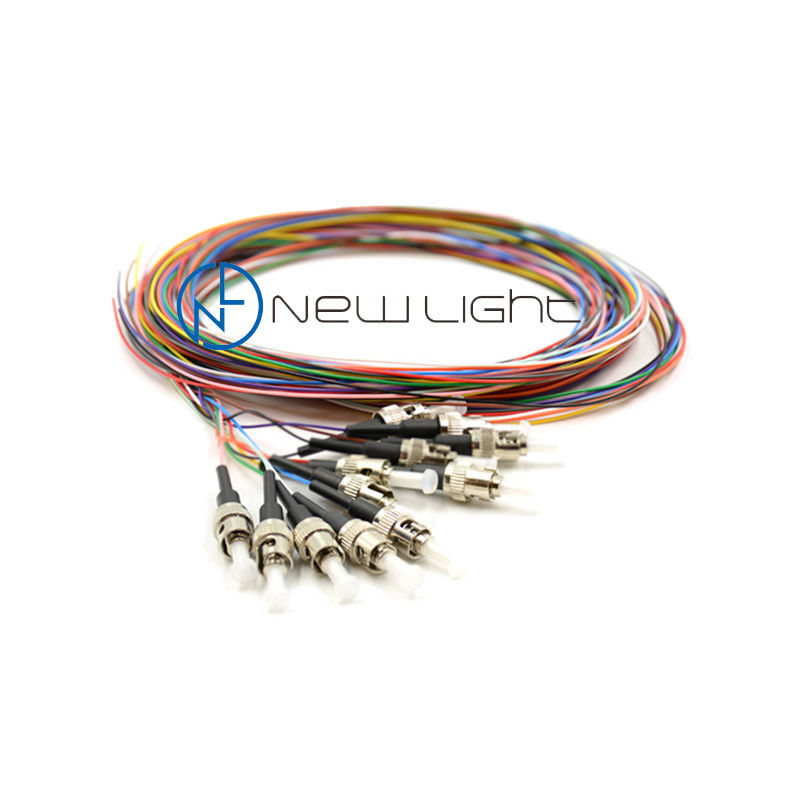

Product Images

Custom Labeling

Each cable includes a detailed label showing the 12-color fiber optic code, insertion loss, return loss measurements for each fiber, and optional customer branding.

Contact Information

New Light Optics Technology Limited
WhatsApp: 008613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are the manufacturer located in Shenzhen, China with extensive OEM experience.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, though larger quantities receive more competitive pricing.

How is your product quality?

We produce according to IEC and European standards in near dust-free workshops with imported equipment. All products are 100% tested before delivery.

What is your lead time?

Regular products are in stock. Custom orders typically take 2-3 working days for quantities up to 5,000 pieces.

What is your warranty policy?

2-year warranty for non-artificial damage. Artificial damage repairs are free, with customer responsible for shipping costs.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Payment & Delivery

Payment Methods: T/T, PayPal, Western Union, MoneyGram
Terms: 30% deposit, 70% balance before delivery
Packaging: International standard (OPP bag + carton box)
Delivery: 2-7 working days via DHL, TNT, UPS, FedEx, or sea freight
Warranty: 1 year from delivery date
