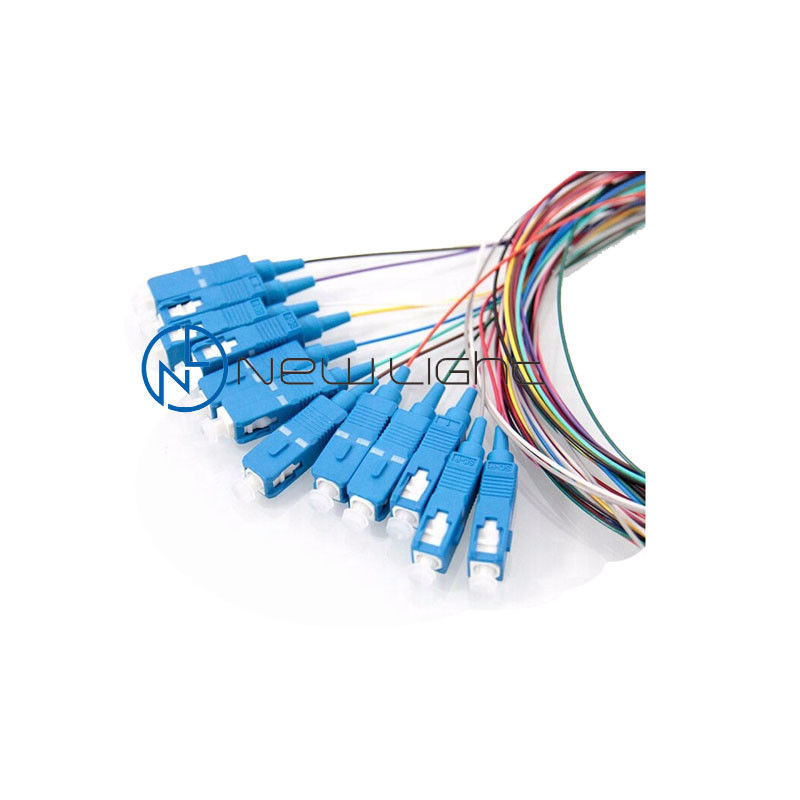

LSZH 12 Color 1m Fiber Optic Pigtail with SC E2000 FC ST Connectors and Low Insertion Loss

Brand Name:	New Light
Model Number:	SC / E2000 / FC / ST
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Connector Type:

SC / E2000 / FC / ST

Mode Type:

SM / MM

Cable Color:

Usual 12 Colors

Cable Diameter:

0.6mm Or 0.9mm

Cable Length:

Can Be Customized

Insertion Loss:

≤0.25dB

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

1000000

Highlight:

LSZH Jacket Fiber Optic Pigtail

High Return loss Fiber Optic Pigtail

FC ST Fiber Optic Tail

Product Description

LSZH 12 Color 1m Fiber Optic Pigtail SC/E2000/FC/ST

LSZH 12-color 1-meter fiber optic pigtails are designed for splice applications when terminating outside plant cable. Each unit consists of 12 simplex pigtails in different colors, featuring connectors such as SC, E2000, FC, or ST. These pigtails meet Telcordia GR-326 Core and ROHS requirements.

Product Overview

Our 12F Ribbon Fan-out Fiber Optic Pigtail is manufactured using ribbon cable technology, fanning out via a 1x12 fanout kit. Available with 900um or 2.0mm fanout cables, these pigtails come in both single-mode and multimode versions with APC or UPC polish types. All OMC pigtails undergo factory inspection and testing, with interferometer data available upon request.

Applications

Long haul transmissions saving costs for signal amplification
Low loss budget transmissions
Transmissions requiring uniform channel losses
Replacement of splices while maintaining same loss level

Key Features

Stable and reliable manufacturing process
Low insertion loss
Excellent random mating performance
High return loss
Available connectors: SC, FC, LC, ST, MU, E2000
Compatible cable types: G652D, G657A1, G657A2, G655, OM1, OM2, OM3, OM4
Options: Tight buffer, semi-tight buffer, loose buffer

Product Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type 1	LC	Connector Type 2	Unterminated
Fiber Mode	SM	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

Geometric Specifications (3D Interferometer Tested)

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

Product Images

Packaging

Products are securely packaged using OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact: WHATSAPP 008613534063703

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing.

Q: What's the price?

A: Pricing depends on quantity. We offer competitive pricing for bulk orders.

Q: Can you quote FOB price?

A: We typically ship via air courier. EXW or CFR pricing is preferred for most orders.

Q: How is your quality?

A: We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

Q: What's your lead time?

A: 2-3 working days for 5000 pieces. Regular products are available from stock.

Q: What's your warranty?

A: 2-year warranty for patch cords covering non-artificial damage.

Q: What's your packing?

A: International export packaging with optional custom logo printing.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for some products with freight prepaid by customer.

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing and lead time.

Q: What are your payment terms?

A: T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% before delivery.
