Fiber Optic Pigtail

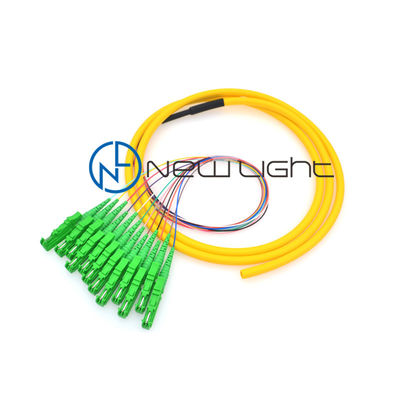

0.9mm 12 Colors Fiber Optic Pigtail with SC E2000 FC ST Connector for High-Speed Data Transmission

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

0.9mm 12 Colors Fiber Optic Pigtail with SC E2000 FC ST Connector for High-Speed Data Transmission

Brand Name:	New Light
Model Number:	SC / E2000 / FC / ST
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Connector Type:

SC / E2000 / FC / ST

Mode Type:

SM / MM

Cable Color:

Usual 12 Colors

Cable Diameter:

0.6mm Or 0.9mm

Cable Length:

Can Be Customized

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

12 Colors Fiber Optic Pigtail

0.9mm Fiber Optic Pigtail

0.9mm single mode pigtail

Product Description

0.9mm 12 Colors Fiber Optic Pigtail with SC/E2000/FC/ST Connectors

Fiber optic pigtails feature a connector on one end and a broken fiber core on the other, designed for connecting fiber terminal boxes to equipment. One end is fused with the fiber end while the other connects to fiber transceivers or optical modules via LC, SC, FC, or ST connectors, creating efficient optical data transmission pathways.

Applications

Long haul transmissions with cost-effective signal amplification
Low loss budget transmissions
Transmissions requiring uniform channel losses
Fiber tester replacement while maintaining consistent loss levels

Key Features

Premium ceramic ferrule and fiber cable construction
Low insertion loss and high return loss performance
UPC, APC, or PC polish options available
Fan out kit at fiber junction with flat fiber type
Excellent exchangeability
Compliant with GR-326-Core, UL94V-O, TIA/EIA-568-B.3, RoHS standards

Product Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type 1	LC	Connector Type 2	Unterminated
Fiber Mode	SM	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40°C to 75°C	Storage Temperature	-45°C to 85°C

Geometric Specifications (3D Interferometer Tested)

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10-25	(-50, +50)	None
2.5mm APC	≤50	5-12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7-25	(-50, +50)	None
1.25mm APC	≤50	5-12	(-50, +50)	8±0.2

Product Diagram

About New Light Optics Technology

New Light Optics Technology Limited is a high-tech company specializing in optical communication products R&D, manufacturing, sales, and service. Established in 2011, our factory has over 6 years of OEM and manufacturing experience serving customers worldwide.

Our comprehensive product line includes: Patch Cords/Pigtails, Patch Cord Cables, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. These products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and related applications.

We employ advanced technology, professional R&D teams, sophisticated production equipment, and skilled engineers. Our rigorous quality control system ensures products meet the highest standards, serving over 60 countries worldwide with excellent customer feedback.

Contact Information

WHATSAPP: 008613534063703

Payment Terms & Delivery

Payment Methods: T/T, PayPal, Western Union, MoneyGram
30% deposit in advance, 70% balance paid before delivery
Packaging: International standard (OPP bag + Carton Box)
Delivery Time: 2-7 working days (depending on quantity) after payment receipt
Warranty: 1 year after delivery
Shipping Methods: By air (DHL, TNT, UPS, FedEx) or by sea (upon request)

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

How is your product quality?

We follow IEC and European standards in near dust-free workshops with imported production and quality control equipment. All products are 100% tested before delivery.

What is your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for adapters, attenuators, patch cords, and pigtails (customer pays freight). For high-value products, sample charges apply but are refundable with orders.
