MPO MTP Patch Cord

Female OS2 9/125 MPO MTP Cable 12 Fibre Multimode Patch Cord for High-Density Data Centers

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Female OS2 9/125 MPO MTP Cable 12 Fibre Multimode Patch Cord for High-Density Data Centers

Brand Name:	NEW LIGHT
Model Number:	SC / E2000 / FC / ST
MOQ:	100pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen , China

Certification:

CE , ISO , RoHS

Connector Type:

SC / E2000 / FC / ST

Mode Type:

SM / MM

Cable Color:

12 Colors

Cable Diameter:

3.0mm

Cable Length:

Can Be Customized

Insertion Loss:

≤0.5db

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

12000 pcs / day

Highlight:

OS2 MPO MTP Cable

MPO MTP Cable

3.0mm MPO MTP Patch Cord

Product Description

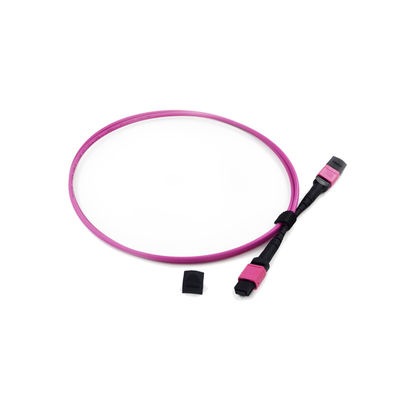

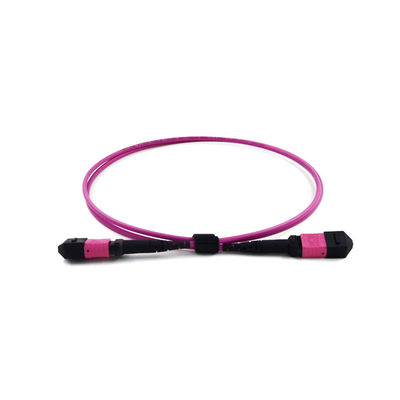

Female OS2 9/125 MPO MTP Cable 12 Fibre Multimode Patch Cord

High-performance female OS2 (9/125) MPO MTP 12-fiber multimode patch cord designed for data center and high-density fiber applications.

MPO 12 Fibre Connectors and Polarity

Polarity Types

Type A: Fiber 1 connected to fiber 1, 2 to 2, 3 to 3 (straight-through)
Type B: Fiber 1 connected to fiber 12, 2 to 11, 3 to 10 (cross-over)
Type C: Fiber 1 connected to fiber 2, 2 to 1, 3 to 4, 4 to 3 (paired cross-over)

Application Guidelines

Polarity Selection by Data Rate

Type C cables: 1G, 10G, or 25G duplex networks connecting between MPO/LC cassettes
Type B cables: 40G and 100G networks
Type A cables: 40G and 100G networks when extending links

Cable Construction

MPO cables utilize micro cable (microcore) construction with 250μm buffered fibers, aramid yarn strength member, and single or dual outer sheath. Available in core counts from 8 to 144 fibers, typically built using 8 or 12 fiber sub-units. This design provides approximately 65% reduction in space and weight compared to traditional tight buffered or loose tube cables, with superior bend radius for high-density applications.

Glass cores comply with international standards including OM3, OM4, OS2 (singlemode), G657.A1 and G657.A2 (bend insensitive singlemode). Performance varies by manufacturer and becomes critical in complex, long-distance network applications.

Product Specifications

Parameter	Value	Parameter	Value
Fiber Count	12	Fiber Mode	9/125μm
Connector Type 1	LC	Connector Type 2	Unterminated
Fiber Mode	SM	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

Geometric Specifications

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

Product Diagrams

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery.

Contact: WHATSAPP +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing varies by quantity. Contact us with your requirements for competitive pricing.

Can you quote FOB price?

We typically ship via air courier (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is preferred for most orders.

How is your quality?

We follow IEC and European standards with imported production equipment. All products undergo 100% testing before delivery.

What's your lead time?

2-3 working days for 5000 pieces. Regular products are available from stock for urgent orders.

What's your warranty?

2-year warranty for patch cords covering non-artificial damage.

What's your packing?

International export packaging with optional custom logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (freight prepaid).

How can I order?

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
