MPO MTP Patch Cord

12 Fibre MPO MTP Patch Cord with Low Insertion Loss and 3.0mm PVC Jacket for High Performance

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

12 Fibre MPO MTP Patch Cord with Low Insertion Loss and 3.0mm PVC Jacket for High Performance

Brand Name:	NEW LIGHT
Model Number:	MPO
MOQ:	100pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen , China

Certification:

CE , ISO , RoHS

Connector Type:

SC / E2000 / FC / ST

Mode Type:

SM / MM

Cable Color:

12 Colors

Cable Diameter:

3.0mm/3.5

Cable Length:

Can Be Customized

Insertion Loss:

≤0.5db

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

12000 pcs / day

Highlight:

12 Fibre MPO MTP Patch Cord

PVC MPO MTP Patch Cord

LC MPO MTP cable

Product Description

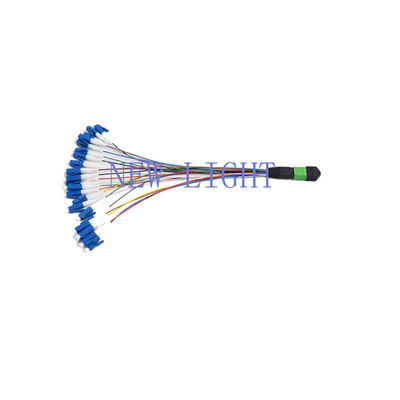

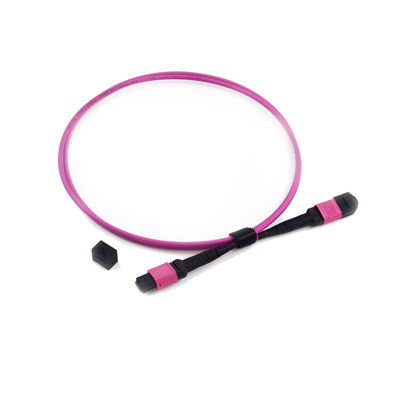

12-Fiber MPO/MTP Patch Cord - Low Insertion Loss OM3/OM4

Low Insertion Loss OM3 PVC 3.0mm OM4 (50/125) MPO MTP 12-Fiber patch cord designed for high-performance data center applications.

MPO Connector Overview

MPO (Multi-fiber Push On) connectors feature multiple fibers in a single ferrule with a mechanical snap-in mechanism. These connectors have evolved significantly since their introduction in the 1990s, with modern versions offering superior optical performance through advanced ferrules like the MT and MT ELITE designs.

Standard MPO connectors typically contain 12 fibers, though variants with 8, 16, 24, 48, and 72 fibers are also available. The MTP connector, produced by US Conec, represents a high-performance evolution of the MPO standard.

Application Guidelines

MPO Cable Polarity for Different Data Rates

Type C cables: 1G, 10G, or 25G duplex networks - Connecting between MPO/LC cassettes
Type B cables: 40G and 100G networks
Type A cables: 40G and 100G networks when extending links

MPO cables have become essential in modern data centers due to standardization requirements and increasing data rates that demand more fiber channels. Their modular design supports efficient, scalable infrastructure solutions.

Product Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type 1	LC	Connector Type 2	Unterminated
Fiber Mode	SM	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

Geometric Specifications (3D Interferometer Tested)

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

Product Diagrams

Packaging

Products are securely packaged in OPP bags within carton boxes to ensure protection during delivery and transportation.

Contact: WhatsApp +8613534063703

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing.

Q: What's the price?

A: Pricing depends on quantity. We offer competitive pricing for bulk orders.

Q: How is your quality?

A: We produce according to IEC and European standards using imported equipment. All products undergo 100% testing before delivery.

Q: What's your lead time?

A: Standard lead time is 2-3 working days for 5,000 pieces. We maintain stock for regular products and accommodate urgent orders.

Q: What's your warranty?

A: 2-year warranty for patch cords covering non-artificial damage.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adaptors, attenuators, patch cords, and pigtails (freight paid by customer).
