Low Insertion Loss ≤0.35dB MTP MPO Fiber Breakout Cable with High Return Loss ≥65dB and Customizable Length for Data Communication

Brand Name:	NEW LIGHT
Model Number:	MPO
MOQ:	100pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen , China

Certification:

CE , ISO , RoHS

Connector Type:

Mpo

Mode Type:

MM/SM

Cable Color:

12 Colors

Cable Diameter:

0.9mm

Cable Length:

Can Be Customized

Insertion Loss:

≤0.35db

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

12000 pcs / day

Highlight:

MTP MPO fiber breakout cable

PVC MTP MPO patch cord

Data communication MTP MPO patch cord

Product Description

MTP MPO Fiber Breakout Cable OM3 PVC

Customized for Data Communication Network with low insertion loss and OM3 PVC 3.0mm OM4 (50/125) specifications.

Product Overview

MPO Breakout cable provides a cost-effective alternative to time-consuming field termination, designed for high-density fiber patching in data centers requiring space optimization and simplified cable management.

Key Advantages

Advanced production and testing equipment: EXFO IL&RL Tester, Domaille Grinding Machine, SENKO 3D Interferometer
High return loss: ≥45dB
5-year experienced R&D team
Customized production and service solutions
40G/100G Data Center Solutions

Applications

Data communication networks
Optical system access networks
Storage area network fiber channels
High density architectures

Features and Benefits

100% pre-terminated and factory tested for optimal performance
Rapid configuration and networking reduces installation time
Supports 40G and 100G network applications
Multiple jacket materials available: LSZH, OFNR, OFNP
Supports up to 12F, 24F, 48F, 72F, 96F, 144F with custom options

Product Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type1	LC	Connector Type2	Unterminated
Fiber Mode	SM	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

Geometric Specifications

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

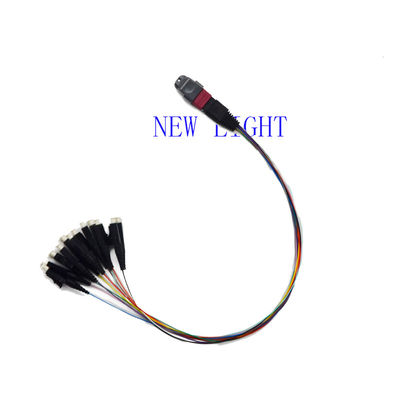

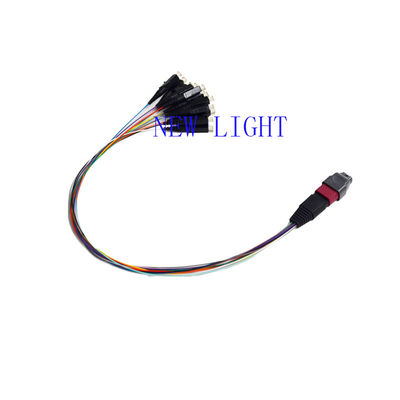

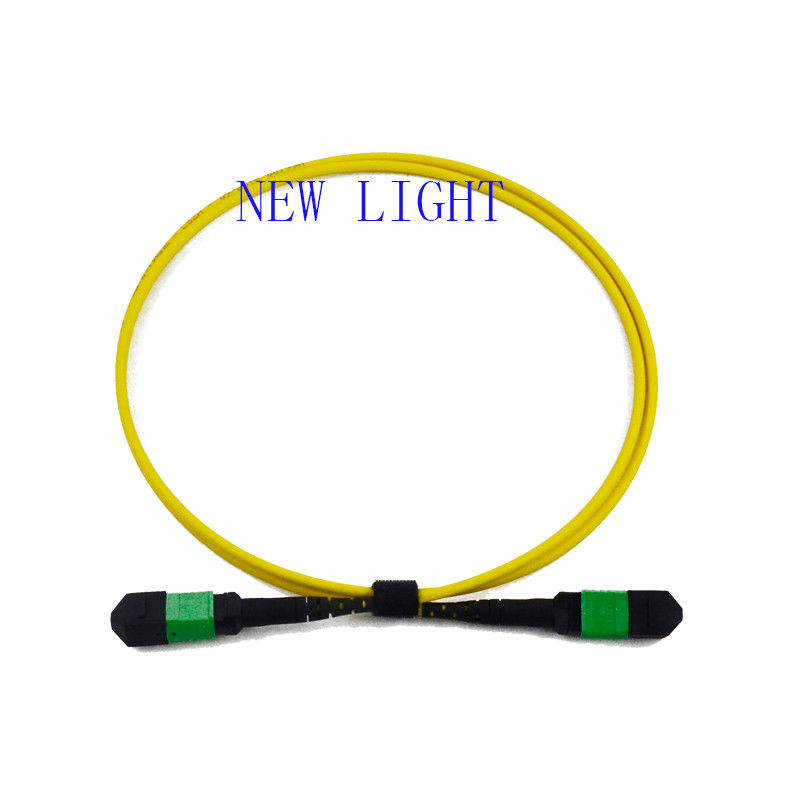

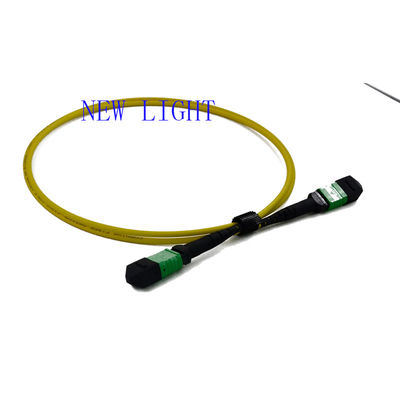

Product Diagrams

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact: WhatsApp +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing varies by quantity. Contact us with your requirements for competitive pricing.

Can you quote FOB price?

We typically recommend EXW or CFR pricing for optimal freight solutions.

How is your quality?

We follow IEC and European standards with imported production equipment and 100% testing before delivery.

What's your lead time?

2-3 working days for 5000 pieces, with stock available for regular products.

What's your warranty?

2-year warranty for patch cords, covering non-artificial damage.

What's your packing?

International export packaging with optional logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for certain products with freight prepaid by customer.

How can I order?

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% before delivery.
