MPO MTP Patch Cord

3.0mm PVC MPO Breakout Cable with High Return Loss and Low Insertion Loss for Data Centers

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

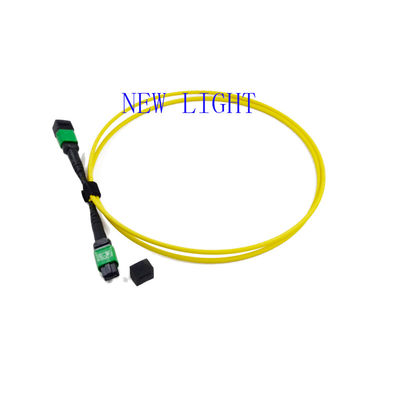

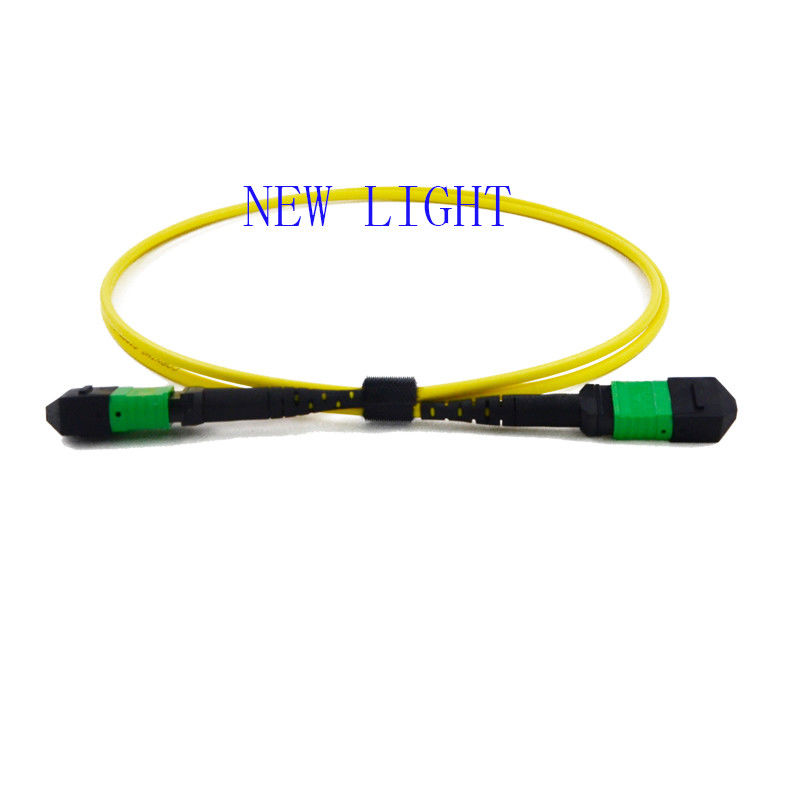

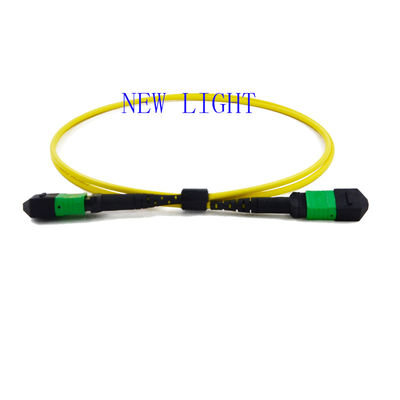

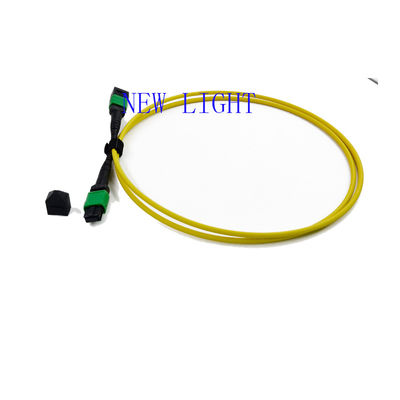

3.0mm PVC MPO Breakout Cable with High Return Loss and Low Insertion Loss for Data Centers

Brand Name:	NEW LIGHT
Model Number:	MPO
MOQ:	100pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen , China

Certification:

CE , ISO , RoHS

Connector Type:

Mpo

Mode Type:

MM/SM

Cable Color:

12 Colors

Cable Diameter:

0.9mm

Cable Length:

Can Be Customized

Insertion Loss:

≤0.35db

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

12000 pcs / day

Highlight:

PVC MTP MPO breakout cable

3.0mm mtp mpo breakout cable

Data Centers mpo breakout cable

Product Description

PVC 3.0mm MTP MPO Breakout Cable for High-Density Data Centers

Low insertion loss OM3 PVC 3.0mm OM4 (50/125) MTP MPO breakout cable designed for high-density fiber patching in data centers.

Product Overview

Fiber optic patch cords are terminated at both ends with connectors for rapid connection to CATV, optical switches, transmitters, receivers, terminal boxes, and other telecommunication equipment. These cables feature low insertion loss and high return loss.

MPO breakout cables provide a cost-effective alternative to field termination, optimized for space-saving applications and reduced cable management challenges. Ideal for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connections.

Key Features

Low insertion loss, high return loss
Excellent repeatability and exchangeability
100% insertion, return loss, end face, and interference inspection
Excellent mechanical endurance
High credibility and stability
Complies with Telcordia GR-326-Core, IEC and RoHS standards
LSZH or OFNR (Plenum) options available

Product Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type 1	LC	Connector Type 2	Unterminated
Fiber Mode	SM	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

Geometric Specifications (3D Interferometer Tested)

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

Product Diagram

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact Us: WHATSAPP +8613534063703

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-unit costs are higher.

Q: What's the price?

A: Pricing depends on quantity. We provide competitive pricing for larger orders upon request.

Q: Can you quote FOB price?

A: We primarily ship via air couriers (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is typically more suitable. Contact us for freight solutions based on your specifications and quantity.

Q: How is your quality?

A: Our production follows IEC and European standards in near dust-free workshops using imported equipment. All products undergo 100% testing before delivery.

Q: What's your lead time?

A: We maintain three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock.

Q: What's your warranty?

A: Patch cords include a 2-year warranty against non-artificial damage. For artificial damage, we provide free repairs with customer covering freight costs.

Q: What's your packing?

A: We use international export packaging and can print customer logos upon request.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer. Higher-value products require sample charges.

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance. Production begins after payment confirmation.

Q: What are your payment terms?

A: T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
