MPO MTP Patch Cord

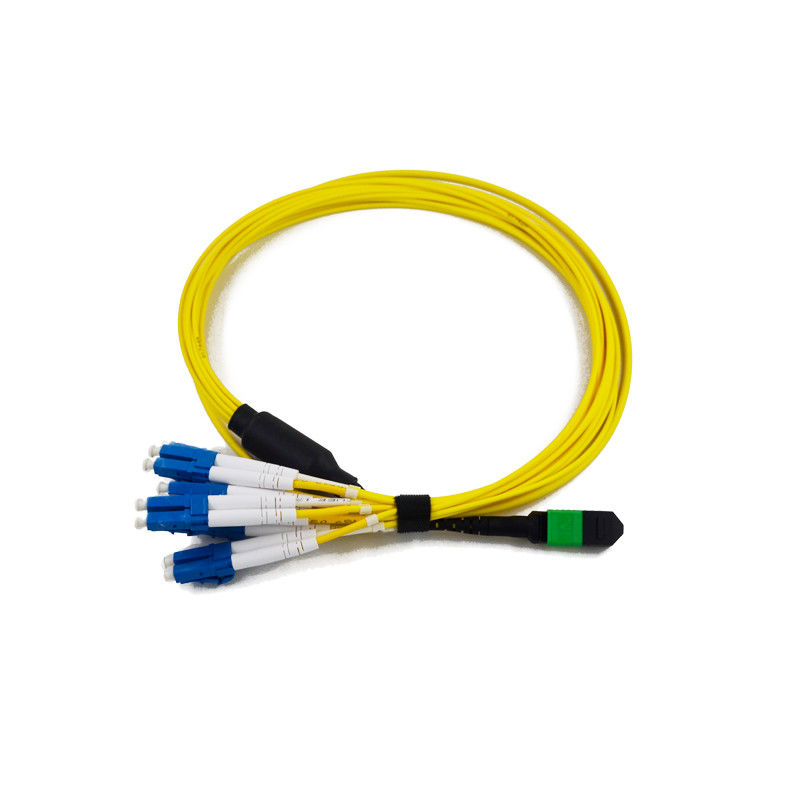

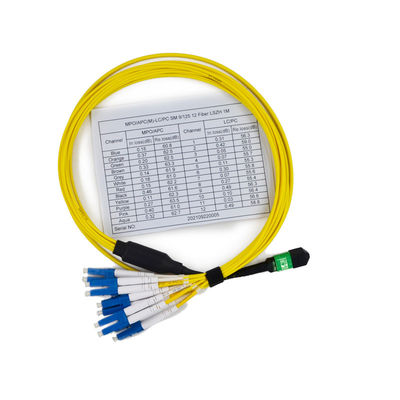

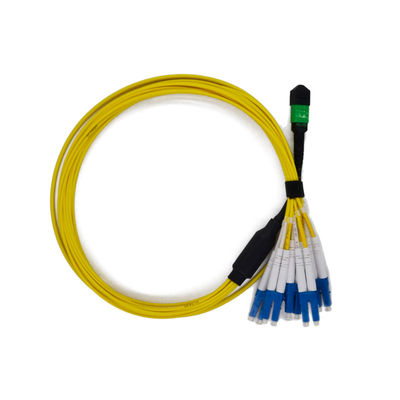

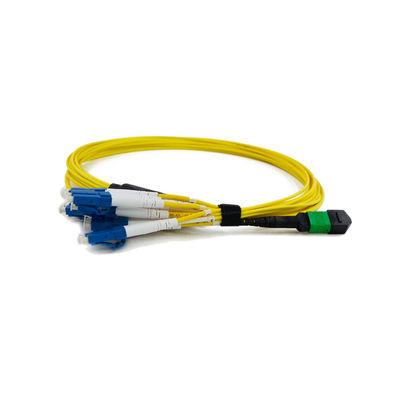

Low Insertion Loss PVC 3.0mm MTP MPO Fiber Patch Cable with 12 Colors for High-Density Data Centers

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Low Insertion Loss PVC 3.0mm MTP MPO Fiber Patch Cable with 12 Colors for High-Density Data Centers

Brand Name:	NEW LIGHT
Model Number:	MPO
MOQ:	100pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen , China

Certification:

CE , ISO , RoHS

Connector Type:

Mpo

Mode Type:

MM/SM

Cable Color:

12 Colors

Cable Diameter:

0.9mm

Cable Length:

Can Be Customized

Insertion Loss:

≤0.35db

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

12000 pcs / day

Highlight:

MTP MPO fiber patch cable 3.0mm

PVC MTP MPO fiber patch cable

PVC LSZH mpo fiber cable

Product Description

Low Insertion Loss Plenum MTP MPO Fiber Patch Cable PVC 3.0mm MPO Cable

Product Overview

The MTP/MPO trunk cable patch cord is a cost-effective solution for high-density fiber patching in data centers, offering space savings and simplified cable management. Featuring US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it's optimized for:

40G QSFP+ PLR4 to 10G SFP+ LR connections
400G OSFP/QSFP-DD DR4 to 100G QSFP DR
400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics

Key Features

Supports 40G and 100G network applications
Factory pre-terminated and tested for optimal performance
Available in 12F, 24F, 48F, 72F, 96F, 144F configurations (custom options available)
Enables rapid configuration and networking, reducing installation time
Multiple jacket material options: LSZH, OFNR, OFNP
Standard unit structure size compatible with various cabinets and racks
Enhanced cable entry design with multiple inlet points and secure fixation

Applications

Data Center infrastructure
Storage Area Network
Fiber Channel
40Gbps and 100Gbps protocol environments

Product Specifications

Parameter	Value	Parameter	Value
Fiber count	12	Fiber Mode	9/125μm
Connector Type1	LC	Connector Type2	Unterminated
Fiber Mode	SM	Breakout length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return loss	≥ 50dB	Vibration	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C

Geometric Specifications (3D Interferometer Tested)

Type	Vertex offset(um)	Curvature radius(mm)	Fiber Height(nm)	Angle offset(°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

Product Diagram

Packaging

Each unit is securely packaged in an OPP bag with outer carton box protection to ensure safe delivery.

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer based in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing.

Q: What's the price?

A: Pricing depends on quantity. We offer competitive pricing for bulk orders.

Q: Can you quote FOB price?

A: We typically ship via air courier (DHL, TNT, UPS, FedEx). For large sea shipments, we can provide CFR pricing.

Q: How is your quality?

A: We produce to IEC standards with imported equipment. All products undergo 100% testing before shipment.

Q: What's your lead time?

A: Standard lead time is 2-3 working days for 5000 pieces. We maintain stock of regular products.

Q: What's your warranty?

A: 2-year warranty for non-artificial damage. Free repair for artificial damage (customer pays freight).

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for some products (customer pays freight). Sample charges apply for high-value items.
