Low Insertion Loss 3.0mm MPO Trunk Cable Polarity A Male To Male for High Density Networks

Brand Name:	NEW LIGHT
Model Number:	MPO
MOQ:	100pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen , China

Certification:

CE , ISO , RoHS

Connector Type:

Mtp

Mode Type:

MM/SM

Cable Color:

8 Colors

Cable Diameter:

3.0mm

Cable Length:

3m/5m/10m

Insertion Loss:

≤0.35db

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

12000 pcs / day

Highlight:

3.0mm MPO Trunk Cable

OM3 MPO Trunk Cable

CATV mpo fiber cable

Product Description

Multimode OM3 3.0mm MPO Trunk Cable Polarity A Male To Male

Low insertion loss 3.0mm Trunk Cable Polarity A MPO(Male)-MPO(Male) cable designed for high-performance multimode fiber optic networks.

Product Overview

This MPO fiber cable is engineered for deployment in any multimode 10 GB 50/125 MTP/MPO network. Featuring an extremely high bandwidth—almost 3x that of typical multimode cables—these cables utilize push-on connectors that securely hold the cable in place. Each multimode MTP/MPO fiber cable contains 12 fibers or 6 duplex channels per connector, making them ideal for high-density applications with limited space requirements.

Key Features

Ceramic Ferrule construction
High return loss performance
Low insertion loss characteristics
Excellent repeatability and exchangeability
Precision polished and 100% tested
Compliant with Telcordia GR-326-Core, IEC and RoHS standards
100% factory pre-terminated and tested
Rapid configuration and networking capabilities
Supports 40G and 100G network applications
Available in LSZH, OFNR, OFNP jacket materials
Supports up to 8C, 12C, 24C configurations

Applications

Local Area Network (LAN)
Data communication networks
Telecommunication optical transmission networks
Optical access networks (OAN)
Active device termination
Fiber optics data transmission (FODT)
Test Equipment
CATV systems

Product Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type1	LC	Connector Type2	Unterminated
Fiber Mode	SM	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

Geometric Specifications (3D Interferometer Tested)

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

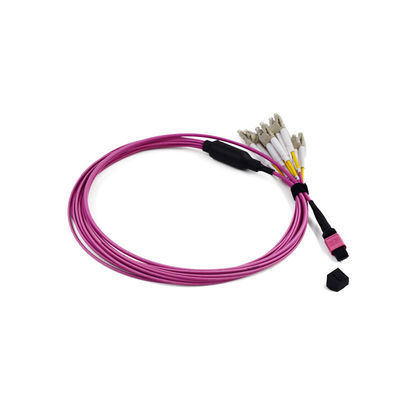

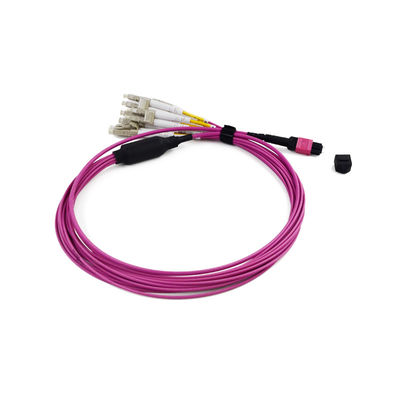

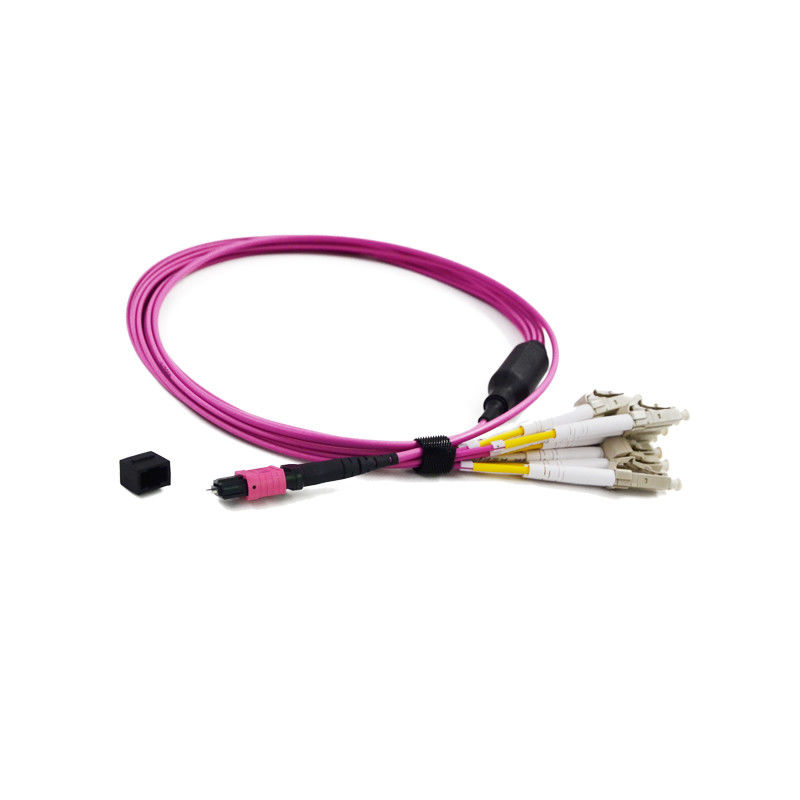

Product Images

Packaging

Products are securely packaged using OPP bags and outer carton boxes to ensure protection during delivery and transportation.

Contact: WhatsApp +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single unit costs are higher.

What's the price?

Pricing varies by quantity. We provide competitive pricing for bulk orders upon request.

Can you quote FOB price?

We typically ship via air couriers (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is preferred for most orders.

How is your quality?

We follow IEC and European standards with near dust-free workshops, imported equipment, and 100% product testing before delivery.

What's your lead time?

We maintain three factories in China with rapid production capabilities. Standard lead time is 2-3 working days for 5000 pieces.

What's your warranty?

2-year warranty for non-artificial damage. Artificial damage repairs are free with customer covering freight costs.

What's your packing?

International export packaging with optional custom logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid. Sample charges apply for high-value products.

How can I order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then proceed with proforma invoice and payment processing.

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
