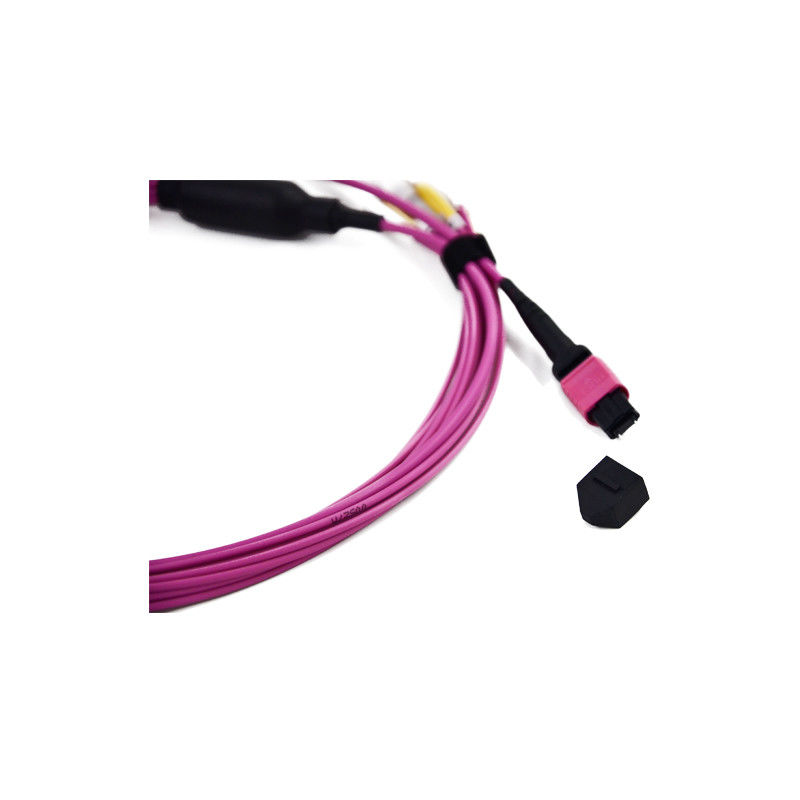

Low Insertion Loss 10 GB OM3 MPO to LC Fiber Cable with 0.9mm Fanout Patch Cables

Brand Name:	NEW LIGHT
Model Number:	MPO
MOQ:	100pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen , China

Certification:

CE , ISO , RoHS

Connector Type:

Mtp

Mode Type:

MM/SM

Cable Color:

8 Colors

Cable Diameter:

3.0mm

Cable Length:

3m/5m/10m

Insertion Loss:

≤0.35db

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

12000 pcs / day

Highlight:

OM3 MPO To LC Fiber Cable

LSZH MPO To LC Fiber Cable

0.9mm mpo fanout cable

Product Description

MM/SM 10 GB OM3 MPO to LC Fiber Cable 0.9mm Fanout Patch Cables

Low insertion loss 3.0mm MPO Male - LC Fiber 0.9mm Fanout Patch Cables

Product Overview

MPO OM3 MULTIMODE CONNECTOR - Ready for deployment in any multimode 10 GB 50/125 MTP/MPO network. These 10 GB OM3 fiber optic patch cables feature an extremely high bandwidth—almost 3x that of typical multimode cables. The push-on connectors securely hold cables in place.

This multimode MTP/MPO fiber cable contains 12 fibers or 6 duplex channels within each connector. These high-density cables are ideal for limited space applications while maintaining excellent fiber connectivity.

Key Features

MPO trunk cables connect MPO modules as permanent links
Available with 24F, 48F, 60F, 72F, 96F, 144F fiber counts
Supports speeds up to 10/40/100Gbps data center solutions
Interconnects cassettes, panels, or ruggedized MPO fan-outs
Facilitates rapid deployment of high-density backbone cabling
Provides flexibility for connector style changes in patch panels
100% pre-terminated and factory tested for performance
Rapid configuration and networking for time savings
Supports 40G and 100G network applications
Jacket materials: LSZH, OFNR, OFNP available
Supports up to 8C, 12C, 24C configurations

Product Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type 1	LC	Connector Type 2	Unterminated
Fiber Mode	SM	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

Geometric Specifications (3D Interferometer Tested)

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

Product Diagrams

Packaging

Products are packaged in OPP bags with outer carton boxes to ensure protection during delivery and transportation.

Contact Us: WHATSAPP +8613534063703

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we don't recommend ordering single pieces due to higher costs. Larger quantities receive more competitive pricing.

Q: What's the price?

A: Pricing depends on quantity. We provide our best pricing based on your order quantity, with competitive rates for larger orders.

Q: Can you quote FOB price?

A: Yes, but due to small size and weight, most shipments go by air (DHL, TNT, UPS, FEDEX). EXW price or CFR price is typically better. Contact us for freight solutions based on your specifications and quantity.

Q: How is your quality?

A: Our production follows IEC and European standards in near dust-free workshops. We use imported production and quality control equipment, with 100% testing before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are in stock, and we can handle urgent orders.

Q: What's your warranty?

A: Patch cords have a 2-year warranty from delivery for non-artificial damage. For artificial damage, we repair free of charge with customer covering freight costs.

Q: What's your packing?

A: We use international export packaging and can print your logo on packaging materials.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: For adaptors, attenuators, patch cords, and pigtails, we provide free samples with customer covering freight. For high-value products, sample charges apply but are refunded with orders.

Q: How can I order?

A: 1. Contact us with product name, specifications, quantity, and delivery address. 2. We provide pricing and lead time. 3. Upon acceptance, we issue Proforma Invoice. 4. Production begins after payment. 5. We confirm delivery details and provide tracking. 6. We prioritize long-term cooperation.

Q: What are your payment terms?

A: T/T, Western Union, PayPal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
