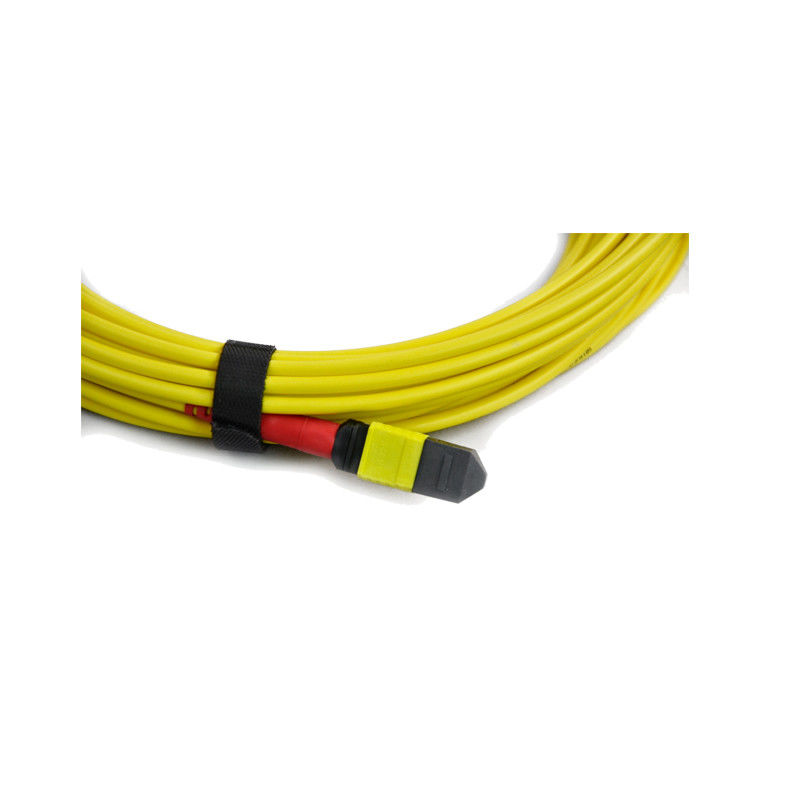

Low Insertion Loss 3.0mm MPO Trunk Cable with Staggered Harness for High-Density Data Centers

Brand Name:	NEW LIGHT
Model Number:	MPO
MOQ:	100pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen , China

Certification:

CE , ISO , RoHS

Connector Type:

Mtp

Mode Type:

MM/SM

Cable Color:

8 Colors

Cable Diameter:

3.0mm

Cable Length:

3m/5m/10m

Insertion Loss:

≤0.35db

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

12000 pcs / day

Highlight:

Staggered MPO Trunk Cable

Polarity B MPO Trunk Cable

3m MPO Trunk Cable

Product Description

Polarity B MPO Trunk Cable - Male to Male

Available in 3m, 5m, and 10m lengths with staggered harness configuration

Product Overview

Low insertion loss 3.0mm trunk cable with Polarity A MPO(Male)-MPO(Male) configuration

PO-SC Straight harness cables are terminated with MPO and SC connectors on both ends. The 12-fiber fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications. All cables have the same length and are specifically designed for high-density fiber patching in data centers to save space and reduce cable management issues.

12F MPO-SC Straight harness cables are designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center environments. Optimized for 10/40/100G high-density data center applications.

Applications

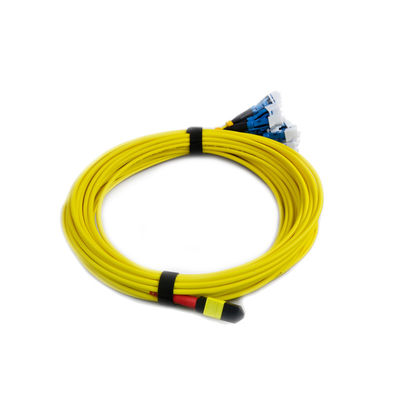

12F MPO-LC/SC/E2000 Staggered harness cables are engineered for:

40G LR4 PSM applications
40GBASE-SR4 networks
40G QSFP+ PLR4 systems
High-density data center environments

All OMC MPO connectors are sourced from Senko/Nissin/Sumitomo. MPO patch cables and trunk cables are high-density cable assemblies used in three primary areas:

Data center applications with high-density environments
Fiber to the building installations
Internal connector applications in fiber equipment

Product Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type1	LC	Connector Type2	Unterminated
Fiber Mode	SM	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

Geometric Specifications (3D Interferometer Tested)

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

Product Diagrams

Packaging

Products are packaged in OPP bags with outer carton boxes to ensure protection during delivery and transportation.

Contact: WHATSAPP +8613534063703

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we don't recommend ordering single units as the cost and price will be higher than your budget.

Q: What's the price?

A: Pricing depends on quantity. We offer our best pricing based on your order quantity, with competitive pricing for larger orders.

Q: Can you quote FOB price?

A: Yes, but due to the small size and weight, most shipments are delivered by air (DHL, TNT, UPS, FEDEX, etc.). EXW price or CFR price is usually better. Contact us for freight solutions based on your specifications and quantity.

Q: How is your quality?

A: Our production follows IEC and European standards in near dust-free workshops. We use imported production and quality control equipment, with 100% testing before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are in stock, and we can handle urgent orders.

Q: What's your warranty?

A: Patch cords come with a 2-year warranty for non-artificial damage. For artificial damage, we provide free repairs with freight paid by the customer.

Q: What's your packing?

A: We use international export packaging and can print your logo on the packaging.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adaptors, attenuators, patch cords, and pigtails (freight paid by customer). For high-value products, sample charges apply but are refundable with orders.

Q: How can I order?

A: 1. Contact us with product specifications and quantity. 2. We provide pricing and lead time. 3. Upon acceptance, we issue a proforma invoice. 4. Production begins after payment. 5. We confirm shipping details and provide tracking. 6. We prioritize long-term cooperation.

Q: What are your payment terms?

A: T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
