MPO MTP Patch Cord

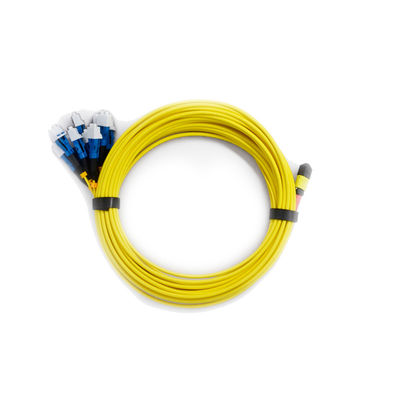

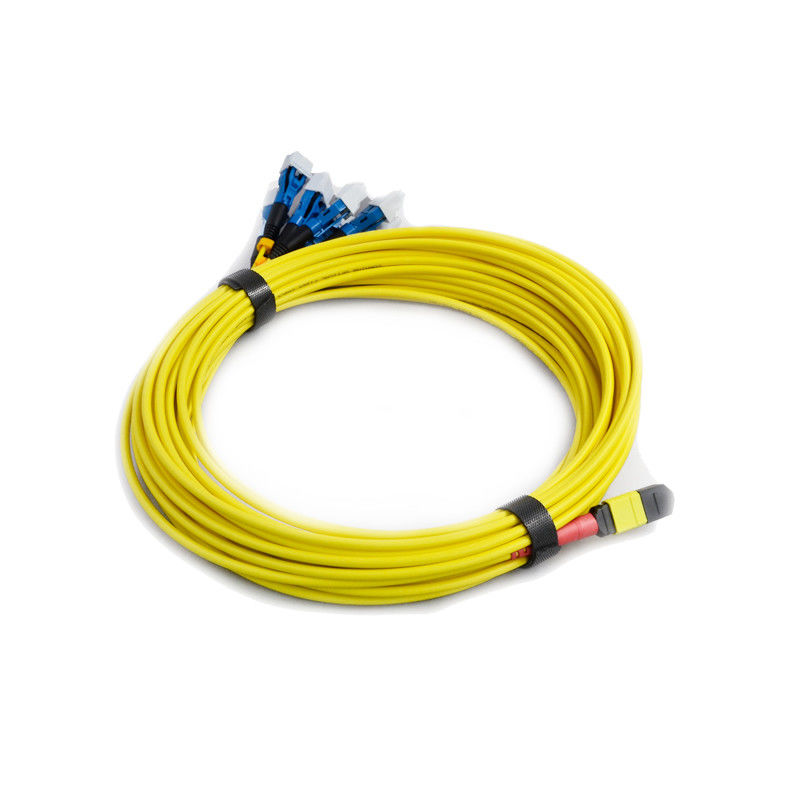

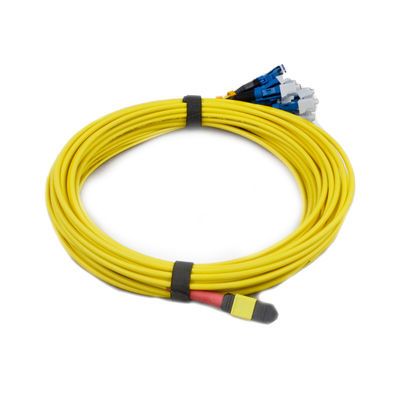

Highly Integrated 0.9mm MPO to LC Breakout Cable with Low Insertion Loss Fan Out Fiber Optic Cable

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Highly Integrated 0.9mm MPO to LC Breakout Cable with Low Insertion Loss Fan Out Fiber Optic Cable

Brand Name:	NEW LIGHT
Model Number:	MPO
MOQ:	100pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen , China

Certification:

CE , ISO , RoHS

Connector Type:

Mtp

Mode Type:

MM/SM

Cable Color:

8/12

Cable Diameter:

3.0mm 0.9mm

Cable Length:

15m/5m/10m

Insertion Loss:

≤0.35db

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

12000 pcs / day

Highlight:

LSZH MPO to LC breakout cable

WANS MPO to LC breakout cable

0.9mm Fan Out Fiber Optic Cable

Product Description

Highly Integrated MPO to LC Breakout Cable

0.9mm Fan Out Fiber Optic Cable with low insertion loss for high-density data center applications

Product Overview

Multi-mode low loss 8/12/24 core MPO/MTP to LC/SC/FC/ST breakout patch cords designed for QSFP and SFP modules in high-density wiring applications. These fanout hybrid patch cords feature an MPO connector on one end that fans out to multiple LC connectors on the other end.

With comprehensive design and manufacturing capabilities, we provide complete data center interconnection solutions including MPO/MTP trunk cables, harnesses, fanout patch cords, IP-series assemblies, high-density patch cords, loopbacks, cassettes, and patch panels.

Applications

High density architectures
Data communication networks
Optical system access networks
Storage area networking fiber channel
LANs / WANs / FTTX

Key Features

100% factory pre-terminated and tested for optimal performance
Rapid configuration and networking for time-saving installation
Supports 40G and 100G network applications
Multiple jacket materials available: LSZH, OFNR, OFNP
Available in 8-core, 12-core, and 24-core configurations

Product Specifications

Fiber Count	12
Fiber Mode	9/125μm SM
Connector Type 1	LC
Connector Type 2	Unterminated
Breakout Length	1.5m
Wavelength	1310/1550nm
Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB
Return Loss	≥ 50dB
Interchangeability	≤ 0.2dB
Vibration	≤ 0.2dB
Operating Temperature	-40°C to 75°C
Storage Temperature	-45°C to 85°C

Geometric Specifications

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10-25	(-50, +50)	None
2.5mm APC	≤50	5-12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7-25	(-50, +50)	None
1.25mm APC	≤50	5-12	(-50, +50)	8±0.2

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact Us: WHATSAPP +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-piece orders incur higher costs.

What is the pricing?

Pricing is quantity-dependent. We provide competitive pricing for bulk orders upon request with detailed specifications.

Can you quote FOB price?

While we can quote FOB, most shipments are via air couriers (DHL, TNT, UPS, FEDEX). We recommend EXW or CFR pricing for optimal freight solutions.

How is your quality control?

We adhere to IEC and European standards with near dust-free workshops, imported production equipment, and 100% product testing before delivery.

What is your lead time?

With three factories in China, we can process 5,000 patch cords in 2-3 working days. Regular products are typically in stock for urgent orders.

What is your warranty policy?

Patch cords carry a 2-year warranty for non-artificial damage. Artificial damage repairs are free, with freight costs covered by the customer.

What is your packaging?

We use international export packaging with optional custom logo printing available.

Do you offer OEM/ODM services?

Yes, we support OEM/ODM and can sign confidentiality agreements.

Can I request a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (freight paid by customer). Higher-value products require sample charges.

How do I place an order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance.

What are your payment terms?

T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
