MPO MTP Patch Cord

12 Fiber MTP Trunk Cable with 1310/1550nm Wavelength and ≤ 0.25dB Insertion Loss for Data Center

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

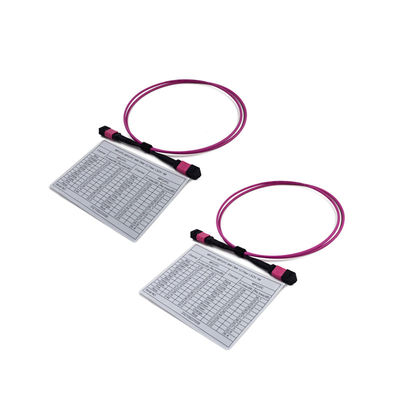

12 Fiber MTP Trunk Cable with 1310/1550nm Wavelength and ≤ 0.25dB Insertion Loss for Data Center

Brand Name:	NEW LIGHT
Model Number:	MPO
MOQ:	100pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen , China

Certification:

CE , ISO , RoHS

Connector Type:

Mtp

Mode Type:

MM/SM

Cable Color:

8/12

Cable Diameter:

3.0mm 0.9mm

Cable Length:

15m/5m/10m

Insertion Loss:

≤0.35db

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

12000 pcs / day

Highlight:

Data Center MPO MTP Trunk Cable

Polarity B MPO MTP Trunk Cable

PVC LSZH MPO MTP Trunk Cable

Product Description

PVC/LSZH MPO MTP Trunk Cable Elite Polarity B Key Up - Key Up For Data Center

Low insertion loss 3.0mm Elite polarity B Key up-key up trunk Cable for Data Center

Overview of Elite MTP/MPO -LC Fan out

MTP/MPO cables feature multi-core connectors that deliver consistent, reliable performance in high-density, low-loss cabling environments, making them essential for 40G/100G data transmission in large data centers. TIA standards define three polarized MTP cable types: A, B, and C, each with distinct applications. This product focuses on Type-B polarity MTP cables.

MTP/MPO Type-B Cable Overview

The Type-B polarity MTP cable uses key-up connectors on both ends. Commonly called 40G MTP cables, these assemblies connect directly between 40G QSFP+ optic transceivers. The "flipped" polarity creates a Pin 1 to Pin 12 relationship, ideal for parallel optics configurations where Tx and Rx don't alternate in a duplex pattern.

MTP/MPO Type-B Cable Categories

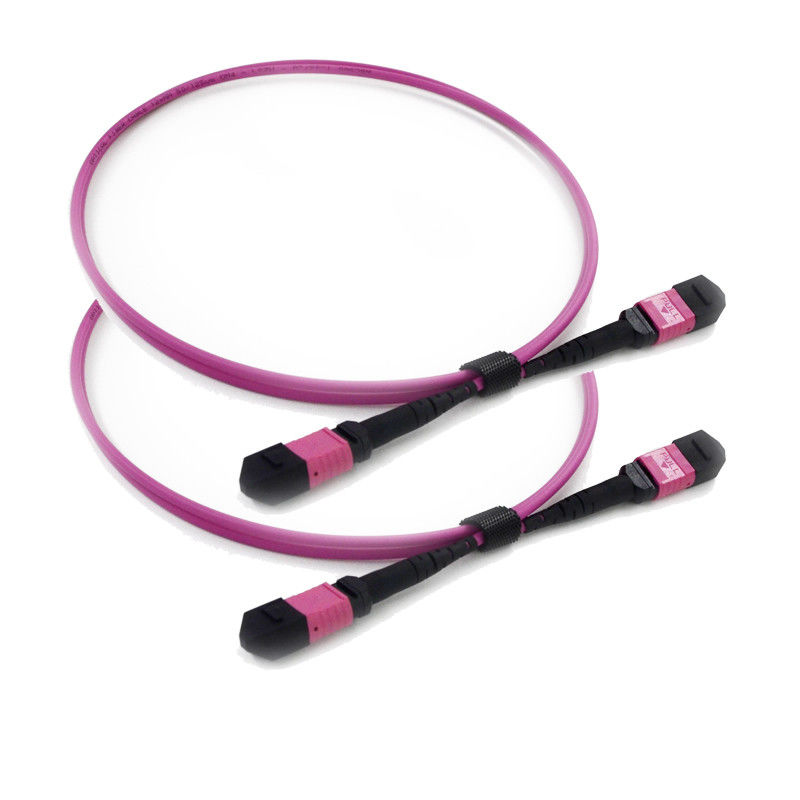

MTP Trunk cables: Divided into female-female, female-male, and male-male configurations

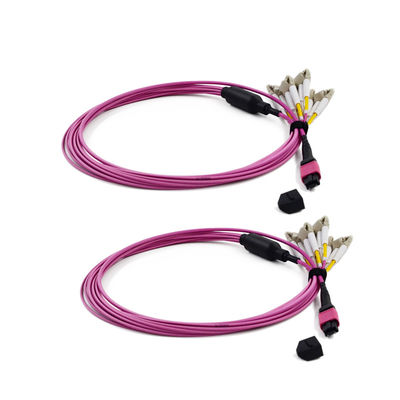

MTP-LC breakout cables: Available in female and male variants

Note: Female MTP connectors lack guide pins, while male connectors have two guide pins for precise alignment. Connected MTP connectors must be male-female pairs.

Product Specifications

Fiber count	12	Fiber Mode	9/125μm
Connector Type1	LC	Connector Type2	Unterminated
Breakout length	1.5m	Jacket Material	PVC/LSZH
Insertion loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return loss	≥ 50dB	Vibration	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C

Geometric Specification (3D interferometer tested)

Type	Vertex offset(um)	Curvature radius(mm)	Fiber Height(nm)	Angle offset(°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

Packaging

Products are securely packaged in OPP bags within carton boxes to prevent damage during shipping.

Frequently Asked Questions

1. Are you a manufacturer?

Yes, we are a manufacturer based in Shenzhen, China.

2. What's your MOQ?

Minimum order quantity can be 1 piece, but we recommend larger quantities for better pricing.

3. What's the price?

Prices vary by quantity - we provide customized quotes based on your order volume.

4. Can you quote FOB price?

We typically recommend EXW or CFR pricing for these products, but can discuss FOB options for large sea shipments.

5. How is your quality?

We produce to IEC standards using imported equipment in near dust-free environments, with 100% testing before shipment.

6. What's your lead time?

Standard products ship in 2-3 working days for quantities up to 5000 pieces, with expedited options available.

7. What's your warranty?

2-year warranty for non-artificial damage; free repairs for artificial damage (customer pays shipping).

8. What's your packing?

International export packaging with optional custom logo printing available.

9. Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

10. Can I have a sample?

Free samples available for some products (customer pays shipping); sample charges apply for high-value items.

11. How can I order?

Submit inquiry with product specifications and quantity
Receive customized quote
Confirm acceptance
We arrange production after payment
Confirm shipping details and provide tracking

12. What are your payment terms?

T/T, Western Union, PayPal, MoneyGram; large orders may require 50% deposit with balance before shipment.
