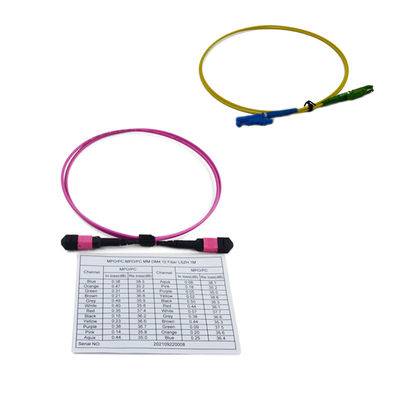

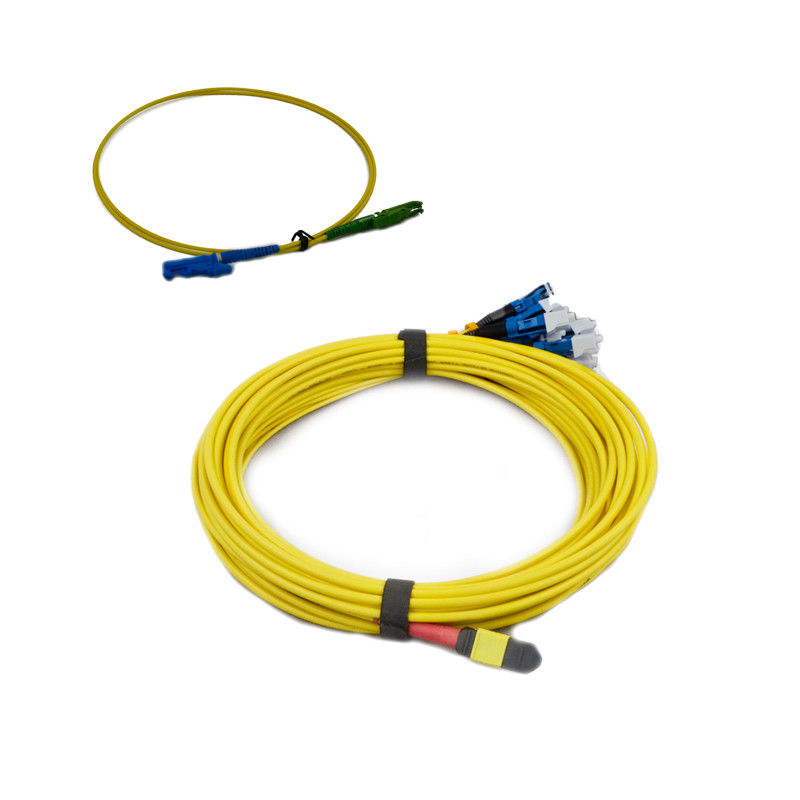

Low Insertion Loss ≤0.35dB MPO to LC Fiber Breakout Cable 3.0mm Diameter Compatible with Huawei QSFP

Brand Name:	NEW LIGHT
Model Number:	MPO
MOQ:	100pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen , China

Certification:

CE , ISO , RoHS

Connector Type:

Mtp

Mode Type:

MM/SM

Cable Color:

8/12

Cable Diameter:

3.0mm 0.9mm

Cable Length:

15m/5m/10m

Insertion Loss:

≤0.35db

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

12000 pcs / day

Highlight:

MM MPO to LC Fiber Cable

QSFP MPO to LC Fiber Cable

MPO LC Fiber Breakout Cable

Product Description

MM MPO to LC Fiber Breakout Cable - Huawei QSFP Compatible

Low insertion loss 3.0mm MPO to LC Fiber Cable Multimode Fiber Breakout Cable specifically designed for compatibility with Huawei QSFP transceivers.

Product Overview

This MPO to LC Fiber Breakout Cable is a pre-terminated cabling assembly that transitions from multi-fiber cables and array connectors to traditional single-fiber LC connectors. These cassettes are typically fitted with 12-fiber or 24-fiber MTP/MPO adapters, featuring LC adapters on the front and MTP/MPO at the rear.

Connection Methods

Method A MTP/MPO cassette creates a "key up to key down" connection between the internal MTP connector and the MTP array cable connector. Method B MTP/MPO cassette establishes a "key up to key up" connection.

Base-8 Polarity Solution

Base-8 infrastructure requires Type B components to maintain proper polarity. Base-8 MTP/MPO is SR4 and PLR4 ready, with backbone connectivity matching the fiber count of SR4 and PLR4 transceivers.

Base-12 Polarity Solution

Each 12-fiber MTP/MPO translates into six 2-fiber serial optical circuits, managed through various polarity methods.

Product Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type 1	LC	Connector Type 2	Unterminated
Fiber Mode	SM	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40°C to 75°C	Storage Temperature	-45°C to 85°C

Geometric Specifications

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10-25	(-50, +50)	None
2.5mm APC	≤50	5-12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7-25	(-50, +50)	None
1.25mm APC	≤50	5-12	(-50, +50)	8±0.2

Packaging

Products are securely packaged using OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact: WHATSAPP +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, though we recommend larger quantities for better pricing.

How is pricing determined?

Pricing is based on quantity - larger orders receive more competitive pricing.

What are your shipping options?

We primarily ship via air (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is recommended. Sea freight available for large volume orders.

What is your quality assurance process?

We follow IEC and European standards with imported production equipment. All products undergo 100% testing before delivery.

What is your production lead time?

Regular products are typically in stock. For custom orders, 5,000 pieces can be produced in 2-3 working days.

What is your warranty policy?

Patch cords include a 2-year warranty covering non-artificial damage from delivery date.

Do you offer OEM/ODM services?

Yes, we support OEM/ODM and can sign confidentiality agreements.

Can I request samples?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays shipping).

What are your payment terms?

We accept T/T, Western Union, PayPal, and MoneyGram. Large orders: 50% deposit, 50% balance before delivery.
