MPO MTP Patch Cord

3.0mm LSZH Round MPO MTP Patch Cord with Low Insertion Loss ≤0.35dB for 10G OM3 OM4 Multimode Applications

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

3.0mm LSZH Round MPO MTP Patch Cord with Low Insertion Loss ≤0.35dB for 10G OM3 OM4 Multimode Applications

Brand Name:	NEW LIGHT
Model Number:	MPO
MOQ:	100pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen , China

Certification:

CE , ISO , RoHS

Connector Type:

Mtp

Mode Type:

MM/SM

Cable Color:

8/12

Cable Diameter:

3.0mm 0.9mm

Cable Length:

15m/5m/10m

Insertion Loss:

≤0.35db

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

12000 pcs / day

Highlight:

duplex MPO MTP Patch Cord

LSZH Round MPO MTP Patch Cord

Multimode MTP MPO breakout cable

Product Description

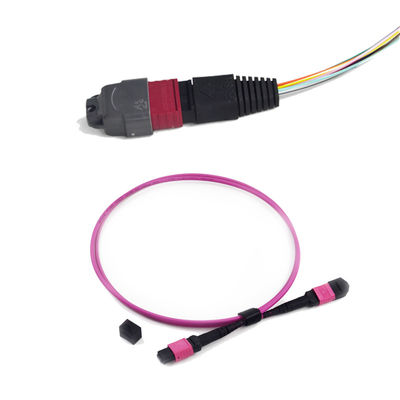

3.0mm LSZH Round MPO MTP Patch Cord Multimode Duplex 10G OM3 OM4

Product Overview

Low insertion loss 3.0mm 50/125 Multimode MPO-8LC Fiber Optic Patch Cord

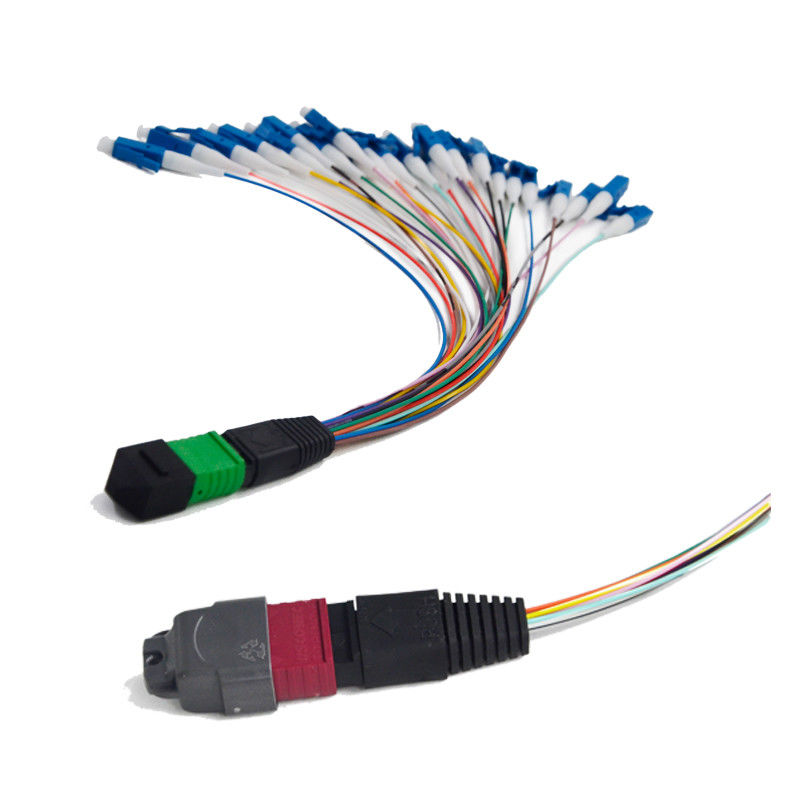

MTP/MPO harness cable, also known as MTP/MPO breakout cable or MTP/MPO fan-out cable, is a fiber optic cable terminated with MTP/MPO connectors on one end and various connector types (MTP/MPO/LC/FC/SC/ST/MTRJ) on the other end. The main cable features 3.0mm LSZH Round construction with 2.0mm breakout cables.

We provide MTP/MPO-8LC duplex 10G OM3 OM4 fiber optic patch cords for single mode, multimode, simplex, duplex, or multi-fiber applications. OEM services are available with customization options for cable length, color, cover materials, and packaging. All products are RoHS Compliant and undergo 100% insertion loss testing before shipment.

Key Features

Single mode and multi mode (flat) APC (8 degree angled) available
High fiber density (maximum 24 fibers for Multimode)
Fiber options: 4, 8, 12, 24 fibers per connector
Insert/Pull latching connector design
High reflection loss with APC connectors
Compliant with Telcordia GR-1435-CORE specification and RoHS standards

Applications

FTTH, CATV, LAN, MAN, WAN, Test & Measurement
Video transmission, Data transmission
Active Device Termination
Premise Installations
Telecommunication and Data processing Networks
Industrial, medical & military applications
Systems Integration for Long Haul, Metro and Access Networks

Product Specifications

Parameter	Value	Parameter	Value
Fiber Count	12	Fiber Mode	9/125μm
Connector Type 1	LC	Connector Type 2	Unterminated
Fiber Mode	SM	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

Geometric Specifications (3D Interferometer Tested)

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact Information

WHATSAPP: +8613534063703

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing as single unit costs are higher.

Q: What's the price?

A: Pricing depends on quantity. We provide competitive pricing for bulk orders upon request.

Q: Can you quote FOB price?

A: We primarily ship via air freight (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is recommended. For large sea shipments, we can provide freight quotes.

Q: How is your quality?

A: We follow IEC and European standards with near dust-free workshops, imported production equipment, and 100% testing before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are in stock.

Q: What's your warranty?

A: 2-year warranty for patch cords covering non-artificial damage. Artificial damage repairs are free but require customer to cover freight.

Q: What's your packing?

A: International export packaging with optional custom logo printing available.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). For high-value products, sample charges apply but are refundable with orders.

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing and lead time. Payment required before production begins.

Q: What are your payment terms?

A: T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
