LSZH 12 Color 1m Fiber Optic Pigtail with SC E2000 FC ST Connectors for Stable Performance

Brand Name:	New Light
Model Number:	SC / E2000 / FC / ST
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Name:

Fiber Optic Pigtail

Mode Type:

SM / MM

Cable Color:

Usual 12 Colors

Cable Diameter:

0.6mm Or 0.9mm

Insertion Loss:

≤0.25dB

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

1000000

Highlight:

LSZH Fiber Optic Pigtail

1m Fiber Optic Pigtail

12 Color Fiber Optic Tail

Product Description

LSZH 12 Color 1m Fiber Optic Pigtail SC / E2000 / FC / ST

This 12-fiber ribbon fan-out fiber optic pigtail is manufactured using ribbon cable technology and features a 1x12 fan-out configuration. Available in both single-mode and multimode versions with APC or UPC polish types, these pigtails undergo rigorous factory inspection and testing.

Product Applications

Fiber to The Home (FTTH)
Passive Optical Networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution

Key Features

Stable and reliable manufacturing process
Low insertion loss performance
Excellent random mating performance
High return loss capability
Available connector types: SC, FC, LC, ST, MU, E2000
Compatible cable types: G652D, G657A1, G657A2, G655, OM1, OM2, OM3, OM4
Multiple buffer options: tight buffer, semi-tight buffer, loose buffer

Technical Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type 1	LC	Connector Type 2	Unterminated
Fiber Mode	Single Mode	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40°C to 75°C	Storage Temperature	-45°C to 85°C

Geometric Specifications (3D Interferometer Tested)

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10-25	(-50, +50)	None
2.5mm APC	≤50	5-12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7-25	(-50, +50)	None
1.25mm APC	≤50	5-12	(-50, +50)	8±0.2

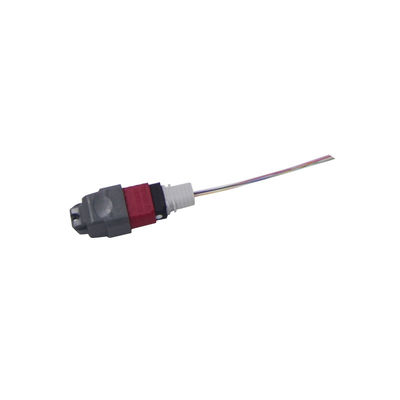

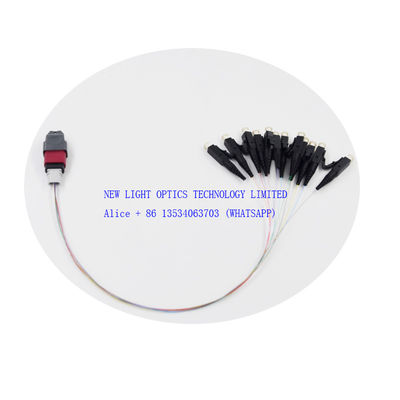

Product Images

Packaging

Products are securely packaged in OPP bags within carton boxes to ensure protection during delivery and transportation.

Contact: WHATSAPP 008613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity?

MOQ can be 1 piece, though larger quantities receive more competitive pricing.

How is your product quality?

Our production follows IEC and European standards in near dust-free workshops using imported equipment. All products undergo 100% testing before delivery.

What is your lead time?

We maintain three factories in China with rapid production capabilities. Standard products are typically in stock, with 2-3 working days for 5000 pieces of fiber optic patch cords.

What is your warranty policy?

We offer 2-year warranty for patch cords covering non-artificial damage. Artificial damage repairs are provided free of charge with customer covering freight costs.

Do you offer OEM/ODM services?

Yes, we provide comprehensive OEM/ODM services and can sign confidentiality agreements.

Can I request samples?

Free samples are available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer. For high-value products, sample charges apply but are refundable with orders.
