LC Connector Single Mode Fiber Optic Pigtail 0.9mm with Low Insertion Loss

Brand Name:	New Light
Model Number:	LC / APC , LC / PC
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Mode Type:

SM / MM

Cable Diameter:

0.6mm / 0.9mm

Cable Length:

Can Be Customized

Insertion Loss:

≤0.25dB

Return Loss:

APC≥65dB; PC≥55

Supply Ability:

1000000

Highlight:

LC Single Mode Fiber Optic Pigtail

0.9mm Single Mode Fiber Optic Pigtail

LC Connector Fiber Optic Pigtail

Product Description

LC Connector Single Mode Fiber Optic Pigtail

High-performance 0.9mm fiber optic pigtail with low insertion loss, designed for reliable optical connectivity in demanding applications.

Product Overview

Fiber optic pigtails are fundamental components in fiber communication systems, providing efficient connectivity between termination devices and central office equipment. These pigtails offer a practical solution for field installations and are manufactured to meet stringent industrial standards.

Key Features

High quality ferrule construction
Low insertion loss and high return loss
Excellent interchangeability and durability
Customizable to specific requirements
Compatible with Telcordia GR-326-core standards
Available in various connector types: SC, FC, LC, ST, MU, E2000
Multiple cable options: G652D, G657A1, G657A2, G655, OM1, OM2, OM3, OM4
Tight buffer, semi-tight buffer, and loose buffer configurations available

Product Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type	LC	Fiber Type	Single Mode
Breakout Length	1.5m	Wavelength	1310/1550nm
Insertion Loss	≤ 0.25dB	Return Loss	≥ 50dB
Operating Temperature	-40°C to 75°C	Storage Temperature	-45°C to 85°C

Geometric Specifications

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10-25	(-50, +50)	None
2.5mm APC	≤50	5-12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7-25	(-50, +50)	None
1.25mm APC	≤50	5-12	(-50, +50)	8±0.2

Applications

Local Area Networks (LAN)
Wide Area Networks (WAN)
CATV and Metro Test Equipment
Telecommunication Networks
Data Processing Networks
Premise Installations
Video and Military Active Device Termination

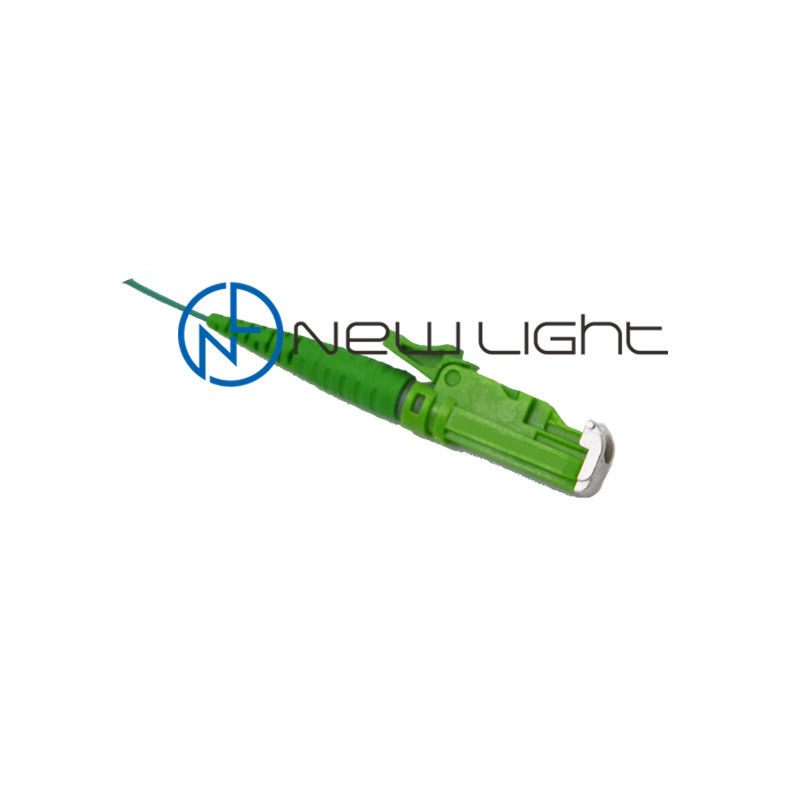

Product Illustration

Ordering & Delivery Information

Payment Methods: T/T, PayPal, Western Union, MoneyGram

Payment Terms: 30% deposit in advance, 70% balance before delivery

Packaging: International standard (OPP bag + Carton Box)

Delivery Time: 2-7 working days (depending on quantity)

Warranty: 1 year from delivery date

Shipping: Air (DHL, TNT, UPS, FedEx) or Sea (upon request)

Contact Information

WhatsApp: 008613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer based in Shenzhen, China.

What is your minimum order quantity?

MOQ can be 1 piece, but larger quantities receive better pricing.

How is your product quality?

We follow IEC and European standards with imported production equipment and 100% testing before delivery.

What is your lead time?

2-3 working days for 5000 pieces, with regular products available from stock.

What is your warranty policy?

2-year warranty for patch cords covering non-artificial damage.
