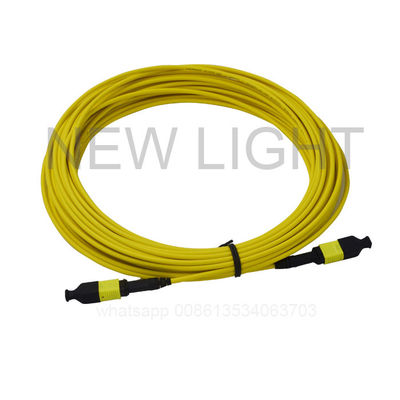

12 Core OM4 LSZH MPO MTP Cable Breakout Cable for High-Density Data Transmission

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Name:

MPO MTP Cable

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Connector:

MPO,MTP

Color:

Aqua,orange,yellow,Yellow/ Red/ Aqua

Supply Ability:

500 pcs per day

Highlight:

24 Core MPO MTP Cable

OM4 MPO MTP Cable

Duplex LC MPO Breakout Cable

Product Description

12 and 24 Core MPO MTP Cable - MPO to 4 Duplex LC Breakout Cable

High-density MPO to LC breakout cables designed for ultra-high-bandwidth data transmission applications in data centers and enterprise networks.

Quick Specifications

Cable Type: 3.2 mm round LSZH jacketed cable
Bandwidth Fiber: Multimode OM3 XG laser optimized ≥2000MHz*Km @850nm
Single Mode: OS2 ITU-T G.652d 9micron
Connector Type: High connectivity MPO
Connector Interface: MPO interface requirements: IEC61754-4.20 and IEC61754-7
Connector End Face: MPO end face geometry requirements: EN50377-15-1
Polishing Quality: Polished end-face quality: IEC61300-3-35
Insertion Loss: ≤ 0.5dB OM3 / ≤ 0.6dB SM OS2
Return Loss: ≥ 25dB OM3; ≥ 35dB

Product Overview

MTP/MPO cables are essential components in ultra-high-density cabling systems. They provide the additional bandwidth required for high-speed data transmission while offering benefits such as reduced installation time, tested and guaranteed quality, and enhanced reliability. These cables comply with 40GBASE-SR4 and 100GBASE-SR10 standards, with MTP/MPO multi-fiber connectors that accommodate 8, 12, or 24 fibers in a compact form factor similar to SC connectors, delivering significant space savings in circuit card and rack configurations.

Key Features

MPO/MTP connector interface patch cord
Customizable fiber optic cable lengths
Available in 12 and 24 core fiber configurations
Uses multi-mode 50/125um, OM3/OM4 bend-insensitive fiber or single-mode (G652D, G657A1) bend-insensitive fiber with 2mm diameter
Compliant with IEC 61754-7, Telcordia GR-1435-CORE
RoHS 6 compliant (lead-free)
Supports 40G LAN, 100G LAN or OTU4 100Gbps applications with flipped pairs (pin 1 to pin 2) and method A (key-up to key-down) MPO connectors

Standards Compliance

EIA/TIA-455-21A
TIA 604-5 (FOCIS 5)
Telcordia GR-326-CORE
IEC61754-7

Applications

Data Center Infrastructure
Storage Area Network - Fiber Channel
Parallel Optics
10Gbps, 25Gbps and emerging 40Gbps, 100Gbps Protocols

MPO MTP Cable Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector as well as standard versions of 0.6/0.75dB
Factory terminated and tested
Easy migration from 10GbE to 40GbE or 100GbE
Pulling eyes available as optional protection for fiber ends during installation

Technical Parameters

Item	Technical Parameters
Connector	MPO/MTP(F or M) \| MPO/MTP (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
Return Loss	SM:≥60dB; MM:≥35dB
The MPO end type	Male: with guide pin; Female: without guide pin
Fiber count	8,12&24 fiber
Connector type of the other end	MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type	250um ribbon fiber, ribbon cable, Bundle fiber optic cable

Polarity Methods

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact Information

WhatsApp: +8613534063703

Frequently Asked Questions

Q: Are you manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we don't recommend ordering single units as the cost per unit will be higher. Larger quantities receive more competitive pricing.

Q: What's the price?

A: Pricing depends on quantity. We provide our best pricing based on your order quantity, with significant discounts for larger volumes.

Q: Can you quote FOB price?

A: Yes, but due to the compact size and light weight of our products, most shipments are via air carriers (DHL, TNT, UPS, FEDEX, etc.). For large quantities requiring sea freight, we can provide CFR pricing. EXW or CFR pricing options are typically more suitable.

Q: How is your quality?

A: Our production follows IEC and European standards in near dust-free workshops. We use imported production and quality control equipment, including MTP Daisi equipment. All products undergo 100% testing before delivery.

Q: What's your lead time?

A: We operate three factories in China specializing in fiber optic cable production, patch cords, PLC, ODF, adapters, and attenuators. For fiber optic patch cords, we can process 5,000 pieces within 2-3 working days. Regular products are typically in stock, and we accommodate urgent orders.

Q: What's your warranty?

A: Patch cords come with a 2-year warranty from delivery date, covering non-artificial damage. For artificial damage, we provide free repairs with freight costs covered by the customer.

Q: What's your packing?

A: We use international export packaging and can print your logo on packaging materials upon request.

Q: Can you do OEM/ODM?

A: Yes, as a manufacturer we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: For adapters, attenuators, patch cords, and pigtails, we provide free samples with freight paid by the customer. For higher-value products, sample charges and freight apply initially, with sample charges refunded upon order placement.
