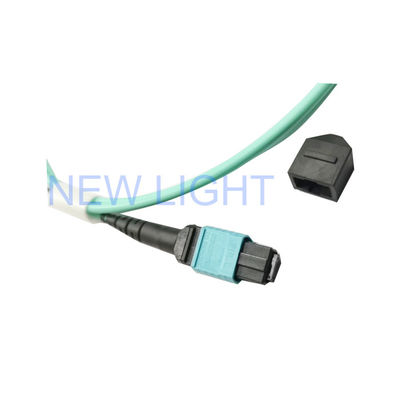

Female MTP to LC 8 Strand OM3 50uM Plenum MTP Breakout Cable for High-Speed Data Transmission

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Female MTP to LC 8 Strand OM3 50uM Plenum MTP Breakout Cable for High-Speed Data Transmission

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Name:

MPO MTP Cable

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Connector:

MPO,MTP

Color:

Aqua,orange,yellow,Yellow/ Red/ Aqua

Supply Ability:

500 pcs per day

Highlight:

Female MTP To LC cable

OM3 MTP To LC cable

2mm MTP Breakout cable

Product Description

Product Overview

Female MTP to LC Cable 8 Strand OM3 50µm Plenum 18" 2mm MTP Breakout Cable

Product Description

MTP Female to LC 8-Strand OM3 50µm PLENUM 18" 2mm breakout cable designed for high-performance data transmission applications.

Fiber Technology

Multi-mode fibers are characterized by their core and cladding diameters. The 62.5/125 µm multi-mode fiber features a 62.5 micrometres (µm) core size and 125 µm cladding diameter. These fibers utilize either step-index or graded-index profiles, each offering distinct dispersion characteristics and effective propagation distances.

Applications

Telecommunication networks
Data centers
SFP, QSFP, CFP applications
40G to 10G transition
CATV systems
Active device termination
Metro networks
Local Area Networks
Data processing networks
Test equipment
Premise installation
Wide Area Networks

MPO MTP Cable Overview

New Light 40G parallel networks are established using MPO trunk cables and MPO patch cables connected via MPO adapter modules. Direct connections between 40G or 100G ports are achieved using the same MPO patch cables. These products are part of our M400 Series.

Typically employing MPO 12-fiber connectors and 12-fiber cables, these solutions utilize only 8 fibers for SR4 40G or 100G Ethernet transmission. The 12-fiber configuration offers enhanced flexibility for duplex 10G networking applications with minimal cost difference.

Key Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector with standard versions of 0.6/0.75dB
Factory terminated and tested
Easy migration from 10GbE to 40GbE or 100GbE
Optional pulling eyes for fiber end protection during installation

Technical Parameters

Parameter	Specification
Connector	MPO/MTP (F or M)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, Bundle fiber optic cable

Polarity Methods

Three polarity methods (Type A, Type B and Type C) ensure proper bi-directional allocation for optimal network performance.

Packaging

Products are securely packaged using OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact: WhatsApp +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, though we recommend larger quantities for better pricing.

What's the price?

Pricing varies by quantity. We provide competitive pricing for bulk orders.

Can you quote FOB price?

Yes, though we typically recommend EXW or CFR pricing for optimal freight solutions.

How is your quality?

We adhere to IEC and European standards with imported production equipment and 100% testing before delivery.

What's your lead time?

2-3 working days for 5000 pieces, with regular products available from stock.

What's your warranty?

2-year warranty for patch cords covering non-artificial damage.

What's your packing?

International export packaging with optional custom logo printing available.

Can you do OEM/ODM?

Yes, we support OEM/ODM services and can sign confidentiality agreements.

Can I have a sample?

Free samples available for certain products with freight prepaid by customer.

How can I order?

Send inquiry with product specifications and quantity. We'll provide pricing and lead time.

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% before delivery.
