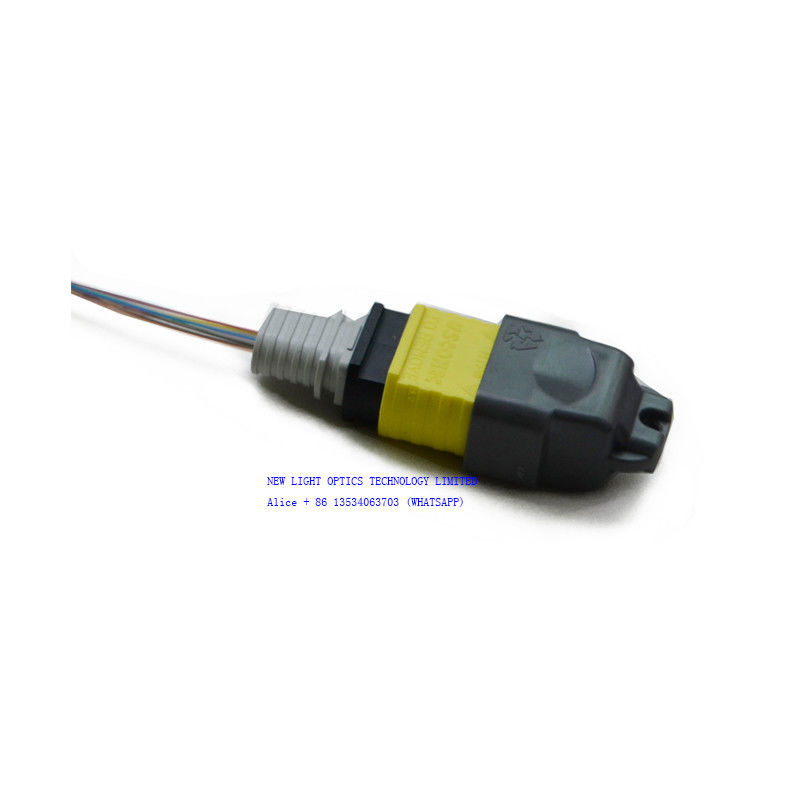

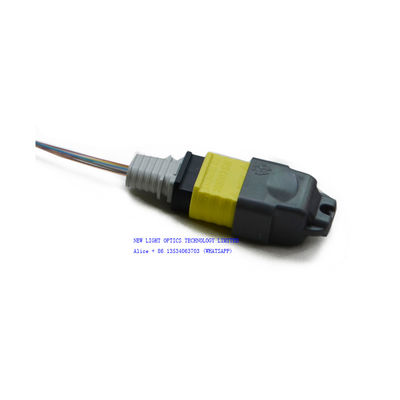

Female MPO MTP Cable OM3 50uM Plenum MPO Harness Fiber Optic Cable

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Name:

MPO MTP Cable

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Connector:

MPO,MTP

Color:

Aqua,orange,yellow,Yellow/ Red/ Aqua

Supply Ability:

500 pcs per day

Highlight:

OM3 50uM MPO MTP Cable

OM3 50uM MTP To LC Cable

50uM MPO Harness Cable

Product Description

Female MPO MTP Cable 8 Strand OM3 50uM Plenum MPO Harness Cable

Product Overview

New Light factory pre-terminated 50/125 Multimode OM4 MPO to 4xLC Duplex (8xLC) fiber optic harness cable, offering consistent quality, faster installation, and simplified cable management. This OM4 MPO to 4xLC Duplex harness cable is ideal for 40G QSFP eSR4 to 10GBASE-SR optics interconnection.

Key Features

Color coded connector housings: Green for SM, Yellow for SM Super Low loss, Beige for MM, Aqua for OM3 Fiber, Heather-Violet for OM4 Fiber
Available capacities: 4, 8, 12 and 24 strands
Ferrules available for SM Standard, SM Super Low Loss, MM Standard and MM Low Loss
Boot options: Ribbon Cable, Ribbon Fiber and Round boot
US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector as well standard versions of 0.6/0.75dB
Factory terminated and tested
Easy migration from 10GbE to 40GbE or 100GbE
Optional pulling eyes for fiber protection during installation

Applications

Telecommunication networks
Data centers
Supports SFP, QSFP, CFP applications
40G to 10G transition
CATV systems
Active device termination
Metro networks
Local Area Networks
Data processing networks
Test equipment
Premise installation
Wide Area Network

Technical Parameters

Item	Technical Parameters
Connector	MPO/MTP(F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM:≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM:≥60dB; MM:≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Type (Other End)	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, Bundle fiber optic cable

Polarity Methods

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery.

Contact: WhatsApp +8613534063703

Frequently Asked Questions

Are you manufacturer?

Yes, we are manufacturer in Shenzhen, China

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing

What's the price?

Pricing depends on quantity - contact us with your requirements for competitive pricing

How is your quality?

Production follows IEC and European standards in near dust-free workshops with imported equipment. All products are 100% tested before delivery.

What's your lead time?

2-3 working days for 5000 pieces of fiber optic patch cords. Regular products are in stock.

What's your warranty?

2 years warranty for patch cords for non-artificial damage

Can you do OEM/ODM?

Yes, we accept OEM/ODM and can sign confidentiality agreements

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, pigtails (freight paid by customer)
