8 Core Female MTP to LC Cable Polarity B Plenum OM4 Mode Type Fiber Optic Cable

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

8 Core Female MTP to LC Cable Polarity B Plenum OM4 Mode Type Fiber Optic Cable

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Name:

MPO MTP Cable

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

8 Core

Connector:

Color:

Aqua,orange,yellow,Yellow/ Red/ Aqua

Supply Ability:

500 pcs per day

Highlight:

8 Core Female MTP To LC Cable

OM4 MTP Fanout Cable

OM4 MTP Fiber Optic Cable

Product Description

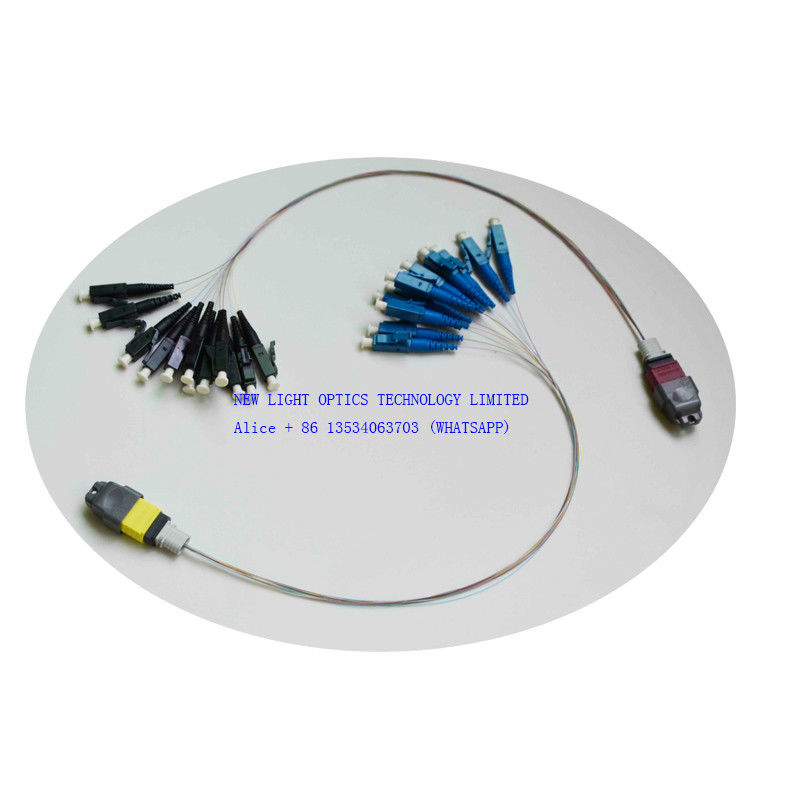

8 Core Female MTP to LC Cable Polarity B Plenum OM4 Mode Type

Factory-terminated MTP to LC fiber optic cable assembly featuring Polarity B configuration and OM4 multimode fiber with plenum-rated LSZH jacket.

Key Features

Factory-terminated for consistent quality, high performance, and reduced installation time
100% tested for low insertion loss performance and high return loss
MPO Female to 4 x LC duplex harness cable configuration
Suitable for MPO applications in high-density environments
OM4 50/125μm multimode fiber (OM3 compatible)
Type B polarity for 40G QSFP eSR4 and 10GBASE-SR optics interconnect
Optimized performance with elite MTP and discrete premium connector options
Compliant with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS standards
LSZH (Low Smoke Zero Halogen) jacket by default

MPO/MTP Cable Overview

MPO fiber patch cables are compliant with IEC-61754-7 and TIA-604-5 (FOCIS-5) standards, designed for high-density fiber optic applications.

Harness vs. Trunk Cables

MTP/MPO Harness Cables: Designed for high-density applications requiring high performance and speedy installation. Provide transition from multi-fiber cables to individual fibers or duplex connectors.

MTP/MPO Trunk Cables: Serve as permanent links connecting MTP/MPO modules, offering excellent benefits in on-site installation time and space saving.

40G/100G Ethernet Applications

The laser-optimized multimode 40G/100G structured cabling employs parallel optics transmission. MPO technology enables parallel optics deployment as specified in IEEE-802.3ba standard:

• 40G Ethernet: Uses four 10G channels to transmit and four 10G channels to receive over 12-fiber MPO connector

• 100G Ethernet: Uses ten 10G channels to transmit and ten 10G channels to receive over 24-fiber MPO connector

Technical Specifications

Parameter	Specification
Connector	MPO/MTP (F or M)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Modes	Single-mode (G652, G655, G657), multimode (50, 62.5, OM2, OM3, OM4)
Cable Types	250μm ribbon fiber, ribbon cable, bundle fiber optic cable

Polarity Methods

Type A, Type B, and Type C polarity methods ensure proper bi-directional signal allocation in fiber optic systems.

Packaging

Products are packaged in OPP bags with protective carton boxes to ensure safe delivery and prevent damage during transportation.

Contact: WhatsApp +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer based in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

How is pricing determined?

Pricing is based on quantity - larger orders receive more competitive pricing.

Can you provide FOB pricing?

Yes, but due to product size, most shipments are via air courier. EXW or CFR pricing is typically more suitable.

What is your quality assurance process?

We follow IEC and European standards in near dust-free workshops with imported production equipment. All products are 100% tested before delivery.

What is your production lead time?

We maintain three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces, with many regular products in stock.

What is your warranty policy?

Patch cords carry a 2-year warranty for non-artificial damage from delivery date.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays shipping).
