|Name:||MPO MTP Cable||Material:||LSZH, OFNP Or OFNR|
|Mode Type:||OM4||Core Type:||8 Core|
|Connector:||MTP||Color:||Aqua,orange,yellow,Yellow/ Red/ Aqua|
8 Core Female MTP To LC Cable,
OM4 MTP Fanout Cable,
OM4 MTP Fiber Optic Cable
8 Core Female MTP To LC Cable Polarity B Plenum OM4 Mode Type
Female MTP To LC Cable Polarity B Plenum mtp fiber optic cable
Features OF MTP To LC Cable
• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high return loss

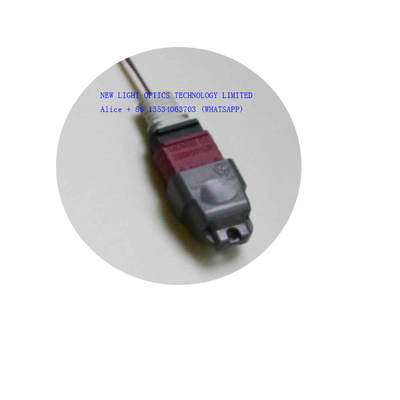

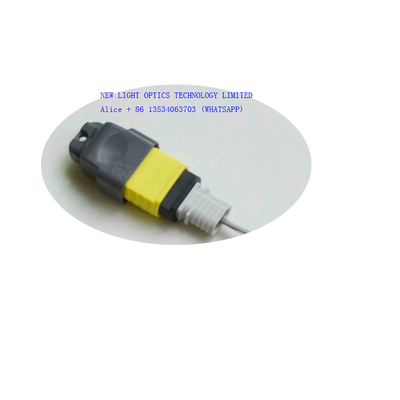

• MPO Female to 4 x LC duplex harness cable
• Suitable for MPO application
• OM4 (OM3) 50/125μm Fiber
• Type B polarity, used for 40G QSFP eSR4 and 10GBASE-SR optics interconnect
• Optimized performance – available in elite MTP and discrete premium connector upon request
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
• LSZH Jacket by Default
MPO fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard. It can be widely used for
MPO MTP Cable Overview
New Light factory MTP/MPO harness cables and MTP/MPO trunk cables are two common kinds of MTP/MPO fiber cables. They differ from each other in such aspects as function and application.
MTP/MPO harness cables are designed for high density applications requiring high performance and speedy installation. Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. Therefore, they can meet a variety of fiber cabling requirements.
MTP/MPO trunk cables are designed for high density applications which offer excellent benefits in terms of on-site installation time and space saving. Trunk cables serve as a permanent link connecting the MTP/MPO modules to each other.
The laser optimized multimode 40G/100G structured cabling employs parallel optics transmission. MPO is one of the complementary technologies which enables the development and deployment of parallel optics device. Designated within IEEE-802.3ba standard for next generation 40G/100G Ethernet transmission speeds, it specifies to form a 40G Ethernet by using four 10G channels to transit and four 10G channels to receive over a 12 fiber MPO connector. Likewise, a 100G Ethernet is to use ten 10G channels to transmit and ten 10G channel to receive over a 24 fiber MPO connector.
MPO MTP Cable Technical Parameter
|Connector||MPO/MTP(F or M)||MPO/MTP (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|
|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
