24 Core OM3 OM4 RoHS Compliant MPO MTP Fiber Cable for High-Speed Data Transmission

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Name:

MPO MTP Cable

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

24 Core

Connector:

Color:

Aqua,orange,yellow,Yellow/ Red/ Aqua

Supply Ability:

500 pcs per day

Highlight:

OM4 RoHS MPO MTP Cable

OM3 RoHS MPO MTP Cable

OM3 OM4 MPO LC Breakout Cable

Product Description

24 Fibers OM3 OM4 RoHS MPO MTP Cable 24 Core Multimode Strands

Product Overview

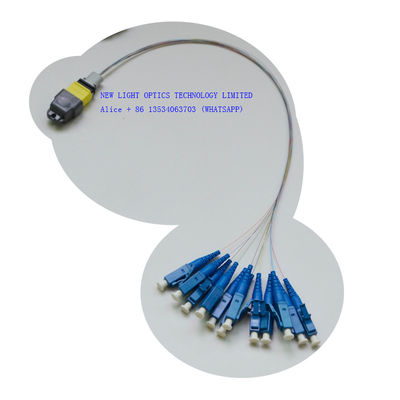

The NEW LIGHT OPTICS MTP/MPO harness cables are breakout/fanout fiber assemblies featuring one MTP/MPO connector on one end and multiple single-fiber connectors (LC, SC, ST, FC) on the other end. Designed for efficient data distribution and routing to patch panels, these assemblies support 10G/25G Ethernet and enable seamless migration to higher-speed 40G/100G Ethernet networks.

Key Features

Insertion loss options: Standard, Elite / Low Loss
Fiber counts: 8, 12, 24 cores
MTP/MPO connector types: Male, Female
Fiber types: Single-mode (G652D, G657A1, G657A2), Multimode (OM1, OM2, OM3, OM4)
Cable jacket types: OFNR, LSZH, OFNP
Fanout lengths: 0.5m, 1m, and custom options
Multi-fiber connectors: MTP, MPO with APC or PC polishing
Single-fiber connectors: LC, SC with APC or UPC polishing
Overall cable length: 1 to 999 meters
Factory terminated and tested for guaranteed quality
High-density design for space optimization
Compliant with Telcordia GR-1435-CORE, GR-2866-CORE, GR-326-CORE, RoHS standards

Performance Specifications

Factory-terminated for consistent quality and reduced installation time
100% tested for low insertion loss and high return loss performance
MPO Female to 4 x LC duplex harness cable configuration
OM4 (OM3) 50/125μm Fiber compatibility
Type B polarity for 40G QSFP eSR4 and 10GBASE-SR optics interconnect
Optimized performance with elite MTP and discrete premium connector options
Compliant with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
LSZH Jacket standard

Applications

Data Center Interconnect
Backbone Installations
Telecommunication Networks
LAN/WAN Premises

Technical Parameters

Parameter	Specification
Connector	MPO/MTP (Female or Male)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	Single-mode: ≤ 0.75dB (standard), ≤0.35dB (typical) Multimode: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	Single-mode: ≥60dB Multimode: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652,G655,G657), Multimode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, Bundle fiber optic cable

Polarity Methods

The three polarity methods Type A, Type B and Type C ensure proper bi-directional allocation for optimal network performance.

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact Information

WhatsApp: +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer based in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing varies by quantity. Contact us with your specific requirements for competitive pricing.

Can you quote FOB price?

We typically ship via air freight (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is preferred for most orders.

How is your quality?

We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

What's your lead time?

Regular products are in stock. Custom orders: 2-3 working days for 5000 pieces. We accommodate urgent orders.

What's your warranty?

2-year warranty for patch cords covering non-artificial damage.

What's your packing?

International export packaging with optional logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (freight paid by customer).

How can I order?

Send requirements via email or inquiry. We'll provide pricing and lead time. Payment required before production.

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
