|Name:||MPO MTP Cable||Material:||LSZH, OFNP Or OFNR|
|Mode Type:||OM3||Core Type:||24 Core|
|Connector:||MTP||Color:||Aqua,orange,yellow,Yellow/ Red/ Aqua|
OM4 RoHS MPO MTP Cable,
OM3 RoHS MPO MTP Cable,
OM3 OM4 MPO LC Breakout Cable
24 Fibers OM3 OM4 RoHS MPO MTP Cable 24 Core Multimode Strands
24 Fibers OM4 Multimode Strands OM3 Polarity B Plenum mpo lc breakout cable
Description OF MPO LC Breakout Cable

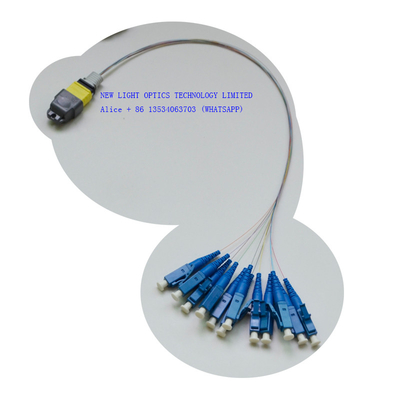

The NEW LIGHT OPTICS MTP/MPO harness cables are a kind of breakout/fanout MPO cable assembly with one MTP/MPO connector on one end and multiple single-fiber connectors (LC, SC, ST, FC, etc.) on the other end, designed for data distribution and routing to patch panels. These cable assemblies meet the demands of 10G/25G Ethernet, higher speed 40G/100G Ethernet, and can be used for standards-compliant cable plant migration from 10G/25G to 40G/100G. The Opticking harness cables are fully configurable, available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material. With highly integrated design and manufacturing capability, Opticking provides customized MTP/MPO harness cables which are 100% tested to deliver optimal performance and reliability.
Insertion loss type available in Standard, Elite / Low Loss
Fiber count available in 8, 12, 24
MTP/MPO connector type available in Male, Female
Fiber type available in SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4)
Cable jacket type available in OFNR, LSZH, OFNP
Fanout length available in 0.5m, 1m, etc.
Multi-fiber connector type available in MTP, MPO with APC or PC polishing type

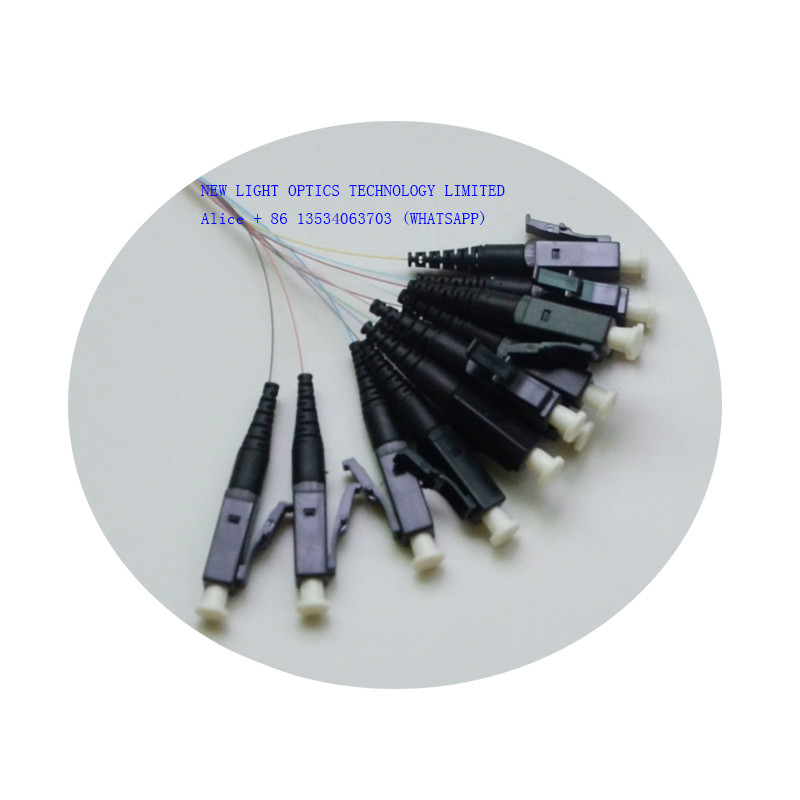

Single-fiber connector type available in LC, SC with APC or UPC polishing type
Overall cable length available in 1 to 999 meters
Factory terminated & tested with guaranteed quality
High density to dramatically save space
Comply with Telcordia GR-1435-CORE, GR-2866-CORE, GR-326-CORE, RoHS
Data Center Interconnect
• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high return loss
• MPO Female to 4 x LC duplex harness cable
• Suitable for MPO application
• OM4 (OM3) 50/125μm Fiber
• Type B polarity, used for 40G QSFP eSR4 and 10GBASE-SR optics interconnect
• Optimized performance – available in elite MTP and discrete premium connector upon request
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
• LSZH Jacket by Default
MPO fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard. It can be widely used for
MPO MTP Cable Overview
New Light factory MTP/MPO harness cables and MTP/MPO trunk cables are two common kinds of MTP/MPO fiber cables. They differ from each other in such aspects as function and application.
MTP/MPO harness cables are designed for high density applications requiring high performance and speedy installation. Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. Therefore, they can meet a variety of fiber cabling requirements.
MTP/MPO trunk cables are designed for high density applications which offer excellent benefits in terms of on-site installation time and space saving. Trunk cables serve as a permanent link connecting the MTP/MPO modules to each other.
The laser optimized multimode 40G/100G structured cabling employs parallel optics transmission. MPO is one of the complementary technologies which enables the development and deployment of parallel optics device. Designated within IEEE-802.3ba standard for next generation 40G/100G Ethernet transmission speeds, it specifies to form a 40G Ethernet by using four 10G channels to transit and four 10G channels to receive over a 12 fiber MPO connector. Likewise, a 100G Ethernet is to use ten 10G channels to transmit and ten 10G channel to receive over a 24 fiber MPO connector.
MPO MTP Cable Technical Parameter
|Connector||MPO/MTP(F or M)||MPO/MTP (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|

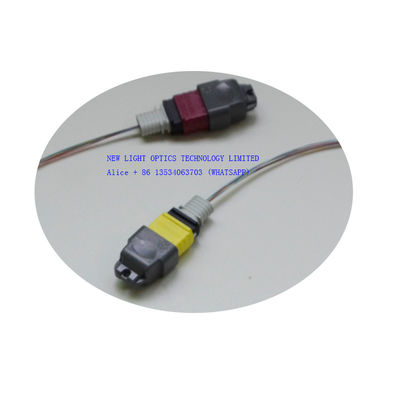

|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
