|Name:||MPO MTP Cable||Material:||LSZH, OFNP Or OFNR|
|Mode Type:||OM3 OM4 OS2||Core Type:||12 /24core|
|Connector:||MTP/MPO||Color:||Aqua,orange,yellow,Yellow/ Red/ Aqua|
OM3 40G MPO Cable,
Polarity A Plenum OM4 MPO Cable,
12 Fibers 40G OM3 MPO Cable
12 Fibers 40G MPO Cable OM3 OM4 Multimode Strands Polarity A Plenum
24 Fibers OM4 Multimode Strands OM3 Polarity B Plenum mpo lc breakout cable
The NEW LIGHT OPTICS OM4 Fiber Cable is used for high speed fiber optic networking applications in buildings, data centers, telecommunications, etc, also referred to as MM, MMode. It is typically used for vertical pathways, shafts, and spaces between building floors. This LC fiber jumper is designed for performance and built to last in rough, high density cable environments, most commonly used for schools, healthcare facilities, and government buildings.
OM4 Multi Fiber Patch Cable is manufactured with the highest quality corning optical fiber. Connector 1 is terminated with a MTP female (no pins) multi-fiber push-on style contact connection. Connector 2 is also terminated with a MTP female (no pins) multi-fiber push-on style contact connection for reliable connectivity in compact, high density fiber patch cable environments. Each MPO/MTP multi-fiber connector has 12 x 50/125 optical fiber strands in a plenum jacket that is fire retardant, water resistant and free from electromagnetic interference.
Manufactured using NEW LIGHT OPTICS TECHNOLOGY LIMITED Premium OM3 fiber, standard jacket Plenum MPO Cable w/FiberShield is designed for light to medium duty indoor applications such as data-center racks and desktop/network connections. Optional MTP Elite (US Conec) low loss connectors available. PFPM-JM312NXP05 is ROHS compliant according to ROHS2011/65/EU and come with a 10 year warranty. Images are for illustrative purposes only
• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high return loss

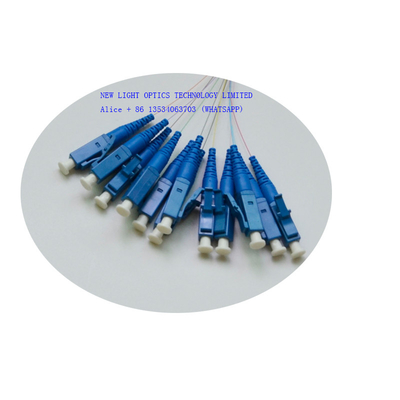

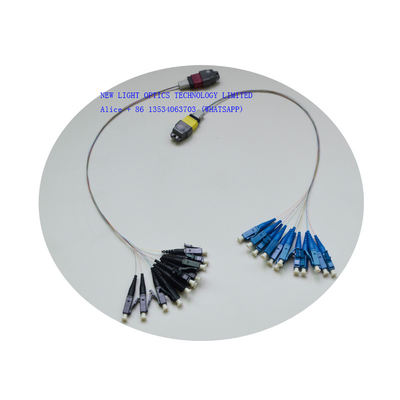

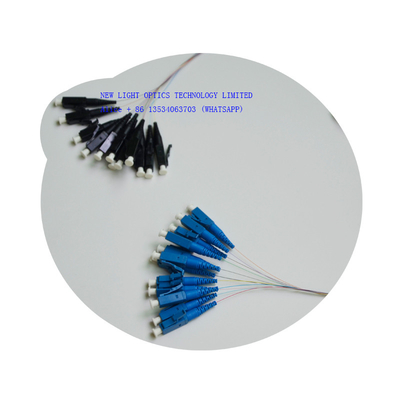

• MPO Female to 4 x LC duplex harness cable
• Suitable for MPO application
• OM4 (OM3) 50/125μm Fiber
• Type B polarity, used for 40G QSFP eSR4 and 10GBASE-SR optics interconnect
• Optimized performance – available in elite MTP and discrete premium connector upon request
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
• LSZH Jacket by Default
MPO fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard. It can be widely used for
MPO MTP Cable Overview
New Light factory MTP/MPO harness cables and MTP/MPO trunk cables are two common kinds of MTP/MPO fiber cables. They differ from each other in such aspects as function and application.
MTP/MPO harness cables are designed for high density applications requiring high performance and speedy installation. Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. Therefore, they can meet a variety of fiber cabling requirements.
MTP/MPO trunk cables are designed for high density applications which offer excellent benefits in terms of on-site installation time and space saving. Trunk cables serve as a permanent link connecting the MTP/MPO modules to each other.
The laser optimized multimode 40G/100G structured cabling employs parallel optics transmission. MPO is one of the complementary technologies which enables the development and deployment of parallel optics device. Designated within IEEE-802.3ba standard for next generation 40G/100G Ethernet transmission speeds, it specifies to form a 40G Ethernet by using four 10G channels to transit and four 10G channels to receive over a 12 fiber MPO connector. Likewise, a 100G Ethernet is to use ten 10G channels to transmit and ten 10G channel to receive over a 24 fiber MPO connector.
MPO MTP Cable Technical Parameter
|Connector||MPO/MTP(F or M)||MPO/MTP (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|
|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
