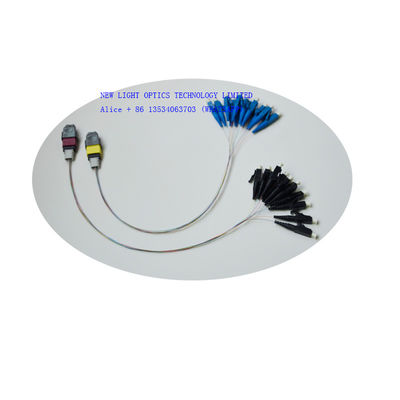

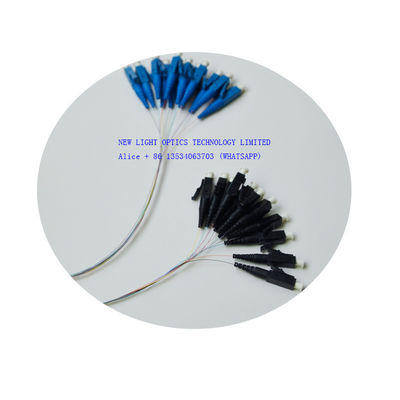

12 Core OM4 MPO MTP Cable Plenum Rated Fiber Optic Patch Cable for High-Density Applications

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

12 Core OM4 MPO MTP Cable Plenum Rated Fiber Optic Patch Cable for High-Density Applications

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Name:

MPO MTP Cable

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Connector:

MTP Mpo

Color:

Aqua,orange,yellow,Yellow/ Red/ Aqua

Supply Ability:

500 pcs per day

Highlight:

OM4 MPO MTP Cable

OM4 MTP To LC Cable

OFNR Hybrid Fiber Cable

Product Description

12 Core Female OM4 MPO MTP Cable Polarity B Plenum Hybrid Fiber Cable

Product Overview

This 12-core Female MTP to LC Cable with Polarity B and Plenum-rated hybrid fiber cable features industry-best OM4 fiber optics for high-performance data transmission.

Key Features

MTP connector with removable housing for re-polishing and gender change capability
Three-fold benefit metal pin clamp: centering spring force, eliminates lost pins, prevents fiber damage
Space-saving 12 fibers (6 duplex channels) in single connector
Compact design for high fiber-count applications with space limitations
Easy installation and removal with push-pull latching
Standard Plenum-rated aqua jacket

Performance Specifications

OM4 50/125µm multimode fiber glass delivers exceptional performance:

1Gbps transmission: Up to 1100 meters at 850nm, 550 meters at 1300nm
10Gbps transmission: Up to 550 meters at 850nm

Physical Specifications

Fiber Count: 12 fibers
Nominal Diameter: 3.0mm
Weight: 6.0 lbs
Bend Radius: 1.8in (Installation), 1.2in (Long-term)

Standards Compliance

MPO fiber patch cable is compliant with IEC-61754-7 and TIA-604-5 (FOCIS-5) standards, supporting 40G/100G Ethernet transmission as specified in IEEE-802.3ba standard.

Technical Parameters

Item	Technical Parameters
Connector	MPO/MTP (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Modes	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)

Polarity Methods

Type A, Type B and Type C polarity methods ensure proper bi-directional allocation for reliable connectivity.

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact Information

WhatsApp: +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-piece orders incur higher costs.

What's the price?

Pricing depends on quantity. We provide competitive pricing for larger orders upon request.

Can you quote FOB price?

We primarily ship via air couriers (DHL, TNT, UPS, FEDEX). For large shipments, we can provide sea freight options. EXW or CFR pricing is preferred.

How is your quality?

We follow IEC and European standards with near dust-free workshops, imported production equipment, and 100% testing before delivery.

What's your lead time?

Standard products are in stock. Custom orders: 2-3 working days for 5000 pieces. We accommodate urgent orders.

What's your warranty?

2-year warranty for patch cords covering non-artificial damage. Artificial damage repairs are free, but customer covers freight.

What's your packing?

International export packaging with optional custom logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). High-value products require sample charge.

How can I order?

Send inquiry with product specifications and quantity. We provide quotation, proforma invoice, and arrange production upon payment confirmation.

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
