|Name:||MPO MTP Cable||Material:||LSZH, OFNP Or OFNR|
|Mode Type:||OM4||Core Type:||12 Core|
|Connector:||MTP Mpo||Color:||Aqua,orange,yellow,Yellow/ Red/ Aqua|
MPO Fiber Optic Trunk Cable,
OM3 Fiber Optic Trunk Cable,
OM3 12 Core Fiber Cable
12 Core MPO Fiber Optic Trunk Cable OS2 OM3 Female Polarity B Plenum
12 core OS2 OM3 Female Polarity B Plenum mtp 24 core fiber optic cable
Features 12 Core Fiber Optic Cable
NEW LIGHT OPTICS TECHNOLOGY LIMITED MTP® trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP® connectors and Corning ClearCurve® fiber, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors
40G transceivers that require fibre cables with MTP connectors only need 8 fibres to operate so it would make sense to assume that MTP cables for 40G transceivers have 8 fibre MTP connectors and use 8 fibre cable. However, MTP connectors are also used in 10G networking where the 12 fibre MTP connector is used along with 12 fibre cable. To make it easier for manufacturers, most only use the 12 fibre connector as this will work in all applications and then choose where to use this with either 8 fibre or 12 fibre cable. So a 12 fibre MTP cable with the correct polarity will work in exactly the same way when used in a 40G transceiver as an 8 fibre cable. The only difference is that 4 of the fibres will not be used (they will be dark).
MPO MTP Cable Overview

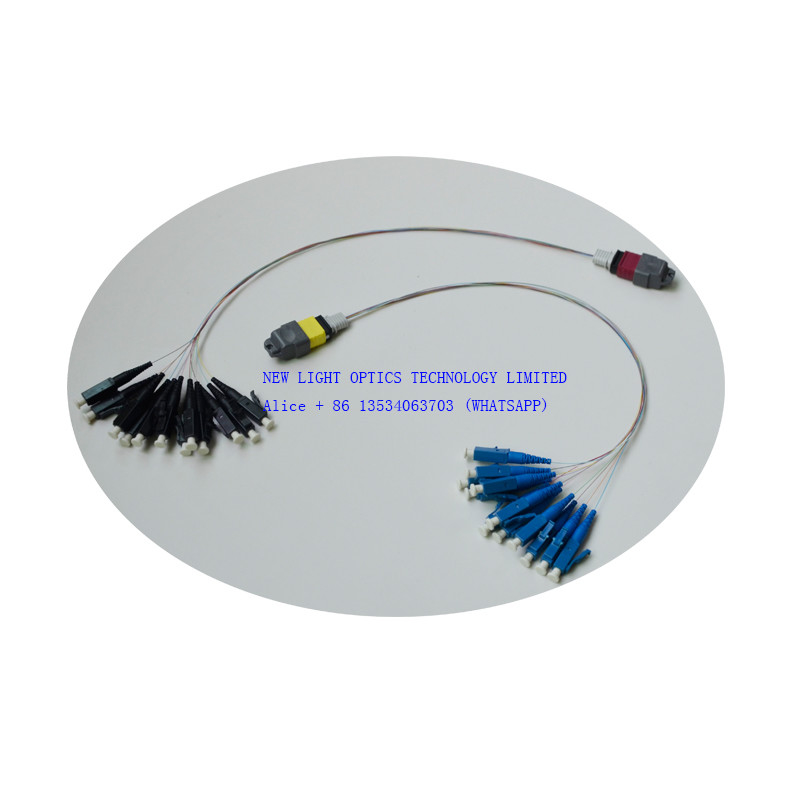

New Light MTP/MPO harness cables are designed for high density applications requiring high performance and speedy installation. Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. Therefore, they can meet a variety of fiber cabling requirements.
MPO MTP Cable Technical Parameter
|Connector||MPO/MTP(F or M)||MPO/MTP (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|
|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
Contact Person: Alice
