12 Core OS2 OM3 Female Polarity B MPO Fiber Optic Trunk Cable for High-Density Data Centers

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Name:

MPO MTP Cable

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Connector:

MTP Mpo

Color:

Aqua,orange,yellow,Yellow/ Red/ Aqua

Supply Ability:

500 pcs per day

Highlight:

MPO Fiber Optic Trunk Cable

OM3 Fiber Optic Trunk Cable

OM3 12 Core Fiber Cable

Product Description

12 Core MPO Fiber Optic Trunk Cable OS2 OM3 Female Polarity B Plenum

New Light Optics Technology Limited MTP® trunk cable provides a cost-effective alternative to time-consuming field termination, designed for high-density fiber patching in data centers where space saving and reduced cable management are essential. Featuring US Conec MTP® connectors and Corning ClearCurve® fiber, this cable is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.

Note: US Conec MTP® connectors are fully compliant with MPO standards, achieving higher performance levels compared to generic MPO connectors.

Compatibility Information

While 40G transceivers require only 8 fibers to operate, most manufacturers use 12-fiber MTP connectors as they work across all applications. A 12-fiber MTP cable with correct polarity functions identically to an 8-fiber cable in 40G transceiver applications, with 4 fibers remaining unused.

MPO MTP Cable Overview

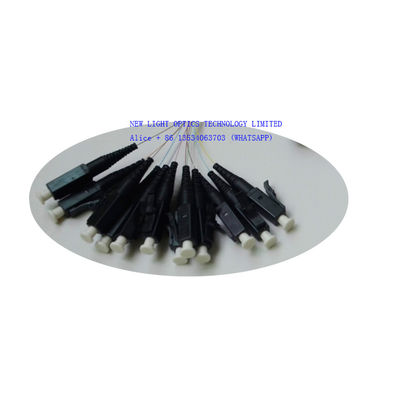

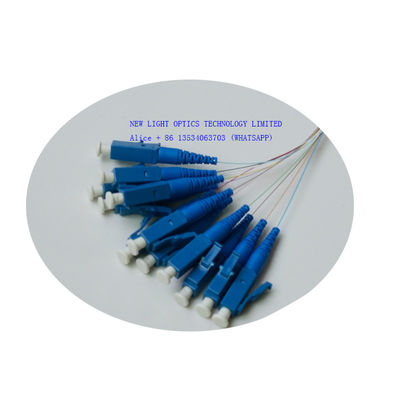

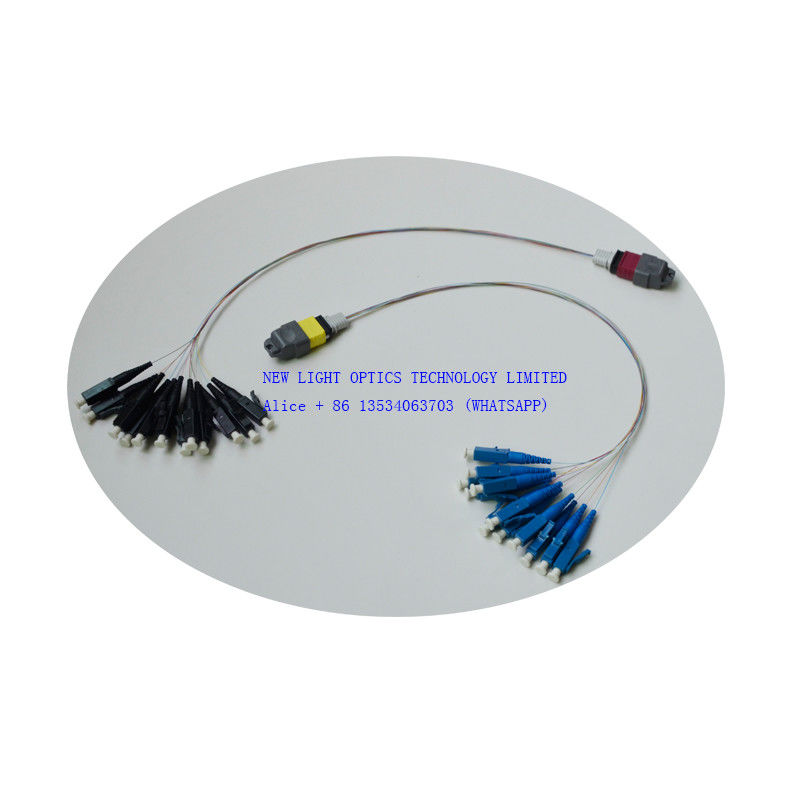

New Light MTP/MPO harness cables are engineered for high-density applications requiring superior performance and rapid installation. These harness cables facilitate transition from multi-fiber cables to individual fibers or duplex connectors, meeting diverse fiber cabling requirements.

MPO MTP Cable Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector as well standard versions of 0.6/0.75dB
Factory terminated and tested
Easy migration from 10GbE to 40GbE or 100GbE
Optional pulling eyes to protect fiber ends during installation

MPO MTP Cable Technical Parameters

Item	Technical Parameters
Connector	MPO/MTP(F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM:≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM:≥60dB; MM:≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Type (Other End)	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Polarity Methods

Three polarity methods (Type A, Type B and Type C) ensure proper bi-directional allocation for optimal performance.

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

WhatsApp: +8613534063703

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-unit orders incur higher costs.

Q: What's the price?

A: Pricing depends on quantity. We provide competitive pricing for larger orders upon request.

Q: Can you quote FOB price?

A: Yes, but due to product size and weight, air delivery (DHL, TNT, UPC, FEDEX) is typically recommended. EXW or CFR pricing is often more suitable.

Q: How is your quality?

A: We manufacture according to IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

Q: What's your lead time?

A: We maintain three factories in China with rapid production capabilities. Standard patch cords can be produced in 2-3 working days for quantities up to 5000 pieces, with many regular products available from stock.

Q: What's your warranty?

A: Patch cords carry a 2-year warranty against non-artificial damage from delivery date. For artificial damage, we provide free repairs with customer responsible for freight costs.

Q: What's your packing?

A: We use international export packaging and can print custom logos upon request.

Q: Can you do OEM/ODM?

A: Yes, we support OEM/ODM services and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples are available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer. Higher-value products require sample charges refundable upon order placement.

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance. Production begins after payment confirmation.

Q: What are your payment terms?

A: We accept T/T, Western Union, Paypal, and MoneyGram. For large orders, 50% deposit with balance due before delivery.
