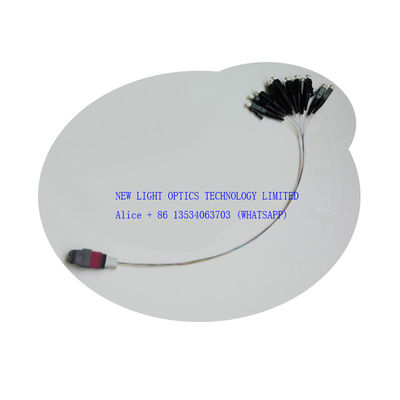

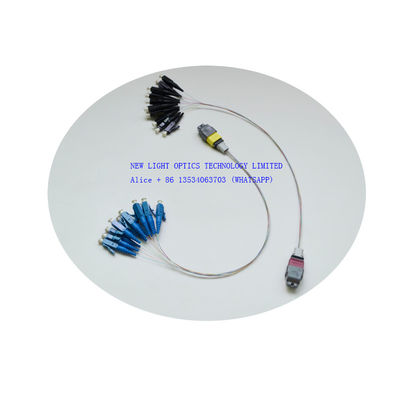

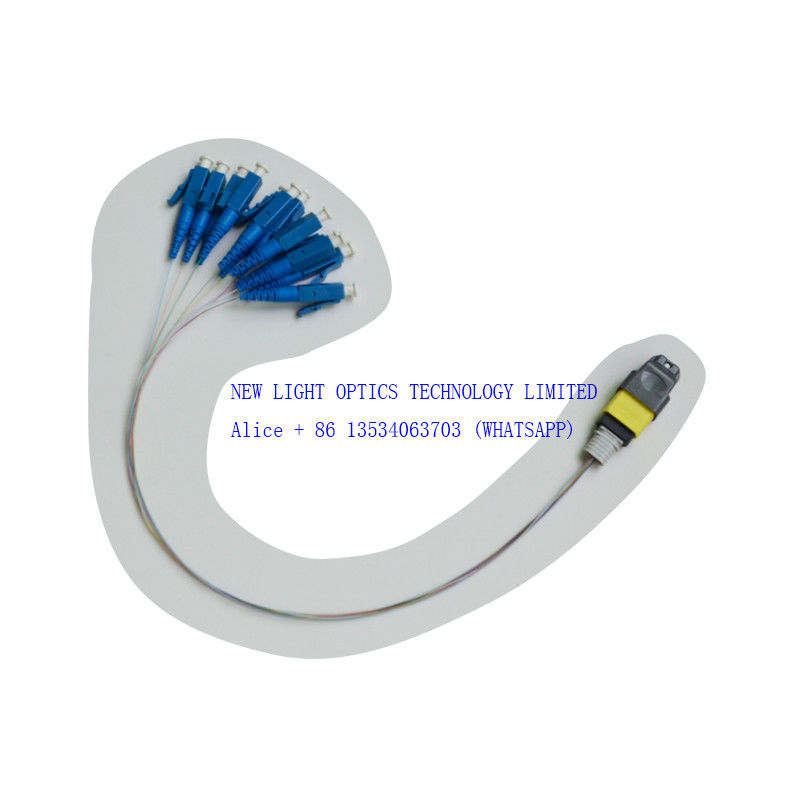

8 Core OM3 Multimode MPO MTP Cable with Female Polarity B for High-Speed Data Transmission

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Name:

MPO MTP Cable

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Connector:

MTP Mpo

Color:

Aqua,orange,yellow,Yellow/ Red/ Aqua

Supply Ability:

500 pcs per day

Highlight:

OM3 Multi Mode Fiber Optic Cable

OS2 8 Core Fiber Cable

OM3 8 Core Fiber Optic Cable

Product Description

8 Core OS2 OM3 Multi Mode Fiber Optic Cable

Female Polarity B 8 Strand MTP/MPO Cable

Product Overview

NEW LIGHT OPTICS TECHNOLOGY LIMITED pre-terminated Plug and Go Fibre System provides the Rapid Fibre Deployment market with an extremely cost effective, expandable and high speed system.

Key Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector as well standard versions of 0.6/0.75dB
Factory terminated and tested
Allow easy migration from 10GbE to 40GbE or 100GbE
Pulling eyes available as an option to protect fiber ends during installation

Technical Specifications

Parameter	Specification
Connector	MPO/MTP (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Fiber Mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)

Polarity Methods

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery.

Contact: WhatsApp +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing depends on quantity. Contact us with your requirements for competitive pricing.

How is your quality?

We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

What's your lead time?

2-3 working days for 5000 pieces. Regular products are available from stock.

What's your warranty?

2 years warranty for patch cords for non-artificial damage.

Tags:

mpo to mpo cable

mpo fiber cable

mpo fanout cable
