40M 12 Core OM4 Mode Type MPO Patch Cable for 100G Plenum High-Speed Networks

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Name:

MPO MTP Cable

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Connector:

MTP Mpo

Color:

Aqua,orange,yellow,Yellow/ Red/ Aqua

Supply Ability:

500 pcs per day

Highlight:

40M 12 Fiber MPO Patch Cable

12 Core OM4 MPO Patch Cable

12 Core OM4 MTP MTP Cable

Product Description

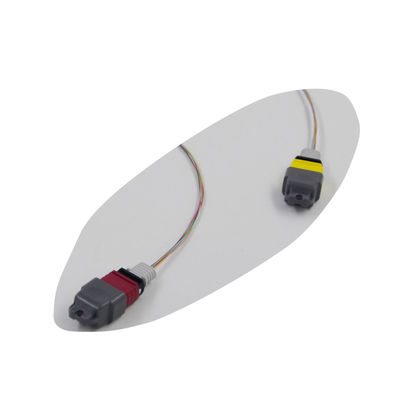

40M 12 Fiber MPO Patch Cable 100G Plenum 12 Core OM4 Mode Type

This 40-meter OM4 MTP/MPO 12-fiber patch cable is designed for 100G plenum applications, providing high-speed data transmission with optimal performance in demanding network environments.

Product Features

NEW LIGHT OPTICS TECHNOLOGY LIMITED pre-terminated Plug and Go Fibre System provides the Rapid Fibre Deployment market with an extremely cost effective, expandable and high speed system.

Our MTP® brand pre-terminated assemblies ensure optimum performance when interconnecting pre-terminated systems.

400G Network Applications

The demand for 400G transmission rates by major data centers and telecom carriers continues to grow. FS offers MTP/MPO cabling solutions to meet the needs of high-performance 400G networks.

400G-DR4 Direct Connection

400G short and medium distance direct connection typically uses 8-core/12-core MTP patch cables with 400G-DR4 OSFP/QSFP-DD modules. "DR4" indicates 500m reach using single-mode fiber with 4 x 100 Gbps optical channels.

400G-SR8 Application

400G-SR8 transceivers require 16-core MTP cables for 100m spans using multimode fiber, with 8 optical channels operating at 50Gbps each. This configuration provides 100% fiber utilization.

MPO/MTP Cable Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector as well standard versions of 0.6/0.75dB
Factory terminated and tested
Allow easy migration from 10GbE to 40GbE or 100GbE
Pulling eyes are provided as an option to protect the fiber ends during installation

Technical Parameters

Item	Technical Parameters
Connector	MPO/MTP(F or M) \| MPO/MTP (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
Return Loss	SM:≥60dB; MM:≥35dB
The MPO end type	Male: with guide pin; Female: without guide pin
Fiber count	8,12&24 fiber
Connector type of the other end	MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type	250um ribbon fiber,ribbon cable,Bundle fiber optic cable

Polarity Methods

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

WhatsApp: +8613534063703

Packaging

We package our products using OPP bags and carton boxes to ensure protection during delivery and transportation.

Frequently Asked Questions

Q: Are you manufacturer?

A: Yes, we are manufacturer in Shenzhen, China

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing

Q: What's the price?

A: Pricing depends on quantity - we offer competitive pricing for larger orders

Q: Can you quote FOB price?

A: We typically recommend EXW or CFR pricing for optimal freight solutions

Q: How is your quality?

A: We follow IEC and European standards with imported production equipment and 100% testing

Q: What's your lead time?

A: 2-3 working days for 5000 pieces, with stock available for regular products

Q: What's your warranty?

A: 2 years warranty for patch cords for non-artificial damage

Q: What's your packing?

A: International export packaging with optional custom logo printing

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM and can sign confidentiality agreements

Q: Can I have a sample?

A: Free samples available for some products with freight prepaid by customer

Q: How can I order?

A: Contact us with product specifications and quantity for quotation and ordering process

Q: What your payment term?

A: T/T, Western Union, Paypal, MoneyGram, or 50% deposit with 50% balance before delivery
