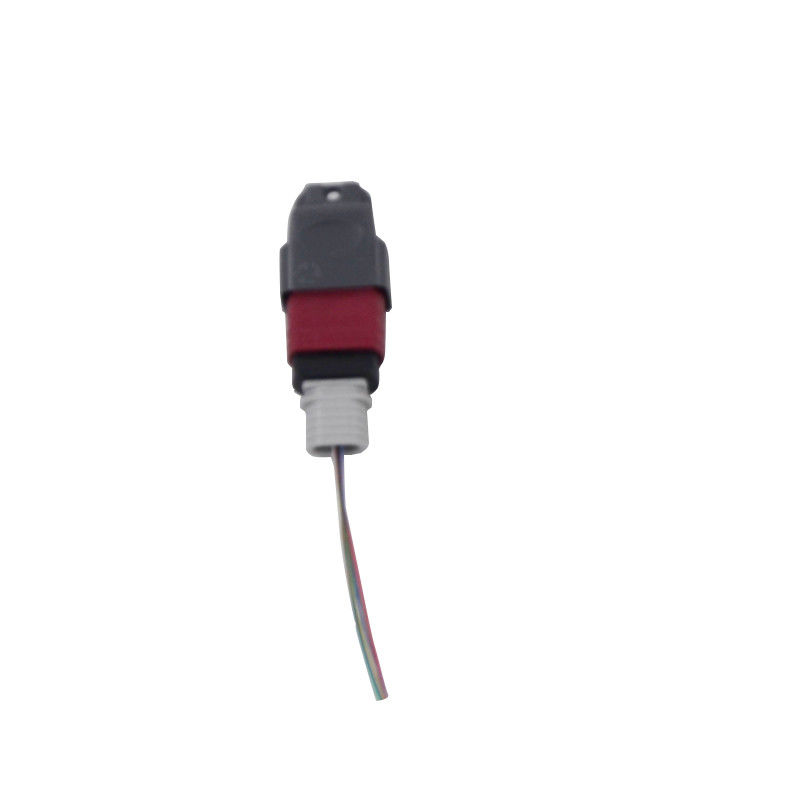

G652D LSZH Single Mode MPO MTP Cable 12 Core MPO Trunk Cable for High Density Data Centers

Brand Name:	New Light
Model Number:	MPO / MTP - 12*LC
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP

Material:

Mode Type:

Single Mode

Core Type:

12core

Cable Color:

Yellow

Length:

Can Be Customized

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Supply Ability:

500 pcs per day

Highlight:

G652D LSZH MPO MTP Cable

Duplex Fiber MPO MTP Cable

G652D LSZH Duplex Fiber Optic Cable

Product Description

G652D LSZH Single Mode MPO MTP Cable Duplex Fiber 8/12/24 Core

8/12/24 core G652D LSZH Fiber Optical MPO/MTP Patch cord/MPO trunk cable compliant with IEC61754-7 & GR-1435-CORE standards.

MPO/MTP multicore cable assemblies facilitate rapid deployment of high-density backbone cabling in data centers and other high-fiber environments, reducing network installation or reconfiguration time and cost. They are used to interconnect cassettes, panels, or ruggedized MPO/MTP fan-out systems.

Available with male or female connectors. Achieve precise positioning with the adapter connected via pin-pin positioning function for high stability. Multi-core ferrule design offers small size, high speed, and high capacity to meet the needs of optical fiber communication systems and high-efficiency, high-density interconnect wiring. Highly scalable for future network infrastructure, supporting Ethernet and Fiber Channel requirements from 10/100-1Gbps.

Technical Specifications

Parameter	Specification
Product	8/12/24 core G652D LSZH Fiber Optical MPO/MTP Patch cord/MPO trunk cable
Connector	MPO (F or M) \| MPO (F or M)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 MT fiber
Connector Type (Other End)	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652, G655, G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, Bundle fiber optic cable

Three polarity methods (Type A, Type B and Type C) are used to guarantee the right bi-directional allocation.

Type A Straight-Through MPO Trunk Cable

Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.

Type B Cross MPO Trunk Cable

Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.

Type C Cross Pair MPO Trunk Cable

Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.

Operating Temperature

-40°C to +80°C

Applications

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

MPO Breakout Cable Features

Quick, highly repeatable, low-loss connections
Simplex & Duplex configurations
Singlemode & Multimode options
PC, UPC & APC polishing available
Various boot (cable) sizes available
FC/LC/SC/ST/MTR/MPO connectors available
Interferential parameters
Hybrid patch-cords available upon request
Low Insertion loss
Low PDL
Excellent channel-to-channel uniformity
High return loss and good repeatability
Wide wavelength range

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery.

Contact: WhatsApp +8613534063703

Delivery Options

Available by air or sea, depending on quantity and requirements.

Payment Terms

Payment Methods: T/T, L/C, PAYPAL, WESTERN UNION, MONEYGRAM

30% deposit in advance, balance paid before delivery

Price Terms: EXW, FOB, CIF, CFR, DOOR TO DOOR
