|Connector Type:||MPO / MTP||Material:||LSZH|
|Mode Type:||Single Mode||Core Type:||12core|
|Cable Color:||Yellow||Length:||Can Be Customized|
|Delivery Time:||2-7 Working Days After Received Deposit||Production Ability:||500 Pcs / Day|
G652D LSZH MPO MTP Cable,
Duplex Fiber MPO MTP Cable,
G652D LSZH Duplex Fiber Optic Cable
8 / 12 / 24 core G652D LSZH Fiber Optical MPO / MTP Patch cord / MPO trunk cable
IEC61754-7 & GR-1435-CORE compliant.
MPO/MTP multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration time and cost. They are used to interconnect cassettes, panels or ruggedized MPO/MTP fan out .
Can choice of male,female.Achieve precise positioning with the adapter connected via Pin-pin positioning function,high stability.
Multi-core ferrule, small size, high speed and high capacity to meet the needs of optical fiber communication systems and high-efficiency high-density interconnect wiring. For future network infrastructure, highly scalable, supports Ethernet and Fiber Channel requirements 10/100-1Gbps.
|Product||8 / 12 / 24 core G652D LSZH Fiber Optical MPO / MTP Patch cord / MPO trunk cable|
|Connector||MPO (F or M)||MPO (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|

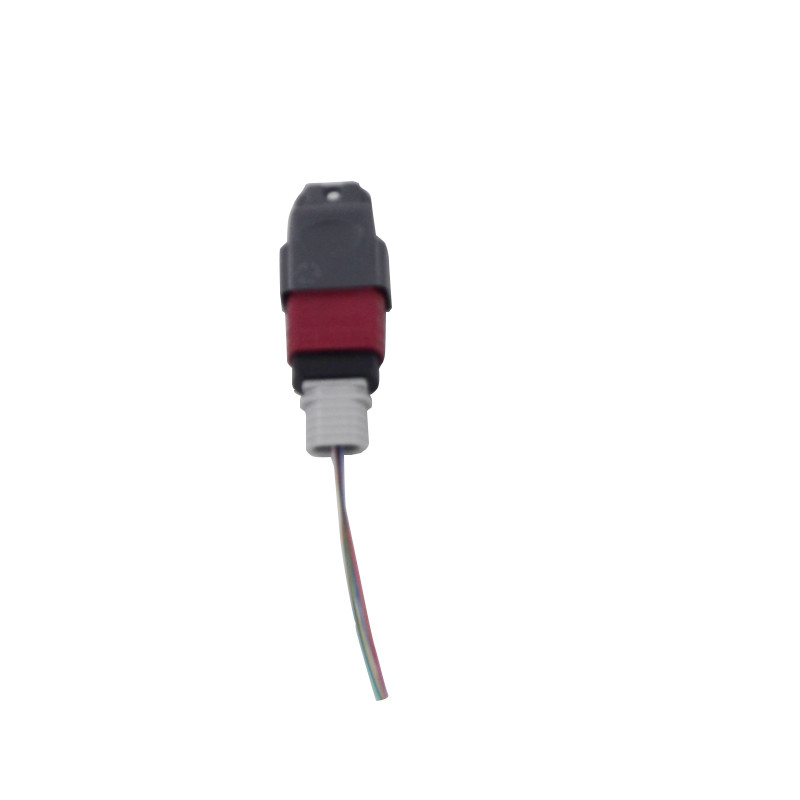

|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 MT fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.
Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.
Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.
-40° ~ +80°
Optical fiber CATV
Optical communication system

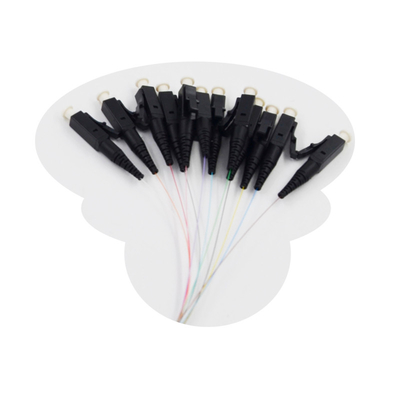

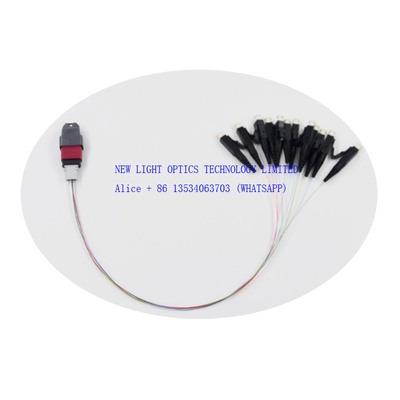

Feature of MPO Breakout Cable
* Quick, highly repeatable, low-loss connections
* Simplex & Duples
* Singlemode & Multimode
* PC, UPC & APC polishing
* Various boot (cable) sizes available
* FC/ LC/ SC/ ST/ MTR/ MPO connectors available
* Interferential parameters
* Hybrid patch-cords are available upon request
* Low Insertion loss
* Low PDL
* Excellent channel-to-channel uniformity
* High return loss and Good repeatability
* Wide wavelength range
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
We can delivery it by air and by sea . it is according to your quantity and requirements .
Payment term : T/T , L/C , PAYPAL / WESTERN UNION / MONEYGRAM . 30% deposit in advance . balance paid before delivery .
Price term : EXW , FOB , CIF , CFR . DOOR TO DOOR
