ODC Fiber Optic Patch Cord with ODC-2 ODC-4 LC Connector and G652D G657A2 OM3 OM4 Fiber Grade for High Return Loss ≥50dB

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

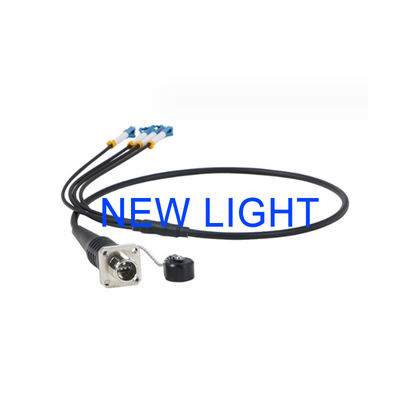

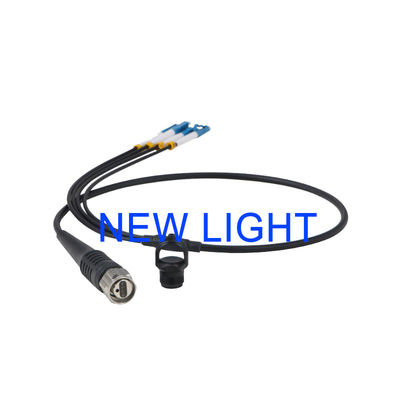

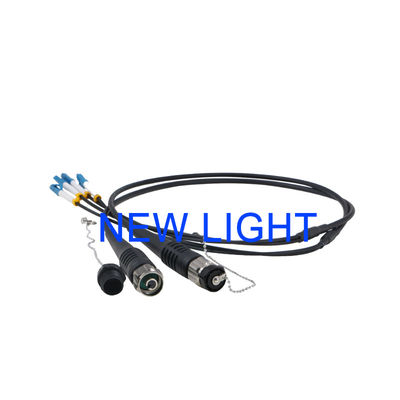

ODC Fiber Optic Patch Cord with ODC-2 ODC-4 LC Connector and G652D G657A2 OM3 OM4 Fiber Grade for High Return Loss ≥50dB

Brand Name:	New Light
Model Number:	NL0101
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	464624cm
Payment Terms:	TT,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Operating Temperature:

-40℃~+85℃

Cable Jacket:

TPU / PVC

Storage Temperature:

-40℃~+85℃

Insertion Loss:

≤0.2dB

Connector Type:

LC, SC, ST, FC, MTRJ, MU, E2000, Etc.

Return Loss:

≥50dB

Fiber Count:

2 Core /4 Core

Fiber Grade:

G652D , G657A2 ,OM3, OM4

Supply Ability:

1000000

Highlight:

ODC Fiber Optic Patch Cord

LC Connector Fiber Optical Cable

Product Description

ODC Fiber Optic Patch Cord

High-performance fiber optical cable with ODC-2 and ODC-4 LC connectors designed for reliable network connectivity across various applications.

Product Overview

Our Optical Fiber Patch Cord delivers exceptional reliability, durability, and performance for network device connections. Constructed with premium optical fiber materials to ensure optimal data transmission.

Available Fiber Grades

G652D
G657A2
OM3
OM4

Cable Length Options

Available in multiple lengths including 100m, 150m, 200m, 250m, 300m, and custom lengths to suit your specific network requirements.

Fiber Types

Choose between single-mode (SM) and multi-mode (MM) fiber types to ensure compatibility with your existing network infrastructure.

Performance Specifications

High return loss of ≥50dB minimizes signal loss and ensures efficient data transmission for optimal network performance.

Key Features

High-speed data transmission capabilities
Single mode (SM) and multimode (MM) options
TPU or PVC cable jacket for durability and flexibility
Wide operating temperature range: -40℃ to +85℃
Compatible with FTTB, Telecom, CATV, LAN applications
MPO and LC jumper connectivity options

Technical Specifications

Parameter	Specification	Parameter	Specification
Connector A	FC APC	Connector B	LC UPC
Fiber Mode	9/125 μm	Fiber Count	Simplex
Fiber Grade	G.652.D	Minimum Bend Radius	30 mm
Polish Type	APC, UPC	Cable Diameter	0.9 mm
Cable Jacket	PVC/LSZH	Jacket Color	Yellow
Wavelength	1310 nm/1550 nm	Durability	500 Times
Insertion Loss	≤0.3 dB	Interchangeability	≤0.2 dB
Operating Temperature	-40 ~85°C	Storage Temperature	-40 ~85°C

Applications

FTTB (Fiber to the Building)

Telecommunication Systems

CATV (Cable TV)

LAN (Local Area Network)

Product Details

Brand: New Light
Model: NL0101
Origin: China
Certification: ISO
MOQ: 100 units
Delivery: 7 working days
Connector Types: LC, SC, ST, FC, MTRJ, MU, E2000
Color: Black

Customization Options

New Light offers comprehensive customization services for optical fiber patch cords, including specific fiber grades (G652D, G657A2, OM3, OM4), enhanced durability (≥1000 cycles), reduced insertion loss (≤0.2dB), and custom cable lengths.

Packaging & Shipping

Products are securely packaged in sturdy boxes with protective foam inserts and bubble wrap. We offer multiple shipping options including express, standard, and economy delivery with tracking and insurance options available.

Tags:

single mode fiber optic cable

duplex fiber patch cord

sc sc fiber patch cord
