1.25Gbps 60km LC DDM SFP Module Fiber Optic Transceiver with Wide Temperature Range

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

0086 13534063703

Contact Now

1.25Gbps 60km LC DDM SFP Module Fiber Optic Transceiver with Wide Temperature Range

Brand Name:	NEW LIGHT
Model Number:	NLM-GE00-SFP
MOQ:	1
Price:	3.5~20
Packaging Details:	export packing

Detail Information

Product Description

Detail Information

Place of Origin:

China

Package Style:

Connetor:

Duplex LC

Description:

LC Connector, Tx1550nm, DFB, Singlemode

Application Area:

90-120㎡

Shipment:

DHL,Fedex,UPS,TNT,EMS

Power Supply:

+3.3V

Working Temperature:

0℃～ +70℃

Support:

SFP 1.25G 60km Tx1550nm LC DDM

Package Style:

Connetor:

Duplex LC

Description:

LC Connector, Tx1550nm, DFB, Singlemode

Application Area:

90-120㎡

Shipment:

DHL,Fedex,UPS,TNT,EMS

Power Supply:

+3.3V

Working Temperature:

0℃～ +70℃

Support:

SFP 1.25G 60km Tx1550nm LC DDM

Supply Ability:

1000000

Highlight:

Singlemode Lc Interface SFP Module

3.3V SFP Module

LC Connector Interface SFP Module

Product Description

Singlemode LC Interface / LC DDM SFP Module

This high-performance fiber optic transceiver features an LC interface for easy connectivity and utilizes Tx1550nm DFB technology with singlemode capabilities to ensure quick, efficient, and reliable data transmission. Capable of speeds up to 10/100/1000 Mbps, it's ideal for applications requiring high-speed data transfer.

Technical Specifications

Parameter	Specifications
Access mode	10/100/1000Mbps
Standard	IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Wavelength	Multimode: 850nm; Single-mode: 1310/1550nm
Distance	Category-5 twisted pair: 100m Fiber multimode 50/125, 62.5/125μm (max distance up to 220m or 550m) Fiber Single-mode 8/125, 8.7/125, 9/125, 10/125μm (max distance up to 20-80km)
Port	One RJ45 port for STP/UTP category-5 twisted pairs One optical port: Multi-mode dual fiber: SC (50, 62.5/125μm) Single mode dual fiber: SC or FC (9/125μm) Single mode single fiber: SC or FC (9/125μm)
Conversion means	Media conversion
MAC address table	1K
Buffer space	256kbit
Flow control	Full duplex: flow control; Half duplex: back pressure
Delay	Store-and-forward: 9.6μs; cut-through: 0.9μs
BER	<10⁻⁹
MTBF	100,000 hours
LED indicator	PWR (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link 1000M), TP LINK100 (twisted pair link 100M), TP ACT (twisted pair packet forwarding)
Power supply	DC5V 1A (external), DC12V, AC220V 0.5A/DC-48 (internal)
Power consumption	5W
Operating temperature	-10°C to 55°C
Operating humidity	5% to 90%
Storage temperature	-40°C to 70°C
Storage humidity	5% to 90% non-condensing
Dimensions	External power supply: 26mm * 70mm * 95mm Internal power supply: 30mm * 110mm * 140mm

Applications

The NLM-GE00-SFP supports 1.25Gbps operation and is compatible with SFP 1.25G 60km Tx1550nm LC DDM transceivers. Equipped with a Duplex LC connector for stable and secure connections, it's ideal for:

High-speed data transmission in large enterprises
Data centers and high-performance computing environments
Connecting servers, switches, and routers to fiber optic networks
High-bandwidth applications including video streaming, file sharing, and data backup

With an operating temperature range of 0°C to 70°C, this transceiver offers versatile deployment across various environments, making it a reliable choice for both network upgrades and new installations.

Packaging & Shipping

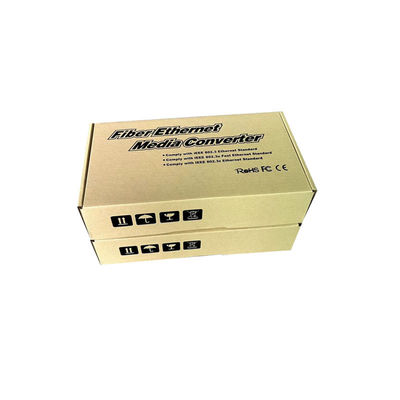

Product Packaging: Securely packaged in sturdy cardboard boxes with appropriate padding to prevent damage during transit.

Shipping: Free standard shipping within the United States. Orders processed within 1-2 business days via USPS or UPS. Expedited shipping available for additional fee.

Frequently Asked Questions

What is the brand name of this fiber optic transceiver?

The brand name is NEW LIGHT.

What is the model number of this fiber optic transceiver?

The model number is NLM-GE00-SFP.

Where is this fiber optic transceiver manufactured?

This transceiver is manufactured in China.

What type of connector does this fiber optic transceiver use?

This transceiver uses an SFP connector.

What is the data transfer rate of this fiber optic transceiver?

Maximum data transfer rate is 1.25Gbps.
