Product Details:
|
| Description: | LC Connector, Tx1550nm, DFB, Singlemode | Package Style: | SFP |
|---|---|---|---|
| Connetor: | Duplex LC | Application Area: | 90-120㎡ |
| Shipment: | DHL,Fedex,UPS,TNT,EMS | Power Supply: | +3.3V |
| Working Temperature: | 0℃～ +70℃ | Support: | SFP 1.25G 60km Tx1550nm LC DDM |
| High Light: | Singlemode Lc Interface SFP Module,3.3V SFP Module,LC Connector Interface SFP Module |
||
The Fiber Optic Transceiver comes with an LC interface that allows for easy connectivity with other devices. Its Tx1550nm DFB and Singlemode capabilities ensure that data transmission is quick, efficient, and reliable. The transceiver is capable of reaching speeds of up to 10/100/1000 Mbps, making it perfect for applications that require high-speed data transfer.
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength | Mulitmode:850; Single-mode:1310/1550nm |
| Distance |
Category-5 twisted pair: 100m Fiber:multi-mode 50/125,62.5/125μm(the max distance up to(220m or 550m) Fiber:Single -mode 8/125,8.7/125,9/125,10/125μm(the max distance up to 20 -80km) |
| Port |
One RJ45 port: For connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC (50, 62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm) |
| Conversion means | Media conversion |
| MAC address table | 1K |
| Buffer space | 256kbit |
| Flow control |
Full duplex: flow control; Half duplex: back pressure |
| Delay | Store-and-forward: 9.6μs; cut-through: 0.9μs |
| BER | <19-9 |
| MTBF | 100,000 hours |
| LED indicator | PWR (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link1000M), TP LINK100 (twisted pair link 100M), TP ACT (twisted pair packet forwarding) |
| Power supply | DC5V 1A (external), DC12V, AC220V 0.5A/DC-48 (internal) |
| Power consumption | 5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions |
External power supply: 26mmx 70mm x 95mm Internal power supply: 30mm x 110mm x 140m |
The NLM-GE00-SFP supports a data rate of 1.25Gbps operation and is compatible with SFP 1.25G 60km Tx1550nm LC DDM. It is also equipped with a Duplex LC connector, which provides a stable and secure connection. This makes it an excellent choice for high-speed data transmission in large enterprises, data centers, and other high-performance computing environments.
The NLM-GE00-SFP is also suitable for use in a range of other applications and scenarios, such as connecting servers, switches, and routers to fiber optic networks. It is particularly well-suited for use in environments where high-bandwidth applications are used, such as video streaming, file sharing, and data backup.
In addition, the NLM-GE00-SFP's working temperature range of 0℃～ +70℃ means that it can be used in a variety of different environments, making it a versatile and reliable device. Whether you are looking to upgrade your existing fiber optic network or are building a new one from scratch, the NLM-GE00-SFP is an excellent choice.
To summarize, the NEW LIGHT NLM-GE00-SFP Fiber Optic Transceiver is a high-performance and reliable device that is ideal for a range of applications and scenarios. Its 1.25G SFP data rate, compatibility with SFP 1.25G 60km Tx1550nm LC DDM, and LC interface make it an excellent choice for high-speed data transmission in large enterprises, data centers, and other high-performance computing environments. It is also suitable for use in a range of other applications, such as connecting servers, switches, and routers to fiber optic networks, and its working temperature range of 0℃～ +70℃ makes it a versatile and reliable device.

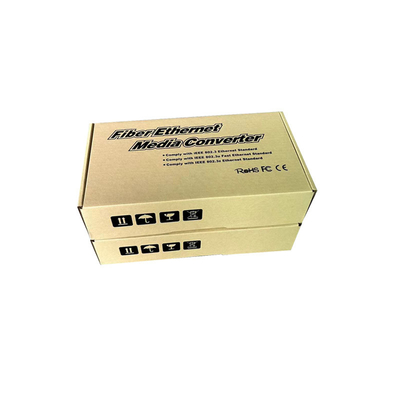

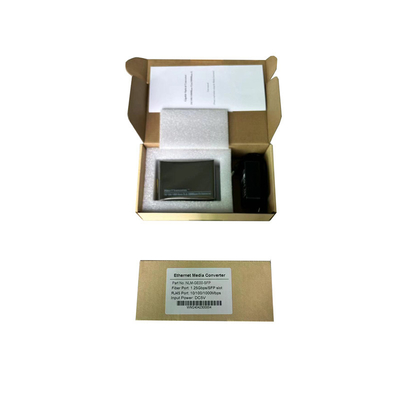

Product Packaging:
The Fiber Optic Transceiver product will be packaged securely to ensure safe delivery to our customers. The product will be enclosed in a sturdy cardboard box with appropriate padding to prevent any damage during shipping.
Shipping:
We offer free standard shipping for all orders within the United States. Orders are processed within 1-2 business days and shipped via USPS or UPS. Customers can also choose to expedite their shipping for an additional fee.
Q: What is the brand name of this fiber optic transceiver?
A: The brand name of this fiber optic transceiver is NEW LIGHT.
Q: What is the model number of this fiber optic transceiver?
A: The model number of this fiber optic transceiver is NLM-GE00-SFP.
Q: Where is this fiber optic transceiver manufactured?
A: This fiber optic transceiver is manufactured in China.
Q: What type of connector does this fiber optic transceiver use?
A: This fiber optic transceiver uses an SFP connector.
Q: What is the data transfer rate of this fiber optic transceiver?
A: This fiber optic transceiver has a maximum data transfer rate of 1.25Gbps.
