LC Fiber Optic Fast Connector with ≤ 0.3 dB Insertion Loss 0.9mm Cable Diameter and ≥ 50 dB Return Loss for High Performance Optical Networks

Brand Name:	NEW LIGHT OPTICS
Model Number:	NLAFC-001
MOQ:	1
Price:	$0.9 ~10
Packaging Details:	Box
Payment Terms:	Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

FTTA Solutions

Certifaction:

ISO9001, ROHS

St Pigtails Type:

12cores OM3

Fiber Diameter:

62.5/125um 50/125um

Wave Length:

1310 /1550

Material:

PVC / LSZH

Type:

Single Mode/Multi-mode

Cable Type:

Indoor Cable

Tensile Strength:

≥10KGS

Fiber Optic Connector:

ST - ST

Durability:

≥1000 Times

Repeatability:

Cable Diameter:

2.0mm / 3.0mm

Insert Loss:

≤0.2dB

Connector Material:

Ceramic Ferrule With Plastic Housing

Supply Ability:

100000000

Highlight:

ISO9001 ROHS Certified LC Fiber Optic Fast Connector

12cores OM3 Fiber Optic Patch Cord

62.5/125um 50/125um Optical Fiber Connector

Product Description

LC Fiber Optic Fast Connector

Key Features:

Fast field termination without polishing or epoxy
Available in both singlemode and multimode options
Low insertion loss (≤ 0.3 dB) for optimal performance
High return loss (≥ 50 dB UPC, ≥ 55 dB APC)
Wide operating temperature range (-40°C to +85°C)

Specification	Details
Ferrule Type	2.5mm ceramic ferrule
Fiber Mode	Singlemode / Multimode optional
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 50 dB (UPC), ≥ 55 dB (APC)
Cable Diameter	2.0mm / 3.0mm / 0.9mm
Operating Temperature	-40°C to +85°C
Applications	FTTH, Optical Distribution Networks, Data Centers

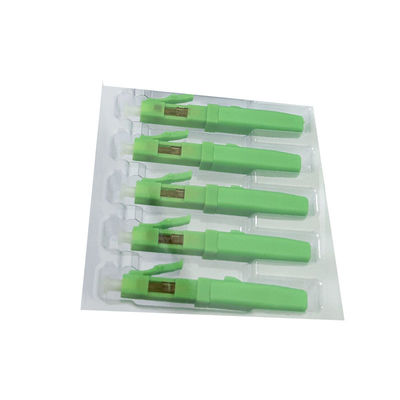

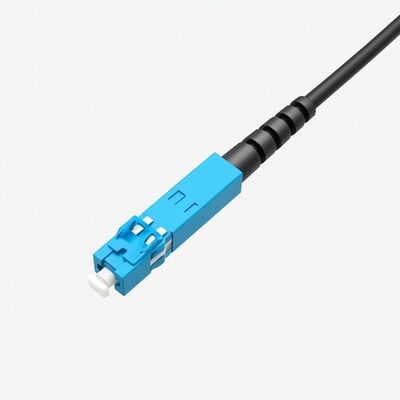

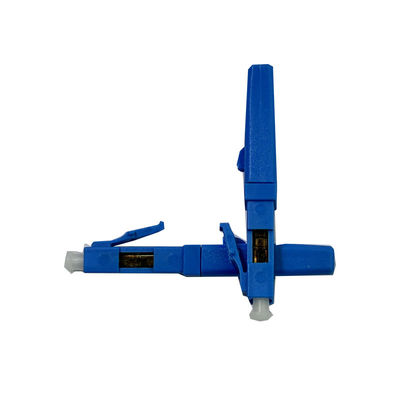

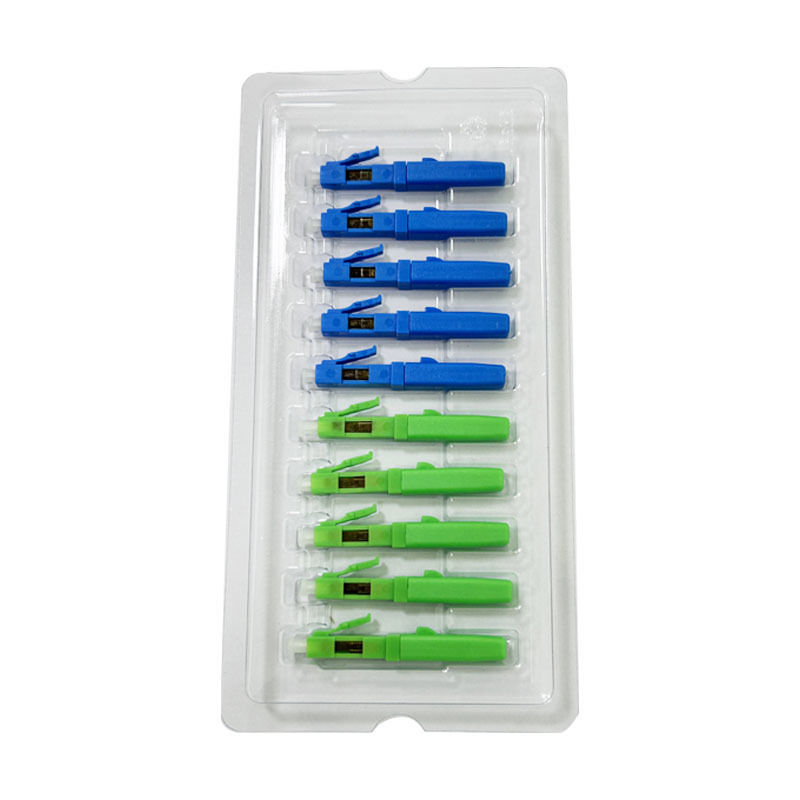

Product Images
