Optical Fiber Patch Cord

Optical Fiber Patch Cord with 1310 /1550 Wave Length ≥10KGS Tensile Strength and ≥1000 Times Durability

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Optical Fiber Patch Cord with 1310 /1550 Wave Length ≥10KGS Tensile Strength and ≥1000 Times Durability

Brand Name:	NEW LIGHT OPTICS
Model Number:	NLAFC-001
MOQ:	1
Price:	$0.9 ~10
Packaging Details:	Box
Payment Terms:	Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

FTTA Solutions

Certifaction:

ISO9001, ROHS

St Pigtails Type:

12cores OM3

Fiber Diameter:

62.5/125um 50/125um

Wave Length:

1310 /1550

Material:

PVC / LSZH

Type:

Single Mode/Multi-mode

Cable Type:

Indoor Cable

Tensile Strength:

≥10KGS

Fiber Optic Connector:

ST - ST

Durability:

≥1000 Times

Repeatability:

Cable Diameter:

2.0mm / 3.0mm

Insert Loss:

≤0.2dB

Connector Material:

Ceramic Ferrule With Plastic Housing

Supply Ability:

100000000

Highlight:

ISO9001 ROHS Certified Optical Fiber Patch Cord

12cores OM3 Fiber Optic Patch Cable

62.5/125um 50/125um Fiber Patch Cord

Product Description

Optical Fiber Patch Cord with LC Connector

Singlemode/Multimode with Low Insertion Loss and High Return Loss

The LC Fiber Optic Fast Connector provides reliable field termination without polishing or epoxy, available in both singlemode and multimode configurations for versatile applications.

Key Features

Fast field termination without polishing or epoxy
Available in both singlemode and multimode options
Low insertion loss (≤ 0.3 dB) for optimal performance
High return loss (≥ 50 dB UPC, ≥ 55 dB APC)
Wide operating temperature range (-40°C to +85°C)

Technical Specifications

Specification	Details
Ferrule Type	2.5mm ceramic ferrule
Fiber Mode	Singlemode / Multimode optional
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 50 dB (UPC), ≥ 55 dB (APC)
Cable Diameter	2.0mm / 3.0mm / 0.9mm
Operating Temperature	-40°C to +85°C
Applications	FTTH, Optical Distribution Networks, Data Centers

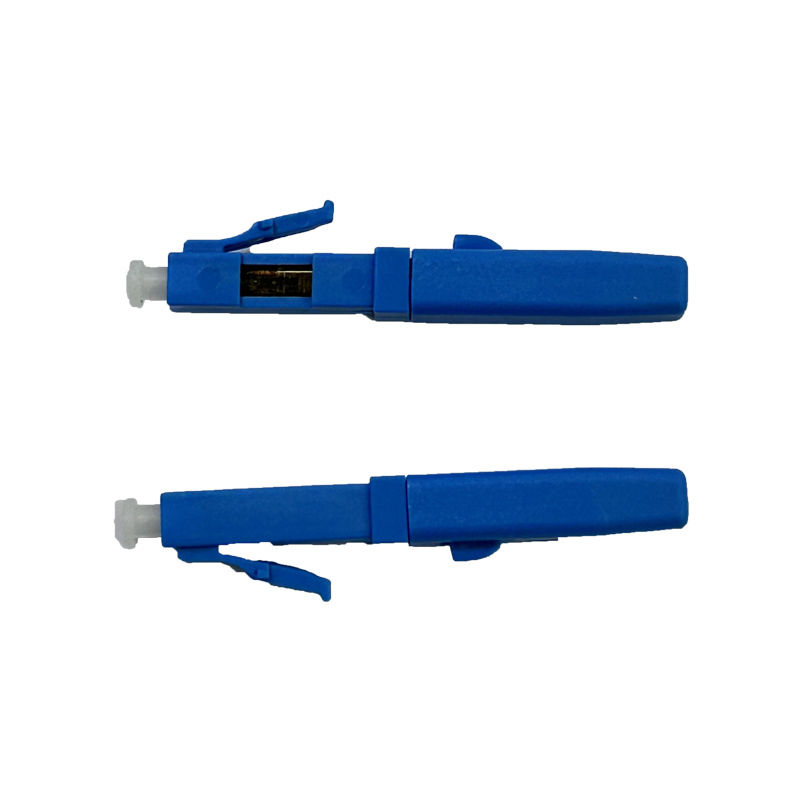

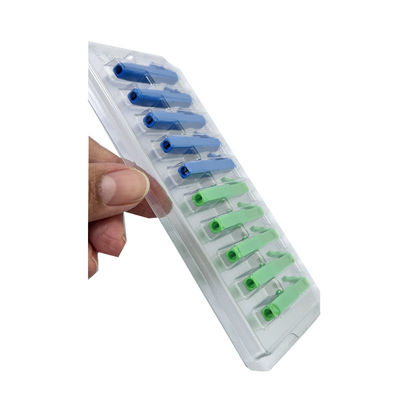

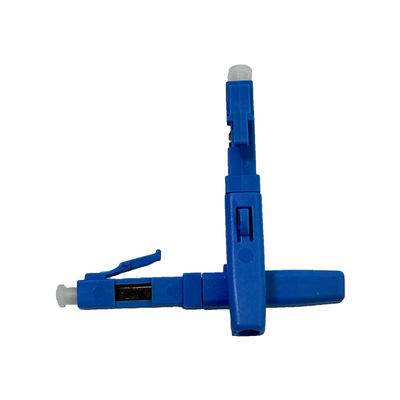

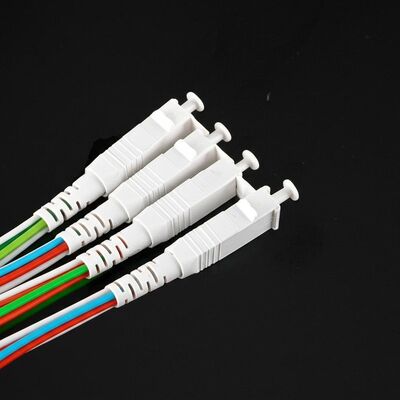

Product Images
