Pre-Polished LC Fast Connector with Within 1 Minute Installation, ≥10KGS Tensile Strength, and ≥1000 Times Durability for FTTA Solutions

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Pre-Polished LC Fast Connector with Within 1 Minute Installation, ≥10KGS Tensile Strength, and ≥1000 Times Durability for FTTA Solutions

Brand Name:	NEW LIGHT OPTICS
Model Number:	NLAFC-001
MOQ:	1
Price:	$0.9 ~10
Packaging Details:	Box
Payment Terms:	Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

FTTA Solutions

Certifaction:

ISO9001, ROHS

St Pigtails Type:

12cores OM3

Fiber Diameter:

62.5/125um 50/125um

Wave Length:

1310 /1550

Material:

PVC / LSZH

Type:

Single Mode/Multi-mode

Cable Type:

Indoor Cable

Tensile Strength:

≥10KGS

Fiber Optic Connector:

ST - ST

Durability:

≥1000 Times

Repeatability:

Cable Diameter:

2.0mm / 3.0mm

Insert Loss:

≤0.2dB

Connector Material:

Ceramic Ferrule With Plastic Housing

Supply Ability:

100000000

Highlight:

Within 1 Minute Installation LC Fast Connector

≥10KGS Tensile Strength Fiber Optic Fast Connector

≥1000 Times Durability Pre-Polished LC Connector

Product Description

Pre-Polished LC Fast Connector with 1310 / 1550 nm Wavelength for Within 1 Minute Installation and ISO9001 Certified

Product Description

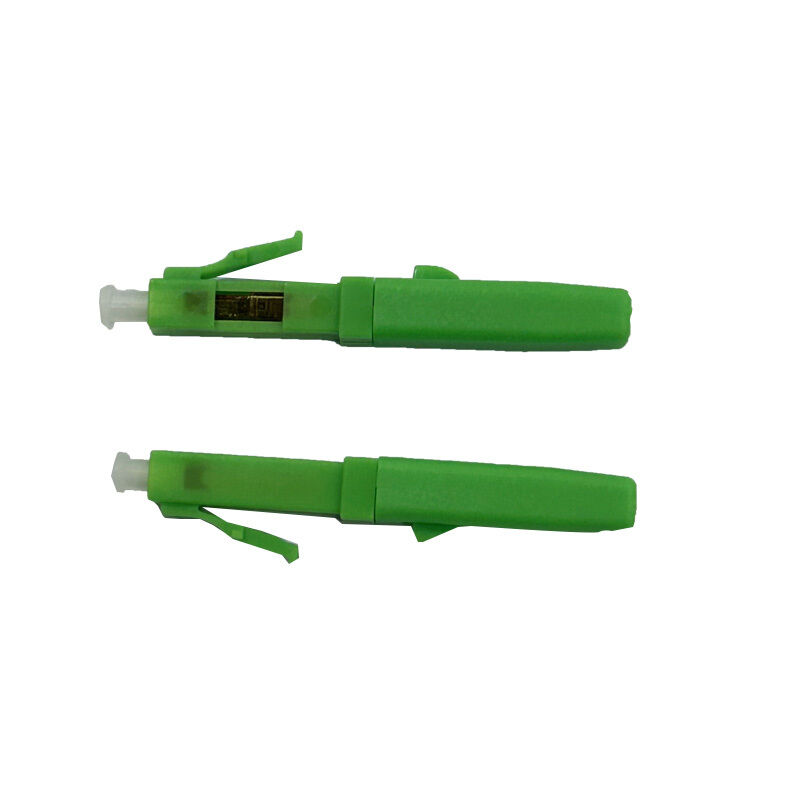

Pre-Polished LC Fast Connector – Field Installable
This pre-polished fast connector enables simple field installation with superior optical performance.

Connector Type: LC
Pre-polished Ferrule: Yes
Splicing Method: Mechanical
Operating Wavelength: 1310 / 1550 nm
Typical Return Loss: UPC ≥ 50 dB; APC ≥ 60 dB
Installation Time: Within 1 minute
Use Case: Emergency repairs, quick deployments, drop cable installation.

Technical Specifications

Specification	Details
Ferrule Type	2.5mm ceramic ferrule
Fiber Mode	Singlemode / Multimode optional
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 50 dB (UPC), ≥ 55 dB (APC)
Cable Diameter	2.0mm / 3.0mm / 0.9mm
Operating Temperature	-40°C to +85°C
Applications	FTTH, Optical Distribution Networks, Data Centers

Product Images
