Optical Fiber Patch Cord with Tensile Strength ≥10KGS Durability ≥1000 Times and Repeatability ≤0.1 for Reliable Performance

Brand Name:	NEW LIGHT OPTICS
Model Number:	NLAFC-007
MOQ:	1
Price:	$0.9 ~10
Packaging Details:	Box
Payment Terms:	Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

FTTA Solutions

Certifaction:

ISO9001, ROHS

St Pigtails Type:

12cores OS2 G652D

Fiber Diameter:

9/125um 50/125um

Wave Length:

1310 /1550

Material:

PVC / LSZH

Type:

Single Mode/Multi-mode

Cable Type:

Indoor Cable

Tensile Strength:

≥10KGS

Fiber Optic Connector:

ST - ST

Durability:

≥1000 Times

Repeatability:

Cable Diameter:

2.0mm / 3.0mm

Insert Loss:

≤0.2dB

Connector Material:

Ceramic Ferrule With Plastic Housing

Supply Ability:

100000000

Highlight:

Tensile Strength ≥10KGS Optical Fiber Patch Cord

Durability ≥1000 Times Fiber Optic Patch Cable

Repeatability ≤0.1 Fiber Patch Cord

Product Description

Optical Fiber Patch Cord with Ceramic Ferrule and Fast Field Termination for Singlemode/Multimode Applications

Optical Fiber Patch Cord with LC Connector ISO9001 ROHS Certified 12cores OM3 for FTTA Solutions. Featuring singlemode/multimode options with low insertion loss and high return loss performance. LC Fiber Optic Fast Connector delivers reliable performance with fast field termination capability, eliminating the need for polishing or epoxy.

Key Features

Fast field termination without polishing or epoxy
Available in both singlemode and multimode options
Low insertion loss (≤ 0.3 dB) for optimal performance
High return loss (≥ 50 dB UPC, ≥ 55 dB APC)
Wide operating temperature range (-40°C to +85°C)

Technical Specifications

Ferrule Type	2.5mm ceramic ferrule
Fiber Mode	Singlemode / Multimode optional
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 50 dB (UPC), ≥ 55 dB (APC)
Cable Diameter	2.0mm / 3.0mm / 0.9mm
Operating Temperature	-40°C to +85°C
Applications	FTTH, Optical Distribution Networks, Data Centers

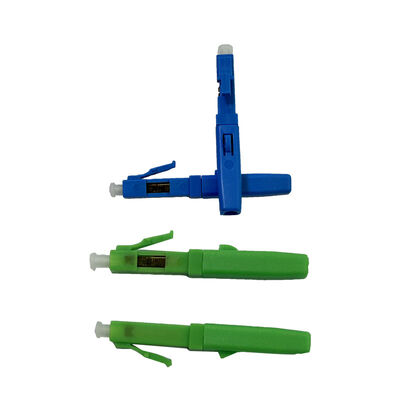

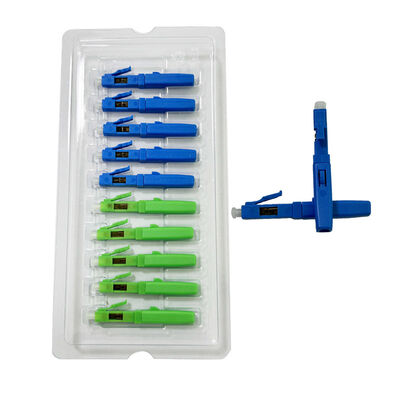

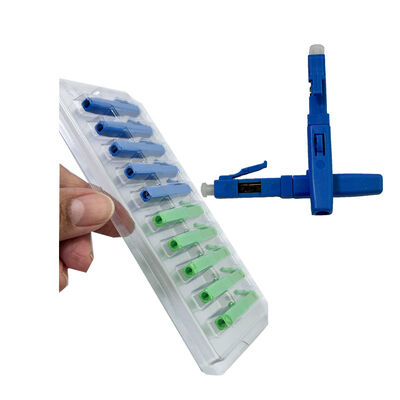

Product Images
