WDM SFP Media Converter with BiDi WDM Technology for 20km Transmission over Single Fiber

Brand Name:	NEW LIGHT OPTICS
Model Number:	NL-WDMMC-09
MOQ:	10 Pieces
Price:	USD 15-85 / Piece
Packaging Details:	NEW LIGHT OPTICS branded color box with shock-proof foam, export-grade corrugated carton
Payment Terms:	T/T,L/C,PayPal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO 9001:2015, CE, RoHS, FCC

Product Type:

WDM Simplex SFP Media Converter

WDM Technology:

BiDi (Bidirectional) WDM Over Single Fiber

Data Rate:

10/100/1000Mbps

Fiber Port:

1 X SFP Slot (WDM BiDi, LC Simplex)

Copper Port:

1 X 10/100/1000Base-T RJ45

TX Wavelength:

1310nm / 1550nm (Matched Pair)

RX Wavelength:

1550nm / 1310nm (Matched Pair)

Transmission Distance:

Up To 20km

Fiber Mode:

Single Mode 9/125μm (Single Strand)

Power Supply:

DC 5V 2A External Adapter

Operating Temperature:

0°C To 60°C

Dimensions:

94mm X 70mm X 26mm

Weight:

0.25kg

Compliance:

IEEE 802.3, 802.3u, 802.3ab, 802.3z, ITU-T G.652

Supply Ability:

50000 Pieces per Month

Highlight:

WDM Simplex Fiber Converter

BiDi Single Fiber SFP 20km

Simplex SMF Media Converter

Product Description

NL-WDMMC-09 WDM Simplex Single Fiber SFP Media Converter BiDi LC Simplex SMF 1310 1550nm 20km

WDM Simplex Single-Fiber SFP Media Converter (NL-WDMMC-09)

The NL-WDMMC-09 WDM Simplex Single-Fiber SFP Media Converter engineered by NEW LIGHT OPTICS TECHNOLOGY LIMITED leverages wavelength division multiplexing (WDM) BiDi technology to transmit and receive gigabit Ethernet over a single strand of single-mode fiber. By using 1310nm for transmit and 1550nm for receive (or the reverse in its paired counterpart), this media converter halves the fiber infrastructure requirement—effectively cutting fiber leasing costs by 50% while maintaining full-duplex gigabit throughput up to 20km. The integrated LC simplex SFP slot accepts standard WDM BiDi transceivers, making it the most cost-efficient solution for fiber-scarce environments.

Key Features

WDM BiDi technology enables full-duplex gigabit transmission over a single fiber strand
Halves fiber count requirements: one fiber does the job of two, reducing OPEX by 50%

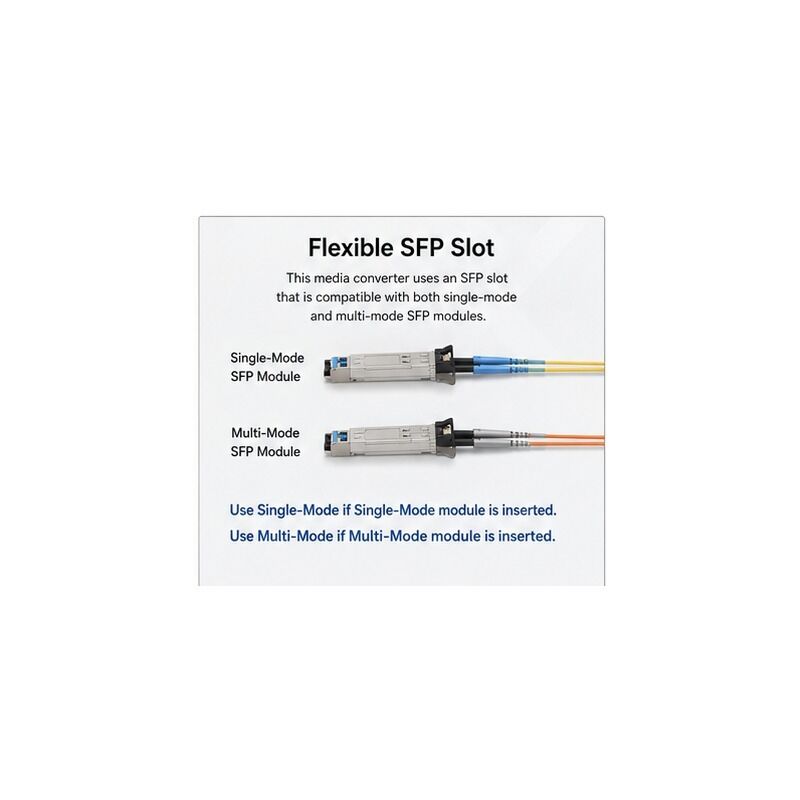

Open SFP slot compatible with standard WDM BiDi 1000Base-BX SFP transceivers
Matched-pair deployment: one side TX 1310nm/RX 1550nm, other side TX 1550nm/RX 1310nm
Link Fault Pass-Through propagates link failures for rapid end-to-end fault detection
Auto-negotiating 10/100/1000Mbps copper port with Auto MDI/MDIX
Jumbo frame support up to 9K for optimized storage and video traffic
Metal housing with integrated heat sink for reliable passive cooling

Technical Specifications

Parameter	Specification
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, ITU-T G.652
Technology	WDM BiDi (Bidirectional over Single Fiber)
Data Rate	10/100/1000Mbps
Fiber Port	1 x SFP Slot (WDM BiDi, LC Simplex)
Copper Port	1 x RJ45 (10/100/1000Base-T)
TX/RX Pair A	TX: 1310nm / RX: 1550nm
TX/RX Pair B	TX: 1550nm / RX: 1310nm
Fiber Type	Single Mode 9/125μm (Single Strand)
Max Distance	20km (40km and 80km BiDi options available)
Power Input	DC 5V 2A (External Adapter)
Power Consumption	< 3.5W
Operating Temp	0°C to 60°C
Humidity	5% to 95% (Non-Condensing)
MTBF	> 50,000 Hours
Dimensions	94 x 70 x 26 mm
Weight	0.25 kg

Applications

Fiber-scarce campus and metro links
ISP fiber-to-the-building (FTTB) where fiber pairs are limited
Reducing leased dark fiber costs by 50%
CCTV surveillance ring networks
Utility SCADA fiber networks along pipelines and railways

NEW LIGHT OPTICS TECHNOLOGY LIMITED has specialized in fiber optic manufacturing for many years. Our comprehensive fiber optic product portfolio—spanning single-mode, multi-mode, bend-insensitive, and specialty fibers—serves customers in telecommunications, cloud infrastructure, industrial automation, medical imaging, and defense applications worldwide. With the explosive growth of MPO connectivity in 2026 and the accelerating demand for SFP-based fiber media converters, NEW LIGHT OPTICS is your trusted partner for cost-effective, high-quality fiber optic solutions.
