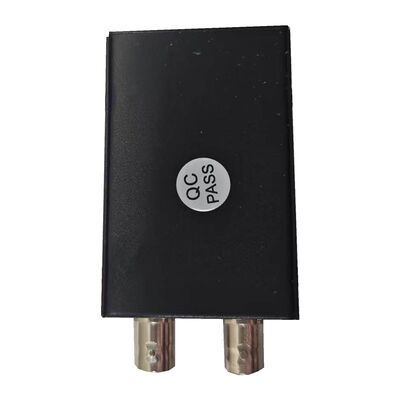

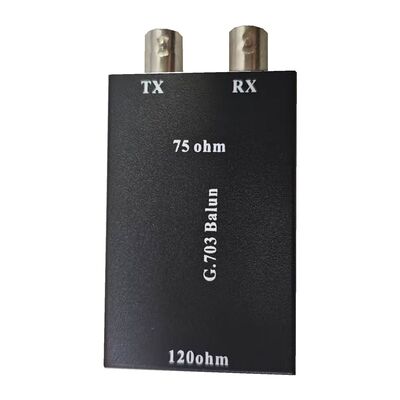

Passive G.703 Balun Converter with Dual BNC and 2Mbps E1 Balun Converter for 75 Ohm to 120 Ohm Impedance Matching

Brand Name:	NEW LIGHT
Model Number:	NLG703-01
MOQ:	50 Pieces
Price:	USD 4.50-9.80 / Piece
Packaging Details:	1 piece per antistatic bag, 100 pieces per export carton
Payment Terms:	T/T,L/C,Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, RoHS, ISO 9001

Product Type:

Passive G.703 Balun Converter, 75 Ohm To 120 Ohm

Interface A:

2 X BNC 75 Ohm Unbalanced (TX / RX)

Interface B:

1 X RJ45 120 Ohm Balanced, 4-wire On Pins 1/2 And 4/5

Data Rate:

2.048 Mbps E1, 1.544 Mbps T1 Compatible

Insertion Loss:

Below 1.0dB At 1MHz To 3MHz

Return Loss:

Above 18dB

Isolation:

500V DC Between Coax And Twisted Pair

Bit Error Rate:

Better Than 1E-10 Over 300m Cat5

Power:

None Required (passive)

Housing:

ABS Body, Nickel Plated BNC, Gold Plated Centre Pin

Operating Temperature:

-20 C To +70 C

Application:

E1 Trunks, PDH And SDH Nodes, PBX, SCADA, Base Station Transmission

Supply Ability:

20000 Pieces per Month

Highlight:

G.703 Balun Converter Module

75 to 120 Ohm G.703 Balun

E1 Coax to UTP Adapter

Product Description

Product Overview

This G.703 balun converter matches the 75 Ohm unbalanced coax interface of E1 / T1 equipment to the 120 Ohm balanced twisted-pair interface used by routers, multiplexers and structured cabling. One RJ45 port carries the four-wire balanced signal while two BNC connectors present the transmit and receive coax pair, so PDH gear, DDF panels and SDH nodes can be linked over ordinary Cat5 twisted pair instead of twin coax. The unit is passive, epoxy sealed and requires no power or configuration.

75 Ohm to 120 Ohm Impedance Conversion

Converts G.703 75 Ohm unbalanced coax into 120 Ohm balanced twisted pair with matched transformer coupling.
Return loss better than 18dB and insertion loss under 1.0dB keep the E1 2.048Mbps pulse mask within ITU-T G.703 tolerance.
Two BNC connectors map TX and RX coax lines to one 8P8C RJ45 port wired on pins 1/2 and 4/5.
Transformer isolation blocks ground loops between sites and protects port cards from potential differences on the coax shield.

Deployment Scenarios

Connects E1 routers, PBX trunks, PDH multiplexers and SDH nodes to Cat5 / Cat6 structured cabling.
Extends a 120 Ohm E1 drop from the telecom demarcation to the equipment room over existing UTP.
Suits base station transmission, railway and utility SCADA links, and legacy voice network refurbishment.
Compact housing installs in a DDF frame, wall box or directly behind the equipment without rack space.

Quality and OEM Options

Epoxy potted transformer, gold plated BNC centre pin and nickel plated shell for long term oxidation resistance.
100 percent transmission tested with an E1 BER tester before packing, bit error rate better than 1E-10.
Custom RJ45 pinout, housing colour, laser logo and private label packaging from 200 pieces.
Typical lead time 7 working days for stock models, 15 to 20 days for customized builds.

Technical Specifications

Product Type	Passive G.703 balun converter, 75 Ohm to 120 Ohm
Interface A	2 x BNC 75 Ohm unbalanced (TX / RX)
Interface B	1 x RJ45 120 Ohm balanced, 4-wire on pins 1/2 and 4/5
Data Rate	2.048 Mbps (E1), 1.544 Mbps (T1) compatible
Impedance Match	75 Ohm unbalanced to 120 Ohm balanced transformer
Insertion Loss	Below 1.0dB at 1MHz to 3MHz
Return Loss	Above 18dB
Isolation	500V DC between coax and twisted pair
Bit Error Rate	Better than 1E-10 over 300m Cat5
Power	None required (passive)
Housing	ABS body with nickel plated BNC and gold plated centre pin
Operating Temperature	-20°C to +70°C
Application	E1 / T1 trunks, PDH and SDH nodes, PBX, SCADA, base station transmission
