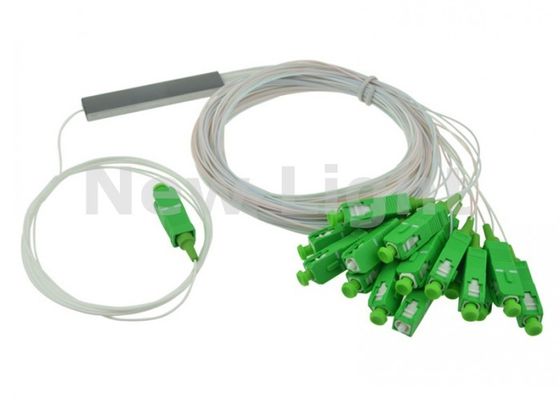

This compact 0.9mm mini PLC splitter features SC APC connectors and is designed for E-Gpon single-mode fiber optic networks. Ideal for FTTH deployments and high-density applications.

Technical Specifications

Parameter	Specification
Channel Configuration	1*16
Operating Wavelength	1260~1650 nm
Insertion Loss	≤13.5/13.7 dB (Max P/S)
Loss Uniformity	≤1.2 dB
Polarization Dependent Loss	≤0.3 dB
Return Loss	≥55 dB (APC)
Directivity	≥55 dB
Fiber Type	G.657A Bend Insensitive Single Mode
Pigtail Diameter	0.9mm / 2.0mm / 3.0mm Cable
Connector Type	SC/APC

Environmental Specifications

Parameter	Specification	Units
Operating Temperature	-40 to +85	°C
Storage Temperature	-60 to +85	°C
Humidity Range	5% to 85%	RH
Maximum Optical Power	300	mW

Applications

Optical LAN, WAN & CATV Networks
FTTH Projects & FTTX Deployments
Broadband High-bit Rate Data Transmission
Active Device Terminations
Testing Instruments
Optical Fiber Communication Networks
PON Networks
Optical Signal Distribution

Additional Features

Telcordia GR-1221-CORE & G-1209-CORE Compliant
Premium specifications available upon request
Multiple packaging options: Bare Device, Mini Tube, ABS Module, LGX Box, 19"/23" Rack-mount
Standard output colors per TIA/EIA 598-B
Connector options: FC, SC, LC, ST, MU

Typical values measured at +23°C without connector losses. Premium Grade/Standard Grade options available.
