19 Inch 96 Port Fiber Optic Patch Panel Rack Mounting ODF Optical Fiber Distribution Frame for FTTX FTTH

Brand Name:	New Light
MOQ:	1~10000
Price:	10~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

New Light

Certification:

Color:

White

Core Number:

Application:

FTTX, FTTH Odf

Fiber:

Simplex,Duplex

Name:

ODF Optical Fiber Distribution Frame

OEM:

Available

Minimum Order Quantity:

1~10000

Price:

10~100

Packaging Details:

1 piece per pack

Delivery Time:

within 2 weeks

Payment Terms:

T/T,Western Union,MoneyGram

Supply Ability:

1000 pcs per month

Highlight:

odf optical fiber distribution frame

odf fiber optic patch panel

Product Description

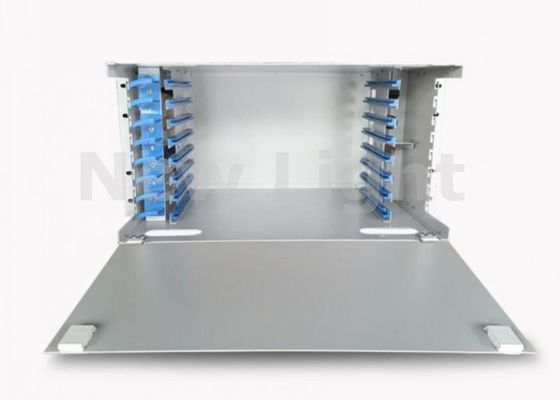

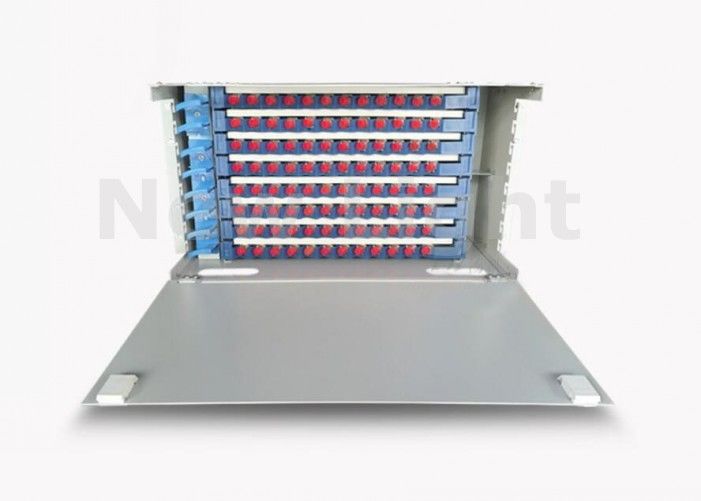

FTTX / FTTH Fiber Optic Distribution Frame 19 Inch 96 Port Fiber Patch Panel

Optical network use 19 inch 96 core ODF optical fiber distribution frame 96 port fiber patch panel

Applications

Optical network
Local area networks
Wide area networks

Features

19'' standard structure, rack mounting
Built-in slide rail for easy open and close
Available for the installation of FC, SC, ST, LC adapters

ODF Electricity Performance

Environment temperature	-25~55 degree
Atmosphere pressure	70~106Kpa
Insulating resistance	>2x104 MΩ/500VDC
Relative humidity	<85%(when the temperature is below 30 ℃)
Voltage resistance strength	Under the effect of 15kv/DC/1min, non-puncture, and no arc-over

Specifications

Item	ODF-12	ODF-24	ODF-48	ODF-72	ODF-96
Size(HxWxD)mm	430x300x1U	430x300x2U	430x300x3U	430x300x4U	430x300x6U
Cable diameter(mm)	Ф5～Ф10
Adapter ports	12	24	48	72	96
Max capacity of splice	12	24	48	72	96
Suitable Adapter	FC, SC, ST, LC
Materials	Stainless steel + ABS
Weight(kg)	1.5	5.5	8	9.8	15

* 1U = 44.45mm
