Product Details:
|
| Color: | White | Core Number: | 96 |
|---|---|---|---|
| Application: | FTTX, FTTH Odf | Fiber: | Simplex,Duplex |
| Name: | ODF Optical Fiber Distribution Frame | OEM: | Available |
| High Light: | odf optical fiber distribution frame,odf fiber optic patch panel |
||

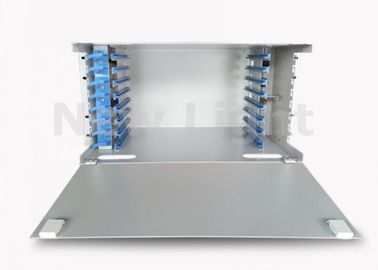

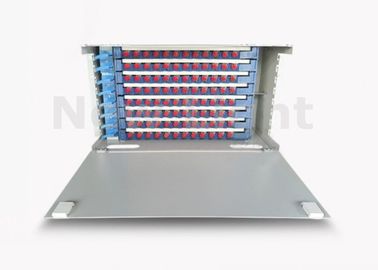

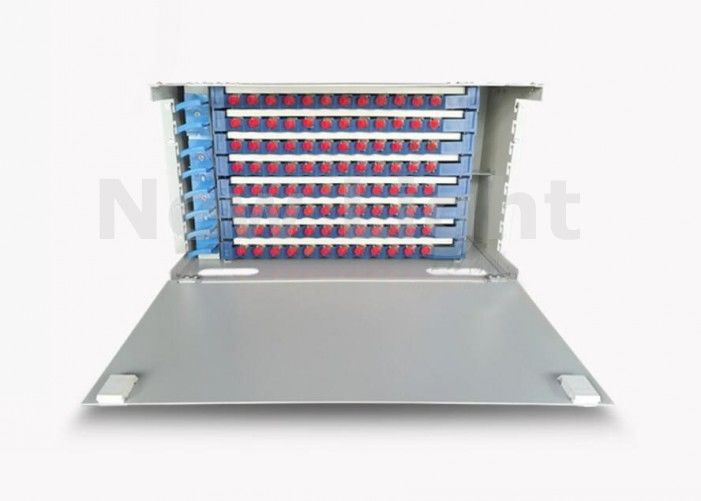

Optical network use 19 inch 96 core ODF optical fiber distribution frame 96 port fiber patch panel
Applications
· Optical network
· Local area networks
· Wide area networks
Features
·19''standard structure, rack mounting,
·Built-in slide rail for easy open and close
·Available for the installation of FC,SC,ST,LC adapters.
ODF Electricity Performance:
| Environment temperature | -25~55 degree |
| Atmosphere pressure | 70~106Kpa |
| Insulating resistance | >2x104 MΩ/500VDC |
| Relative humidity | <85%(when the temperature is below 30 ℃ |
| Voltage resistance strength | Under the effect of 15kv/DC/1min,non-puncture,and no arc-over |
Specifications
| Item | ODF-12 | ODF-24 | ODF-48 | ODF-72 | ODF-96 |
| Size(HxWxD)mm | 430x300x1U | 430x300x2U | 430x300x3U | 430x300x4U | 430x300x6U |
| Cable diameter(mm) | Ф5～Ф10 | ||||
| Adapter ports | 12 | 24 | 48 | 72 | 96 |
| Max capacity of splice | 12 | 24 | 48 | 72 | 96 |
| Suitable Adapter | FC,SC,ST,LC | ||||
| Materials | Stainless steel+ABS | ||||
| Weight(kg) | 1.5 | 5.5 | 8 | 9.8 | 15 |
* 1U=44.45mm
