Product Details:
|
| Name: | Fiber Optic Cable LC SC | Diameter: | 2.0mm |
|---|---|---|---|
| Model: | Single | Connector: | LC-SC |
| Color: | Yellow | Length: | 1 Meter |
| Highlight: | duplex fiber patch cord,sc sc fiber patch cord |
||

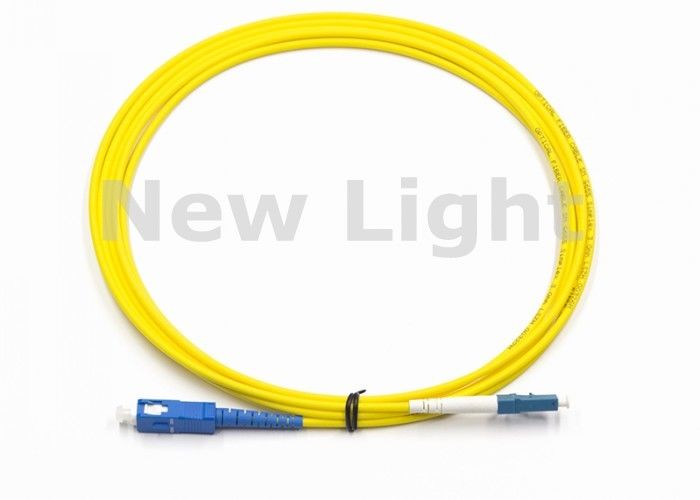

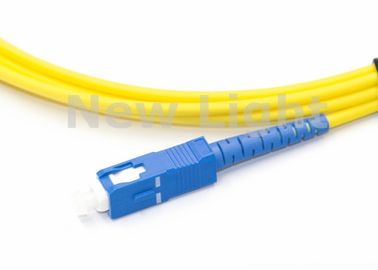

LC UPC to SC UPC Simplex 2.0mm PVC(OFNR) 9/125 Single Mode Optical Fiber Patch Cable
Description:
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
Characteristics:
1. Simplex and duplex connector available
2. High precision of mechanical dimensions.
3. Good exchange ability and good durability;
4. Low Insertion Loss, High temperature Stability and Good exchangeability.
5 Fan-out Available, Pigtail Available, Various
Boot(cable) Size Available
Specification:
| Connector | LC to SC | Jacket OD | 2.0mm |
| Fiber Mode | 9/125µm | Jacket Color | Yellow |
| Polish | UPC to UPC | Wavelength | 1310/1550nm |
| Fiber Type | Simplex | Jacket Material | PVC |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75℃ | Storage temperature | -45~85℃ |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G652D |
Application:
* Optical fiber communication system
* Optical fiber test equipment
* Optical fiber access network
* Optical fiber sensor
* Optical fiber CATV system
* Optical fiber data transmission
* Local area network
Features
* Good durability
* Good exchangeability
* High temperature stability
* Low insertion loss and back reflection loss
* Superior quality standard PC/UPC/APC Polishing
* Standard: Telcordia GR-326-CORE,TIA/EIA and IEC
